Hi/Lo Range Belt change (cont.)

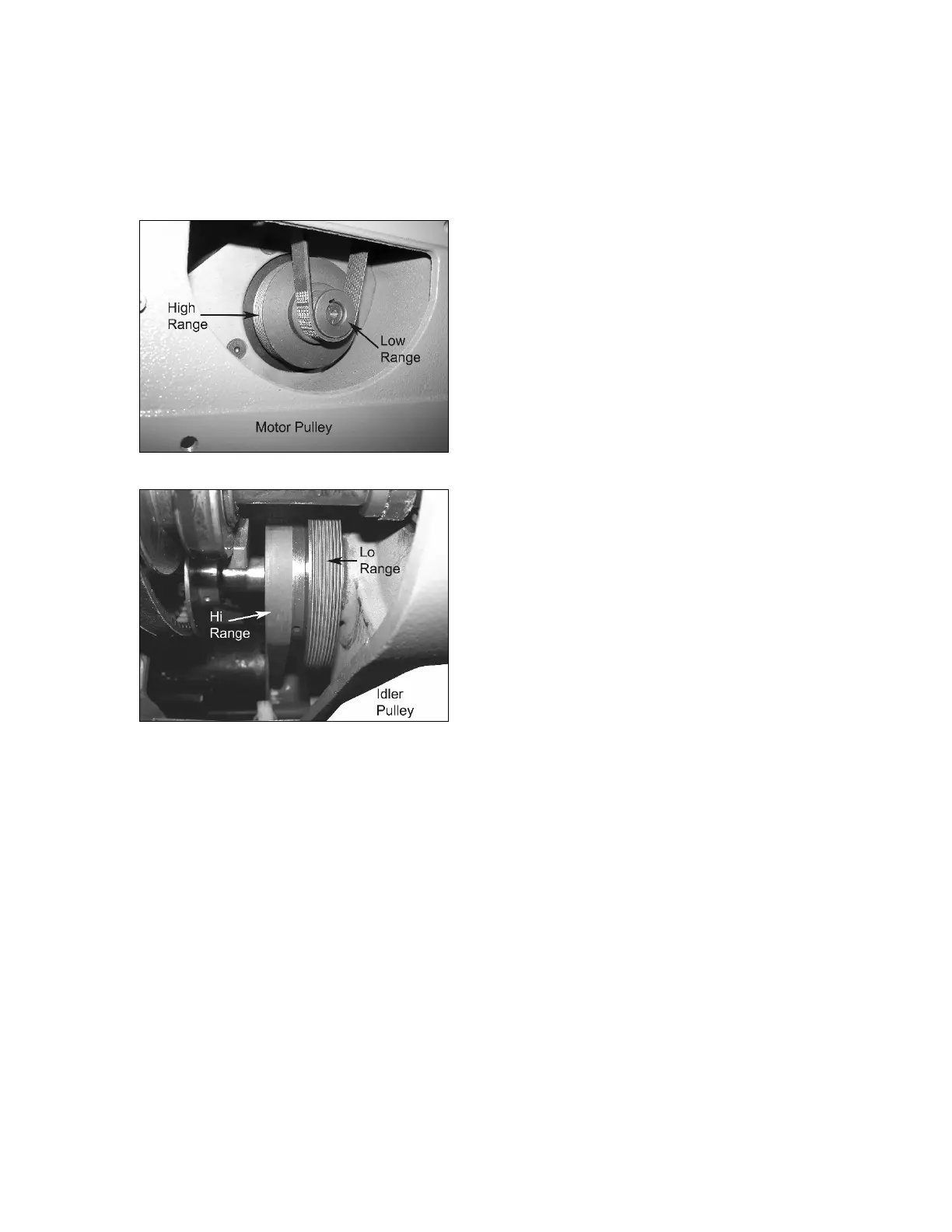

3. F
igure 23 shows the motor pulley and Figur
e
24 s
hows the idler pulley once the headstock
door is opened. At this point simply move the
poly-v belt to the desired step on each pulley.
F
igure 23
F
igure 24
4. Re-t
ension the belt making sure that the
grooves up the belts are seated properly an
d
al
igned with the corresponding grooves of
both pulleys. Use only light pressure on the
motor tension rod and then lock into place
with handle ‘A’ of Figure 22.
