Chapter 3 Preparation and Inspection
49
ULTRASONIC BRONCHOFIBERVIDEOSCOPE BF-UC180F
Inspection of the ultrasonic image with the compact
endoscopic ultrasound center
1.
Inspect the compact endoscopic ultrasound center as described in its
instruction manual.
2. Turn ON the compact endoscopic ultrasound center.
3. Press the “US/EXT” switch and make sure that the initial image is displayed
on the monitor (see Figure 3.26).

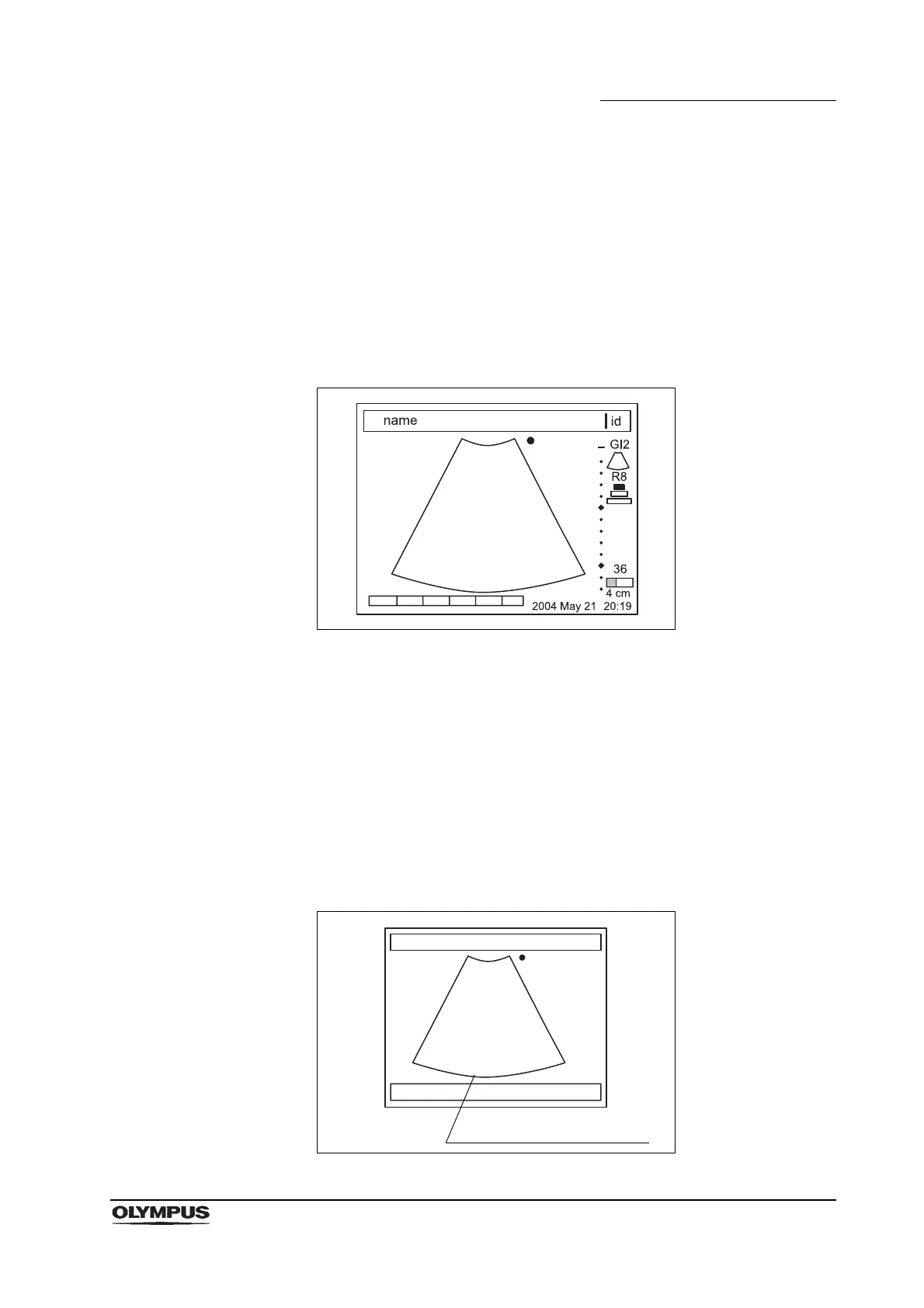

Figure 3.26
Inspection of the ultrasonic image with the diagnostic
ultrasound system
1.
Inspect the diagnostic ultrasound system as described in its instruction
manual.
2. Turn the diagnostic ultrasound system ON.
3. Confirm that the ultrasound image is visible on the diagnostic ultrasound
system (see Figure 3.27).
Figure 3.27
Ultrasound image (B-mode)
