Olympus BX51 - 1 NOMENCLATURE

4
1

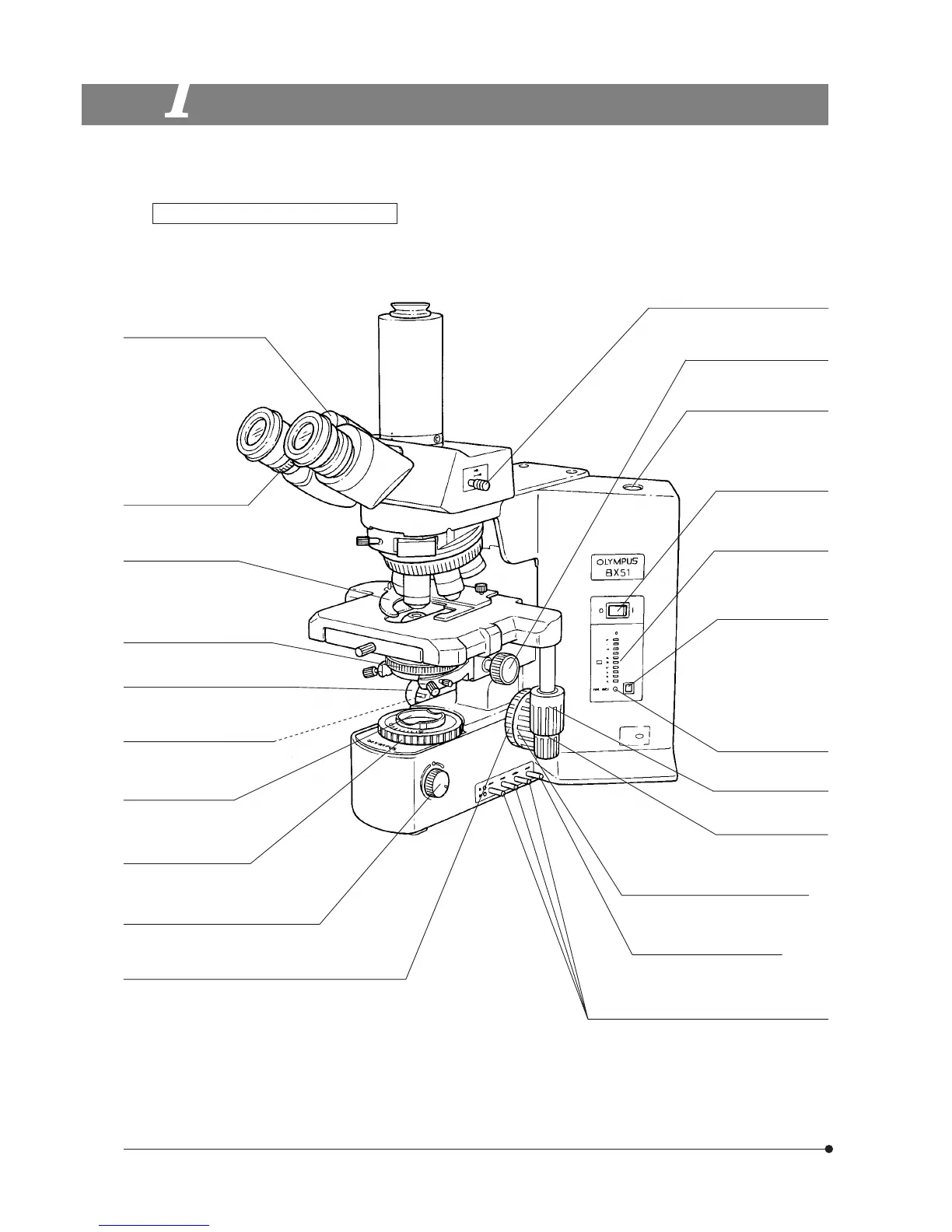

NOMENCLATURE
Interpupillary distance
adjustment scale (Page 15)
Diopter adjustment ring
(Page 15)
Slide holder (Page 12)
Aperture iris diaphragm ring
(Page 19)
X-axis knob (Page 13)
Y-axis knob (Page 13)
Pre-focusing Lever (Page 11)
Filter mount (Page 9)
Field iris diaphragm ring
(Page 18)
Allen screwdriver
Condenser height
adjustment knob (Page 18)
Voltage indicator LED
Main switch (Page 1)
Light intensity preset
switch (Page 8)
Light intensity preset
adjustment screw
(Page 8)
Fine adjustment knob (Page 11)
Coarse adjustment knob (Page 11)
Coarse adjustment tension adjustment ring (Page 11)
Brightness adjustment knob (Page 8)
(Lamp voltage adjustment knob)
(accommodation position)
(Detachable)
} If you have not yet assembled the microscope, read section 7, “ASSEMBLY” (pages 28 to 30).
Transmitted light specification model
BX51TF or microscope frame
Filter knobs (Page 9)
Optional filter knob (Page 9)
Light path selector knob (Page 16)
ND6, ND25 and LBD from the front to the rear
