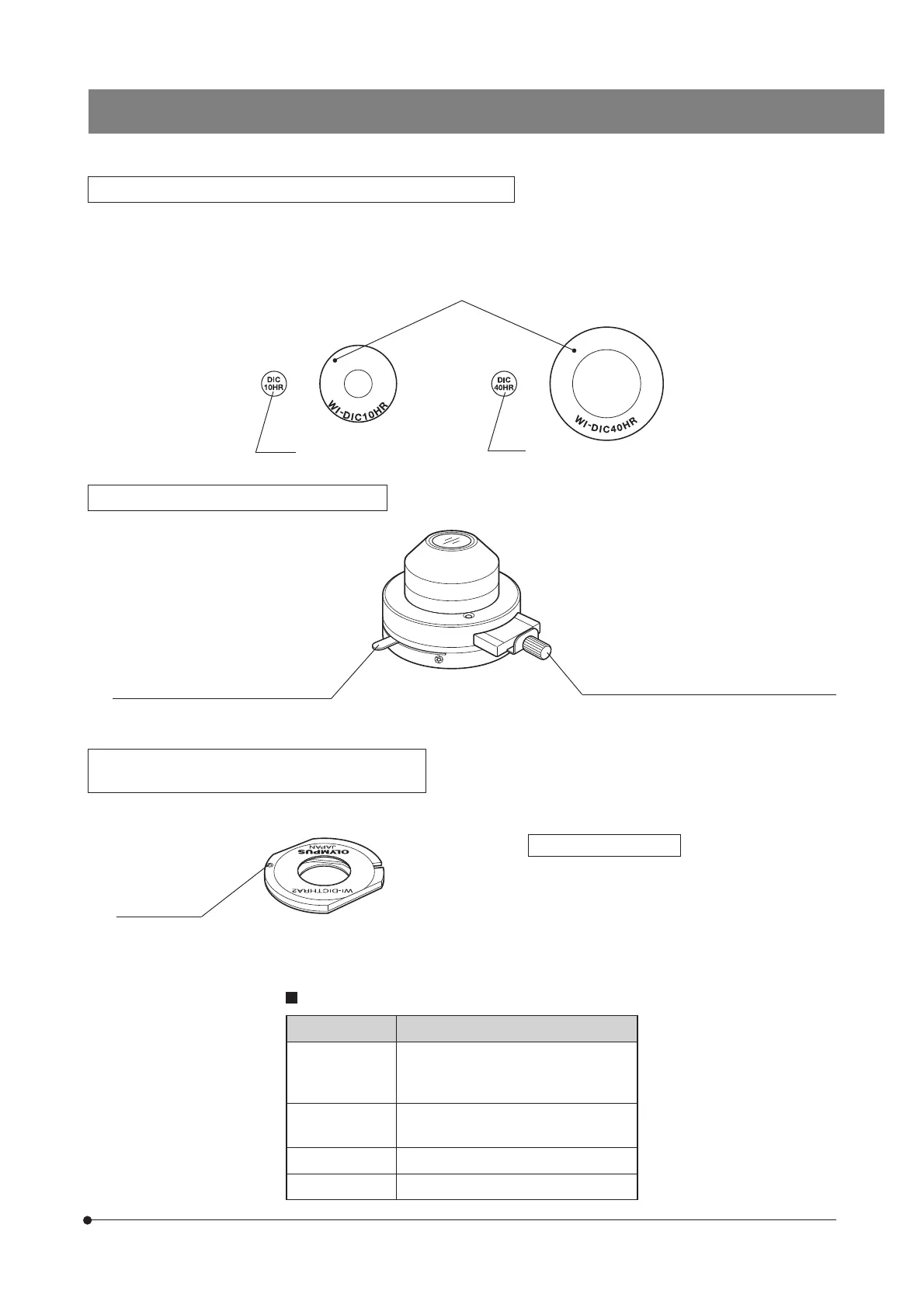

Differential Interference Contrast Prisms (For Condenser)
}The WI-UCD condenser accepts two large and two small DIC prisms while the WI-DICD condenser accepts one large or
small DIC prism.
When selecting the brightfield (BF) light path using the WI-UCD, leave one DIC prism (large) mount position empty.
· WI-DIC10HR
· WI-DIC20HR
Long-WD Oblique Condenser WI-OBCD
Aperture iris diaphragm lever (Page 17)
High-Resolution DIC Prism A WI-DICTHRA2
DIC Prism WI-DICT2
}This prism can be mounted in the DIC prism position
of the WI-SNPXLU2 or WI-SRE3.
Applicable condensers
WI-DICTHRA2: WI-UCD, WI-DICD
WI-DICT2: U-UCD8
Positioning pin
Condensers and Applicable Objective Magnifications
Condenser
Applicable Objective Magnification
WI-UCD
WI-DICD
WI-OBCD
5X or more
U-UCD8
U-SC3
2X or more
U-AAC 10X or more
U-AC2 5X or more
· WI-DIC40HR
· WI-DIC60HR
· U-LDPXLU20HR
Index
Positioning indices
Index
Oblique iris insertion/removal knob (Page 17)
To Next Page
