5

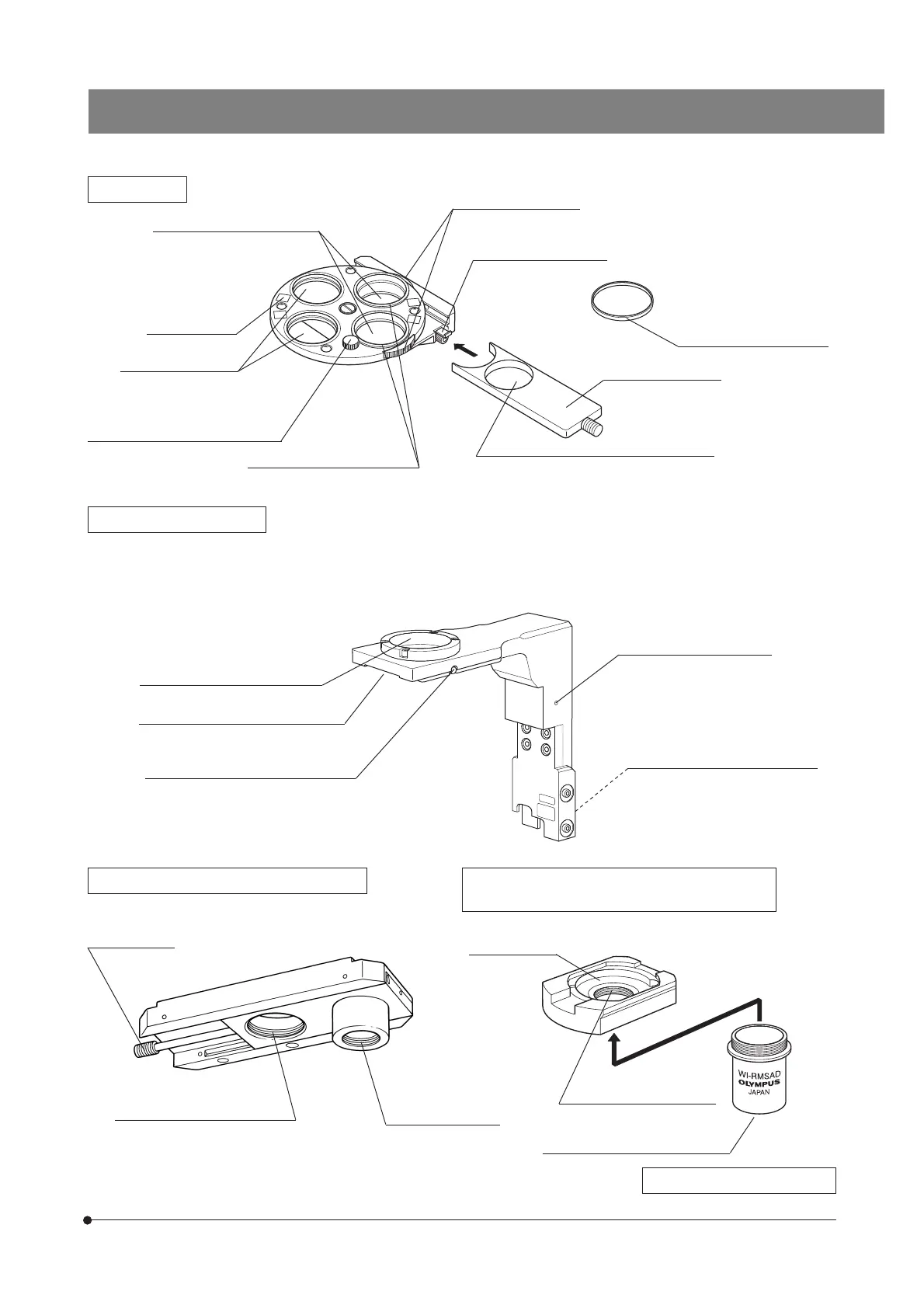

BX51WI
Filter Turret
* Accepts the combination of a
polarizer push ring and a 32 mm
filter. The thickness should be no
more than 6 mm.
Revolving Arm WI-NPA
# Note that the revolving arm can be mounted only before the reflected light illuminator is mounted or before the
transmitted light arm and IX-SVL2 stage are mounted (page 38).
}This revolving arm accepts the U-SLRE, WI-SNPXLU2 or WI-SRE3 revolving nosepiece.
Light shield tube retaining screw
Sliding Revolving Nosepiece U-SLRE
Switching lever
Single-Position Revolving Nosepiece XLU
WI-SNPXLU2
DIC mount hole
(Page 20)
RMS Adapter WI-RMSAD
Indication label
attaching frame
Filter positions
Accepts 32 mm filters
with thickness of no
more than 6 mm.
Polarizer clamping knob (Page 19)
Polarizer rotating dials
(Page 23)
Polarizer positions (Page 19)*
Accepts the 32PO or 32POIR.
Slider insertion/removal
stopper (Page 10)
Filter frame reinforcing ring
(Page 38)
Filter slider (Page 10)
IR filter insertion position
Accepts the 32BP775, 32IR900 or a 32 mm
filter with thickness of no more than 5.3 mm.
Revolving nosepiece mount dovetail
Revolving nosepiece clamping screw
Grounding screw hole (M3)
Microscope frame mount dovetail
XLFluor objective mount screw
M 34 mm, pitch 1 mm
UIS2 (UIS) objective
mount screw
XLU objective mount screw
M 25 mm, pitch 0.75 mm
UIS2 (UIS) objective mount screw
Polarizer push ring (Page 10)
Made of white plastic
