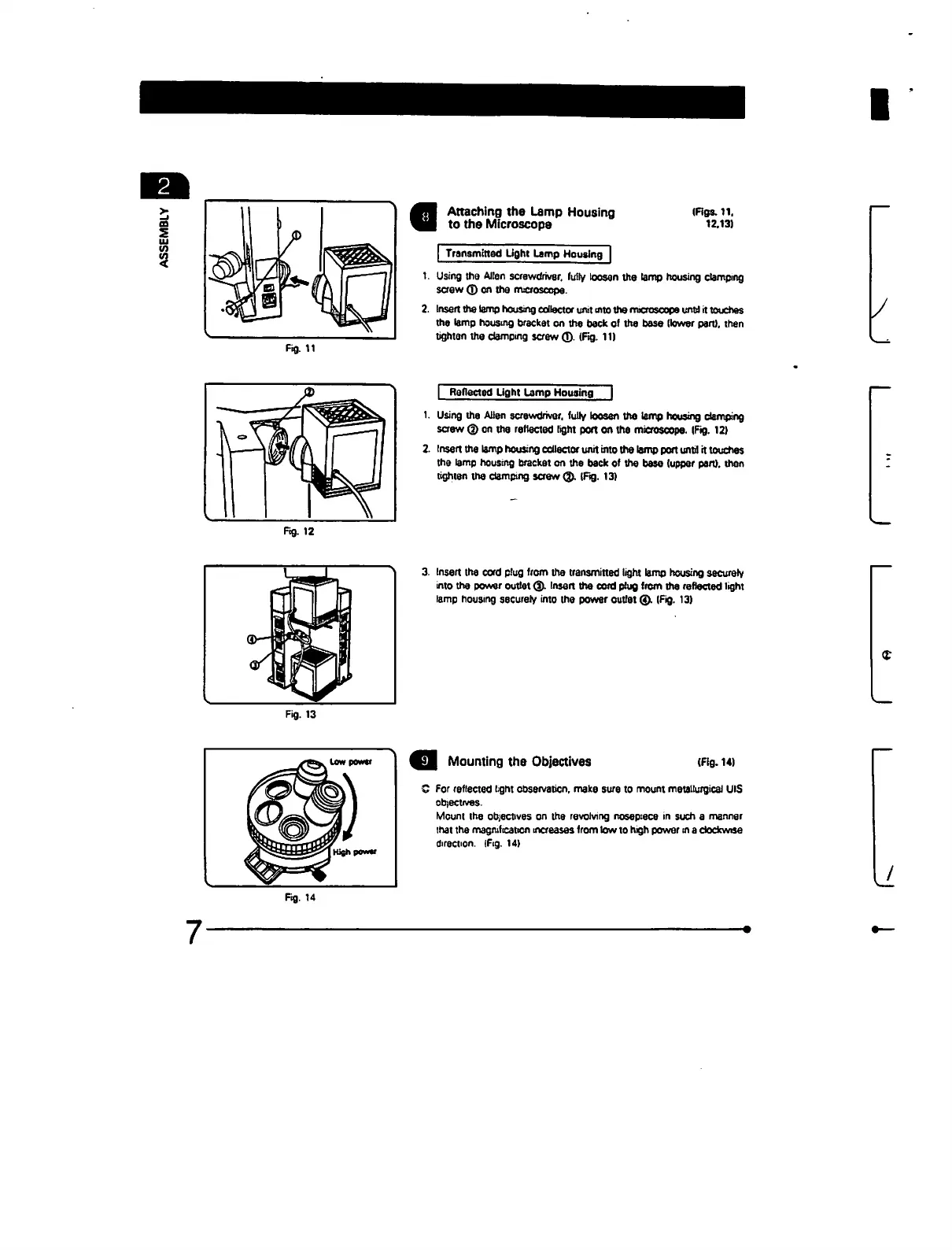

Attaching the Lamp Housing
to the Microscope
| Transmitted Light Lamp Homing |
(Figs. 11.
12.13)
fig, 11
1. Using the Allen screwdriver, fully loosen the lamp housing clamping
screw © on the microscope.
2. Insert the lamp housing eoUactor unit mto the microscope unU it touches
tha lamp housing bracket on the back of tha base (lower part), then
tighten the clamping screw © (Fig. 11)
Rg. 12
| Reflected Light Lamp Homing |
1. Using the Allen screwdriver, fully loosen the lamp housing damping
screw © on the reflected Tight port on the microscope. (Fig. 12)
2. Insert the lamp housing collector unit into the lamp port unfl it touches
the lamp housing bracket on the back of the base (upper pan), than
tighten the clamping screw ®. (Fig. 13)
3. Insert the cord plug from the transmitted light lamp housing securely
into tha power outlet ©. Insert the cord plug from tha reflected light
lamp housing securely into the power outlet ©. IFig. 13)
Fig. 13
Fig. 14
Mounting the Objectives (Fig. 14)
C For reflected tght observation, make sure to mount metallurgical UIS
objectives.
Mount the objectives on the revolving nosepiece in such a manner
lhat the magnification increases from tow to high power in a clockwise
direction. (Fig. 14)
