BX60

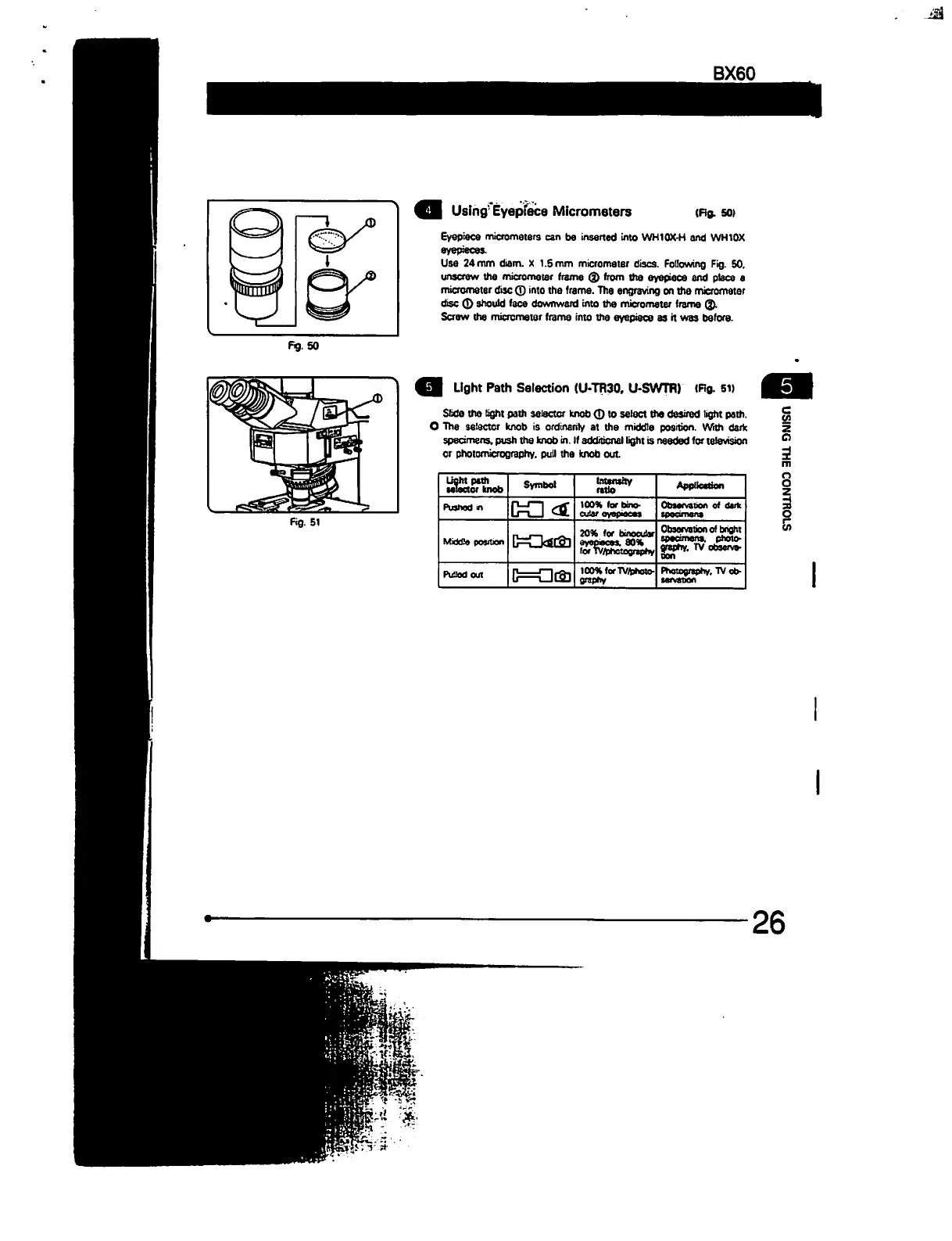

Using' Eyepiece Micrometers <Rg. so)
Eyepiece micrometers can be inserted into WH10X-H and WH10X
Use 24 mm diam. X 1.5 mm micrometer discs. Following Fig. SO.
unscrew the micrometer frame © from the eyepiece and place a
micrometer disc © into the frame. The engraving on the micrometer
disc © should face downward into the micrometer frame ®.
Screw the micrometer frame into the eyepiece as it was before.
Light Path Selection (U-TR30, U-SWTR) (Fig. 51)
SWa the light path selector knob © to select the desired light path.
O The selector knob is ordinarily at the middle position. With dark
specimens, push the knob in. If additional light is needed for television
or photomicrography, pull the knob out
lioM pith
•ahcter knob
Pushod «
MttdlO position
Puttod out
Symbol
Intensity
ratio
100* forbino-
i
20% for binocular
eyop«M. 80%
for TV/bhatogrept-y
10D%forTVA)hoto-
grapny
Application
ObMivstion of dtik
Obsarvstion of bnght
iionSa photo*
. IV obMivt-
, TV ob*
26
