8

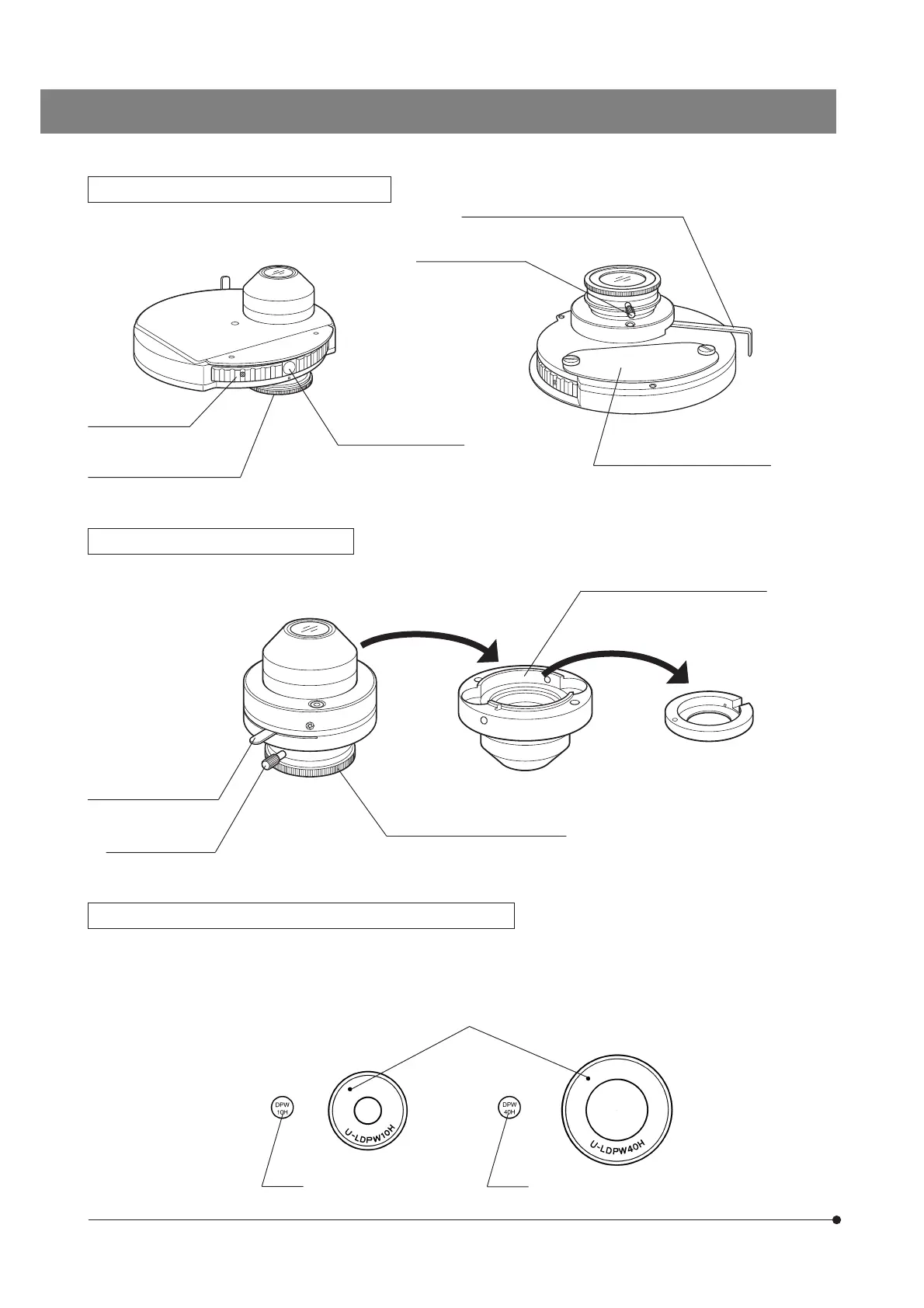

Long-WD Universal Condenser WI-UCD
Turret (4 positions)
Aperture iris diaphragm lever (Page 22)
Long-WD DIC Condenser WI-DICD
Aperture iris diaphragm
lever (Page 22)
Differential Interference Contrast Prisms (For Condenser)
}The WI-UCD condenser accepts two large and two small DIC prisms while the WI-DICD condenser accepts one large or
small DIC prism.
When selecting the brightfield (BF) light path using the WI-UCD, leave one DIC prism (large) mount position empty.
· U-LDPW10H
· U-LDPW20H
Quarter-wave plate rotation
ring (Page 28)
Optical element index
mount (Page 26)
Quarter-wave plate
clamping knob
DIC prism replacement cover
Quarter-wave plate
clamping knob
Quarter-wave plate rotation ring
(Page 28)
DIC prism (Large) mount position
DIC prism (Small) adapter
Index
Positioning indices
· U-LDPW40H
· U-LDPW60H
· U-LDPXLU20HR
Index
