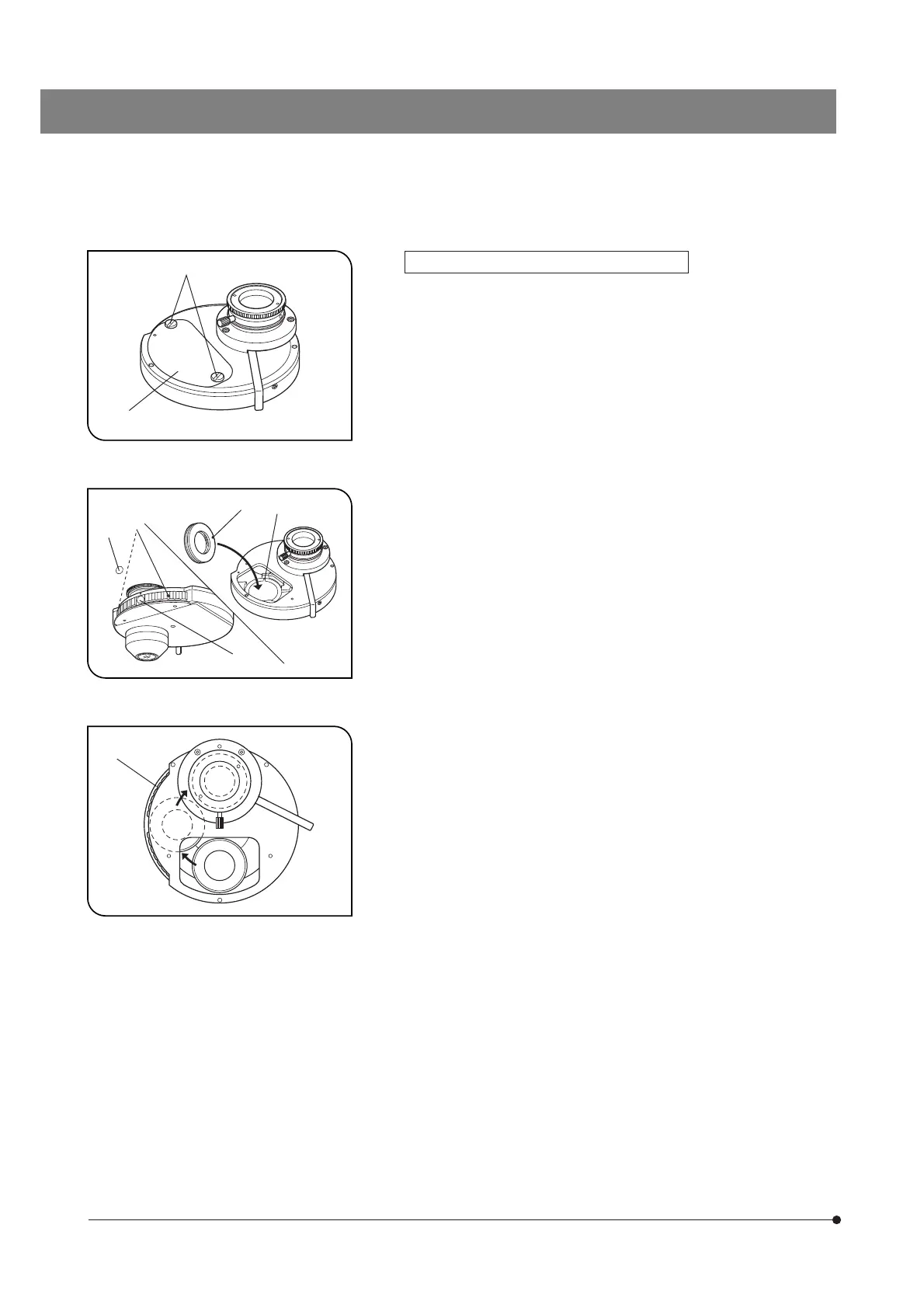

Fig. 35
Fig. 36
Fig. 37
With the WI-UCD Condenser (Figs. 35 - 37)
}When selecting the brightfield (BF) light path using the WI-UCD, leave
one DIC prism (large) mount position empty.
1. Remove the WI-UCD condenser from the microscope frame.
2. Remove the condenser cover 1 by loosening the retaining screws 2
using a coin, etc.
3. Attach the suitable DIC prism for the objective in use as described below.
· Using the dedicated knob provided with the condenser, loosen the two
DIC prism clamping screws 3 until the rotatable limits.
· Rotate the turret by 90° counterclockwise, and drop in the DIC prism by
aligning its positioning pin 5 with the positioning groove 6 in the hole of
the turret 4 (Fig. 36).
# Be careful not to touch the prism inside the frame.
A. Rotate the turret 4 by 90° clockwise (Fig. 37) and tighten the two DIC
prism clamping screws 3 uniformly using the dedicated knob provided
with the condenser. (Figs. 36 & 37)
# Do not tighten the screws too much, or the prism frame may be
deformed.
B. Rotate the turret 4 by 90° clockwise (Fig. 37), and attach the index sticker
7 provided with the DIC prism onto the side 8 of the condenser turret 4
so that the index sticker is upside down. (Figs. 36 & 37)
4. After attaching all of the required DIC prisms, attach the cover 1 and
tighten the retaining screws 2. (Fig. 35)
5. Attach the condenser back onto the microscope frame.
