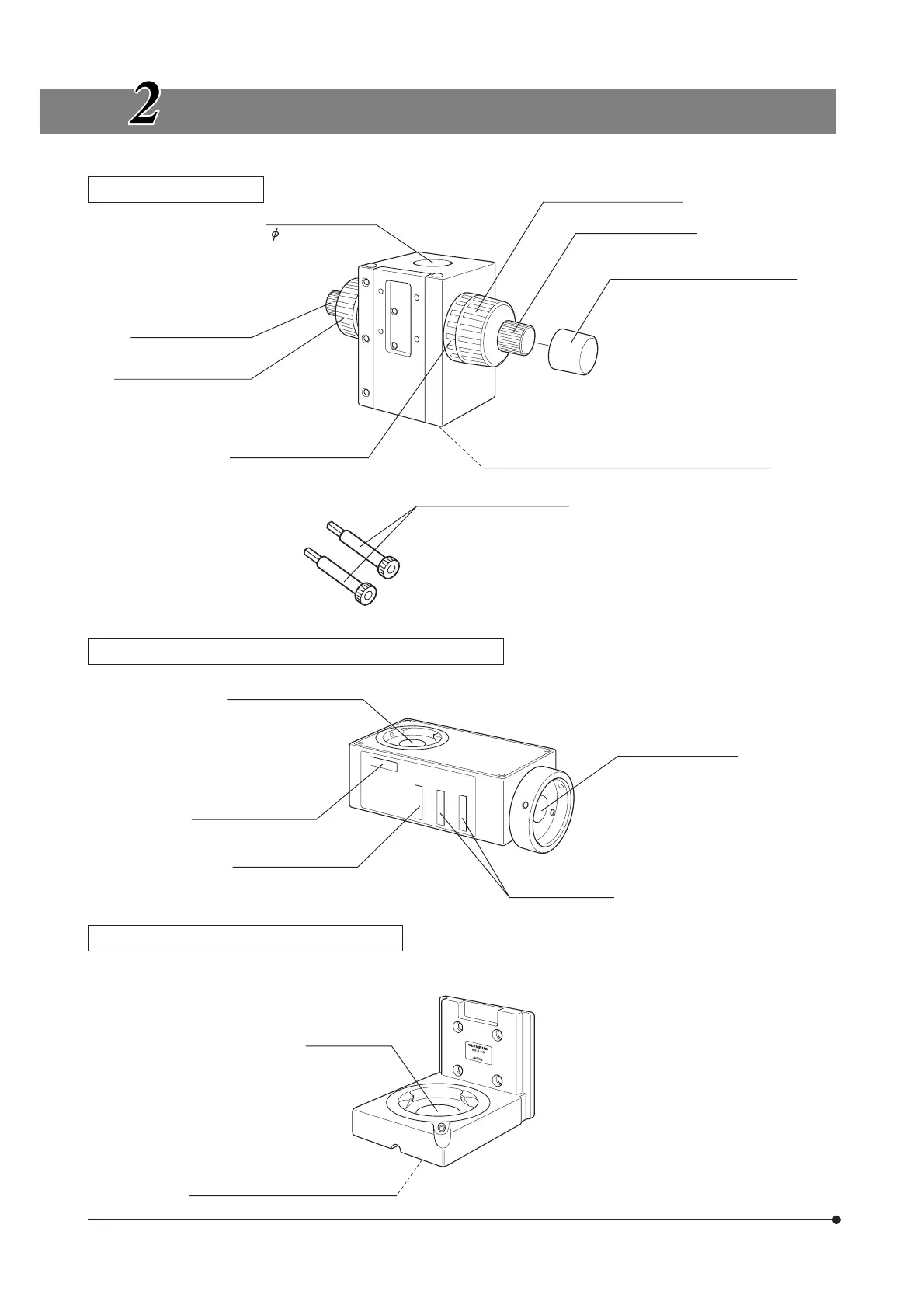

NOMENCLATURE
Focusing Unit BXFM-F
Compact Reflected Light Brightfield Illuminator U-KMAS
Observation tube mount
Illuminator Mounting Holder S BXFM-ILHS
}The U-KMAS reflected light illuminator can be mounted.
U-KMAS mount
* Used when the BX-RLA2 or BX-URA2 illuminator is
combined with the focusing unit. (P. 27)
Fine adjustment knob
Pillar mounting hole
Revolving nosepiece mount dovetail
Analyzer insertion slot
Polarizer insertion slot
Lamp housing mount
Filter insertion slot
Coarse adjustment knob
Coarse adjustment knob
tension adjustment ring
Coarse adjustment knob
Fine adjustment knob
Rubber fine adjustment knob cap
BXFM-ILHSPU counter spring mounting screw hole
Auxiliary centering screws*
( 32 mm)
