CK30/CK40
16

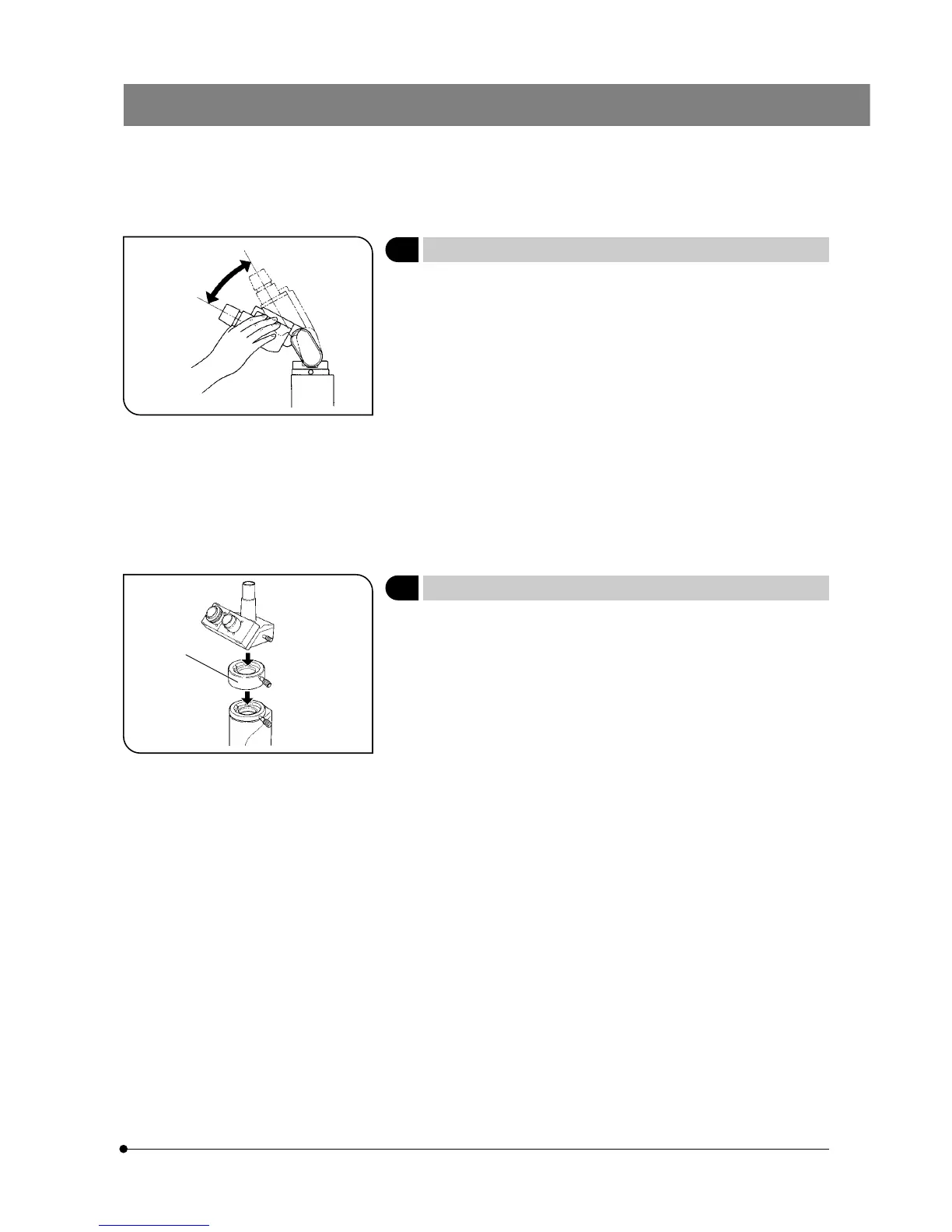

4 Adjusting the Tilt (CK40-TBI Only)
(Fig. 28)
}The height and angle of the binocular tube can be adjusted to any
position, giving you more freedom to find a comfortable observation
posture.
Hold the binocular assembly with both hands and move it up or
down until the tube is tilted in a way that you find comfortable and
facilitates easy observation.
# Do not attempt to force the binocular assembly past the upper or
lower stop positions. Applying excessive force could destroy the
mechanism.
# When using the CK40-TBI tilting binocular tube, the CK40-EPA eye-
point adjuster cannot be used.
# The connectable eyepiece is the NCWHK10X only. Combination
with any other eyepiece will result in insufficient illumination at the
periphery of the viewing field.
5 Using the Eyepoint Adjuster (CK40 Only)
(Fig. 29)
#The CK40-TBI tilting binocular tube cannot be used with the
CK40-EPA. Only the CK40-EPA eyepoint adjuster can be used as
an intermediate observation tube.
}Mount the CK40-EPA eyepoint adjuster @ between the observation tube
and mount opening on the microscope body to raise the eyepoint by 32
mm. The observation tube magnification is set at 1X by the built-in cor-
rection lens; therefore, no magnification correction is required.
#The eyepoint adjuster cannot be used for relief phase contrast
observation.
Fig. 28
Fig. 29
30°– 60°
@
