4 Assembly
4.1 Attaching the camera

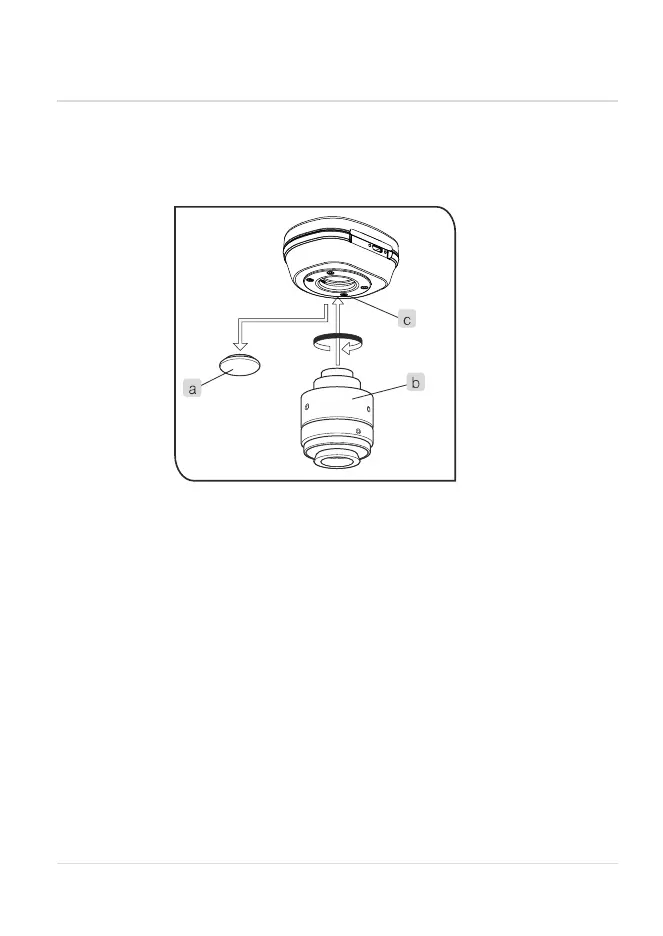

1. Remove the cap of the C-mount port (a).
2. Screw the C-mount camera adapter (b) into the C-mount
thread (c) at the bottom of the camera head.
3. Attach the C-mount camera adapter to the camera port of
the microscope.
Checking the camera’s orientation
If the camera is not attached inthe correct orientation, the camera
image does not matchthe image visible through the eyepieces.
1. After attaching the camera, compare the eyepiece image
with the live image on the monitor.
2. Rotate the camera adapter so that the alignment of these
images matches.
4 Assembly
17
