Olympus E-M5 User Manual

10 EN
Basic guide
Names of parts and functions
Names of parts

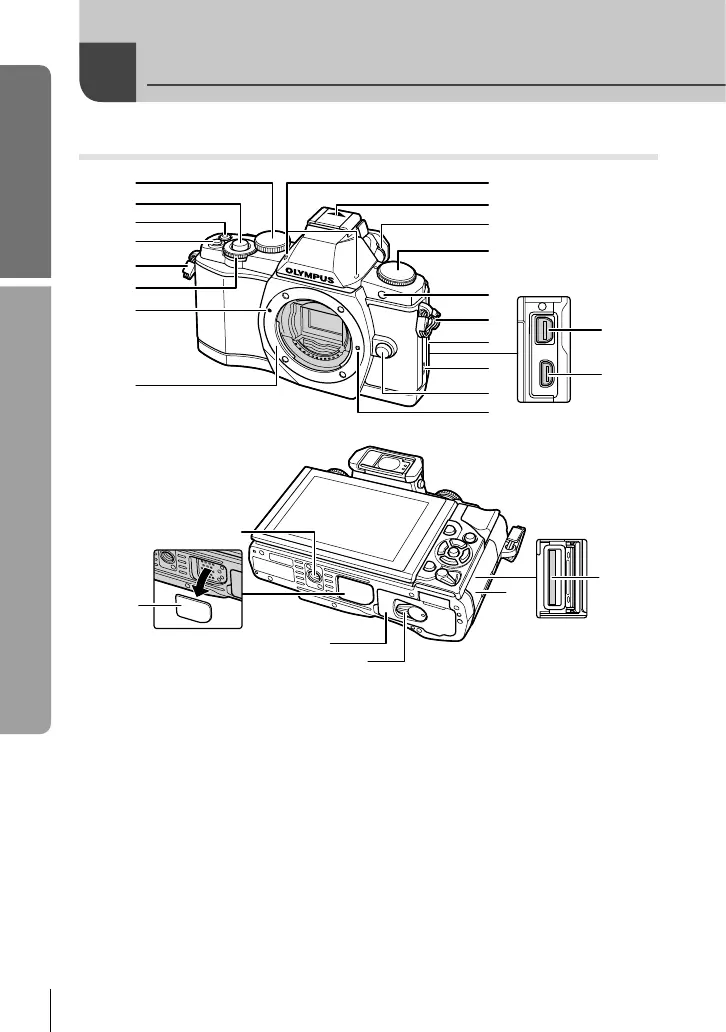

Camera
1
2
3
5
6
4
8
7
g
f
e
d
5
h
i
c
9
b
a
0
j
l
m
o
n
k
Remove when using the
HLD-6 battery holder.
1 Main dial* (o) ...................P. 16, 57 – 59
2 Shutter button ...............P. 13, 14, 44, 96
3 R (Movie) button....P. 13, 15, 67, 69, 93
4 Fn2 button ..........................P. 25, 69, 93
5 Strap eyelet.......................................P. 3
6 Sub dial* (r) .....................P. 16, 57 – 59
7 Lens attachment mark ......................P. 6
8 Mount (Remove the body cap before
attaching the lens.)
9 Stereo microphone ...................P. 68, 73
0 Hot shoe cover
a Diopter adjustment dial .....................P. 8
b Mode dial ....................................P. 8, 12
c Self-timer lamp/
AF illuminator ..................................P. 56
d Connector cover
e Speaker
f Lens release button ..........................P. 6
g Lens lock pin
h Multi-connector ...................P. 74, 78, 82
i HDMI micro connector (type D) ......P. 74
j Tripod socket
k PBH cover
l Battery compartment cover...............P. 4
m Battery compartment lock .................P. 4
n Card slot cover..................................P. 5
o Card slot ...........................................P. 5
* In this manual, the o and r icons
represent operations performed using
the main and sub dials.

Olympus E-M5 Specifications

General

Megapixel	16.1 MP
Camera type	MILC Body
Sensor type	Live MOS
Image stabilizer	Yes
Total megapixels	17.2 MP
Image sensor size	4/3 \
Image formats supported	JPG
Supported aspect ratios	3:2, 3:4, 4:3, 16:9
Maximum image resolution	4608 x 3456 pixels
Image sensor size (W x H)	17.3 x 13 mm
Still image resolution(s)	1024 x 768, 2560 x 1920, 4608 x 3456
Optical zoom	- x
Focal length range	- mm
Minimum aperture number	-
Focus adjustment	Auto/Manual
Auto Focus (AF) points	35
Auto focusing (AF) modes	Continuous Auto Focus, Contrast Detection Auto Focus, Single Auto Focus, Tracking Auto Focus
Auto Focus (AF) points selection	Auto, Manual
Light metering	Centre-weighted, Evaluative (Multi-pattern), Spot
ISO sensitivity	200, 400, 800, 1600, 3200, 6400, 12800, 25600
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
ISO sensitivity (max)	25600
ISO sensitivity (min)	200
Light exposure correction	± 3EV (1/3EV step)
Camera shutter type	Electronic
Fastest camera shutter speed	1/4000 s
Slowest camera shutter speed	60 s
Flash modes	Fill-in, Flash off, Red-eye reduction, Slow synchronization
Flash guide number	10 m
Flash exposure correction	±3EV (1/2, 1/3, 1 EV step)
Power source type	Battery
Video resolutions	640 x 480, 1280 x 720, 1920 x 1080 pixels
Motion JPEG frame rate	30 fps
Video formats supported	AVI, H.264, M-JPEG, MOV, MPEG4
Maximum video resolution	1920 x 1080 pixels
Analog signal format system	NTSC, PAL
Audio formats supported	PCM
Internal memory	- MB
Compatible memory cards	SD, SDHC, SDXC
Field of view	100 %
Display diagonal	3 \
Display aspect ratio	3:2
Display resolution (numeric)	610000 pixels
USB version	2.0
Product color	Black
Scene modes	Beach, Candlelight, Children, Close-up (macro), Documents, Fireworks, Night, Panorama, Portrait, Snow, Sports, Sunset, Underwater, Landscape (scenery)
Image editing	Resizing, Trimming
Photo effects	Black&White, Sepia
White balance	Auto, Flash, Fluorescent, Manual, Shade, Sunny, Tungsten, Underwater
Shooting modes	Auto, Manual, Movie, Program
Camera playback	Movie, Single image, Slide show
Self-timer delay	2, 12 s
Camera file system	Exif 2.2
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, LIT, NOR, POL, POR, RUS, SER, SLK, SLV, SWE, TUR, UKR
Battery life (CIPA standard)	330 shots
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	41.9 mm
Width	121 mm
Height	89.6 mm
Weight	373 g
Weight (including battery)	425 g
