About the placement of the electronic flash
The remote control signal is sent using the built-in flash of the camera
so the maximum range for the placement of the electronic flash will
vary depending on the camera. For details, refer to the camera’s
instruction manual.
1 Attach the flash stand to the camera.
 Slide the electronic flash all the way into
the flash stand until it stops with a click.
 If the lock pin is protruding, pull it back
inside by turning the lock ring as far as it
will go in the direction opposite to LOCK.
 You can also fix the flash stand on a tripod.
2 Place the electronic flash so that the remote sensor is facing the
camera, and turn the light-emitting section in the direction of the
subject you want to shoot.

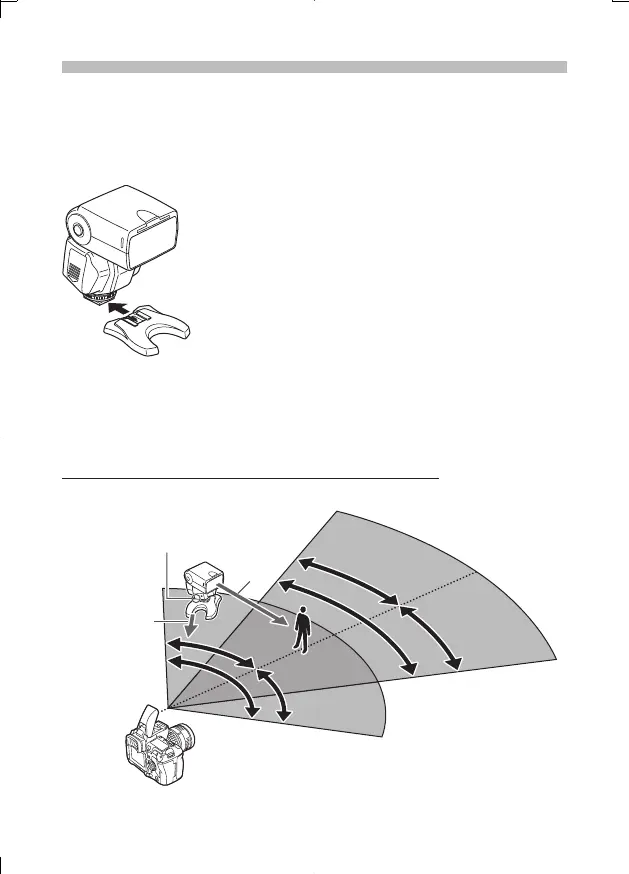

Placement examples: Placement of a single flash
Remote sensor
Direction of
the camera
Direction
of the flash
emission
