6-1 Scaler measurement function
1
About scaler measurement
Scaler measurement measures the length of an object using the reference length value that is
preset according to a known length inside the observation image.
NOTE
In other words, an accurate measurement cannot be obtained if the reference length is
incorrect. Also, the measurement is made based on the assumption that the reference
object and the object to be measured are on the same vertical plane as the optical axis.
2

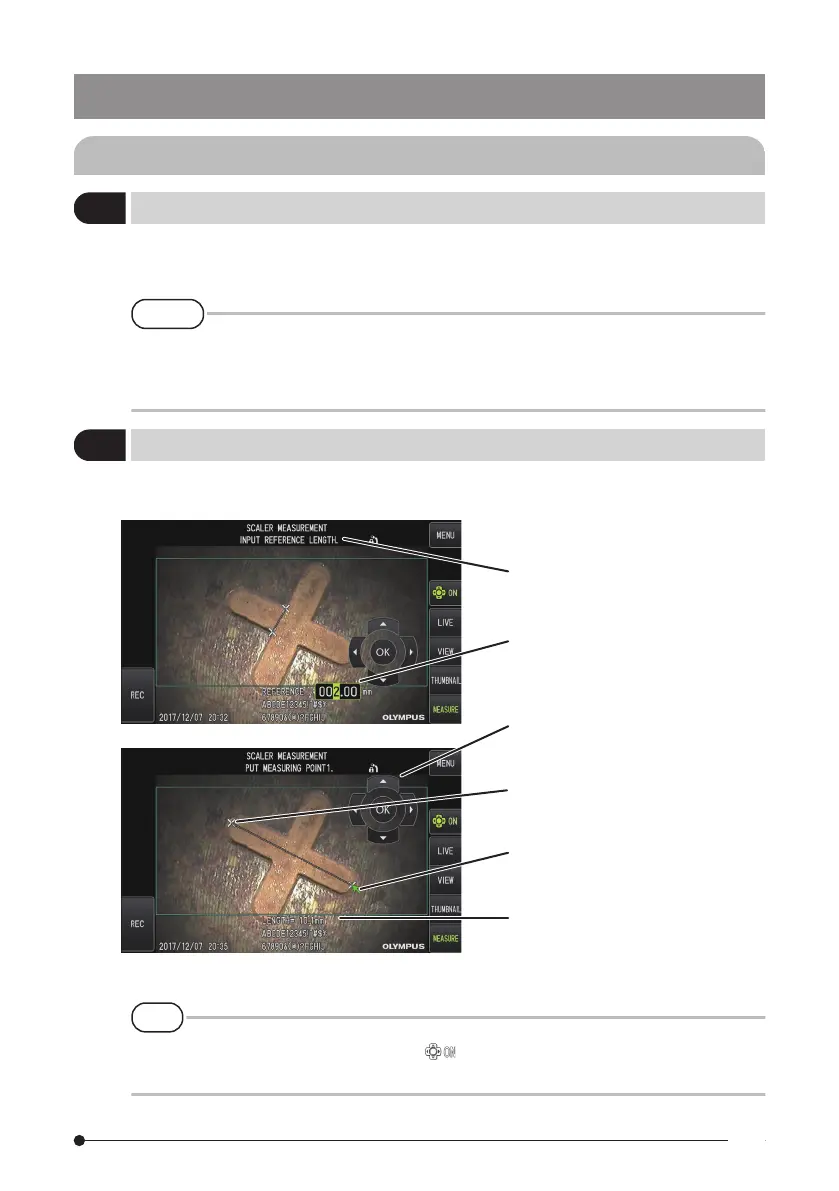

Scaler measurement screen
■ Explanation of the scaler measurement screen
Measured value
Displays the measurement for
the entered points.
Reference length
For entering the dimensions
of the parts where the length
measurement is known.
Point
Reference point or measuring
point that has been entered.
CURSOR/OK button
Operate the cursor and enter the
reference length on the screen.
Cursor
For specifying the reference
point or measuring point.
Message box
Displays information related to
operation.
TIP
Tapping the [CURSOR/OK ON] button ( ) each time switches the [CURSOR/OK] button
repeatedly in the order of displayed, move, hidden.
IPLEX G Lite
66
66
6
6
6
6
6 Measurement functions
65
