9
7
Selecting the Light Path (SZ61TR)
(Fig. 11)
# Always move the light path selector lever @ until it hits the stop
position.
1. For observation through the binocular light path, push in the light path
selector lever @ till the stop position. (Fig. 11)
In this position, the whole light (100%) goes to the binocular tube.
2. For the TV camera light path, pull out the light path selector lever @ till
the stop position. (Fig. 11)
In this position, a mirror is inserted into the light path so the whole light
for the right eyepiece sleeve (100%) is sent to the TV light path.
Fig. 11
@
}All of the auxiliary objectives are provided with the ESD protection
performance.
#The 0.3X and 0.4X auxiliary objectives cannot be used in combina-
tion with the standard base because their working distances are
too long.
# The 0.5X auxiliary objective (110AL0.5X-2) also has a long working
distance, but this can be combined with the standard base pro-
vided that the auxiliary sleeve (SZ2-ET) is used. In this case, how-
ever, the microscope becomes unstable and needs care against
toppling it down.
· Screw the auxiliary objective firmly into the auxiliary objective mount thread
at the bottom of the microscope body.
6

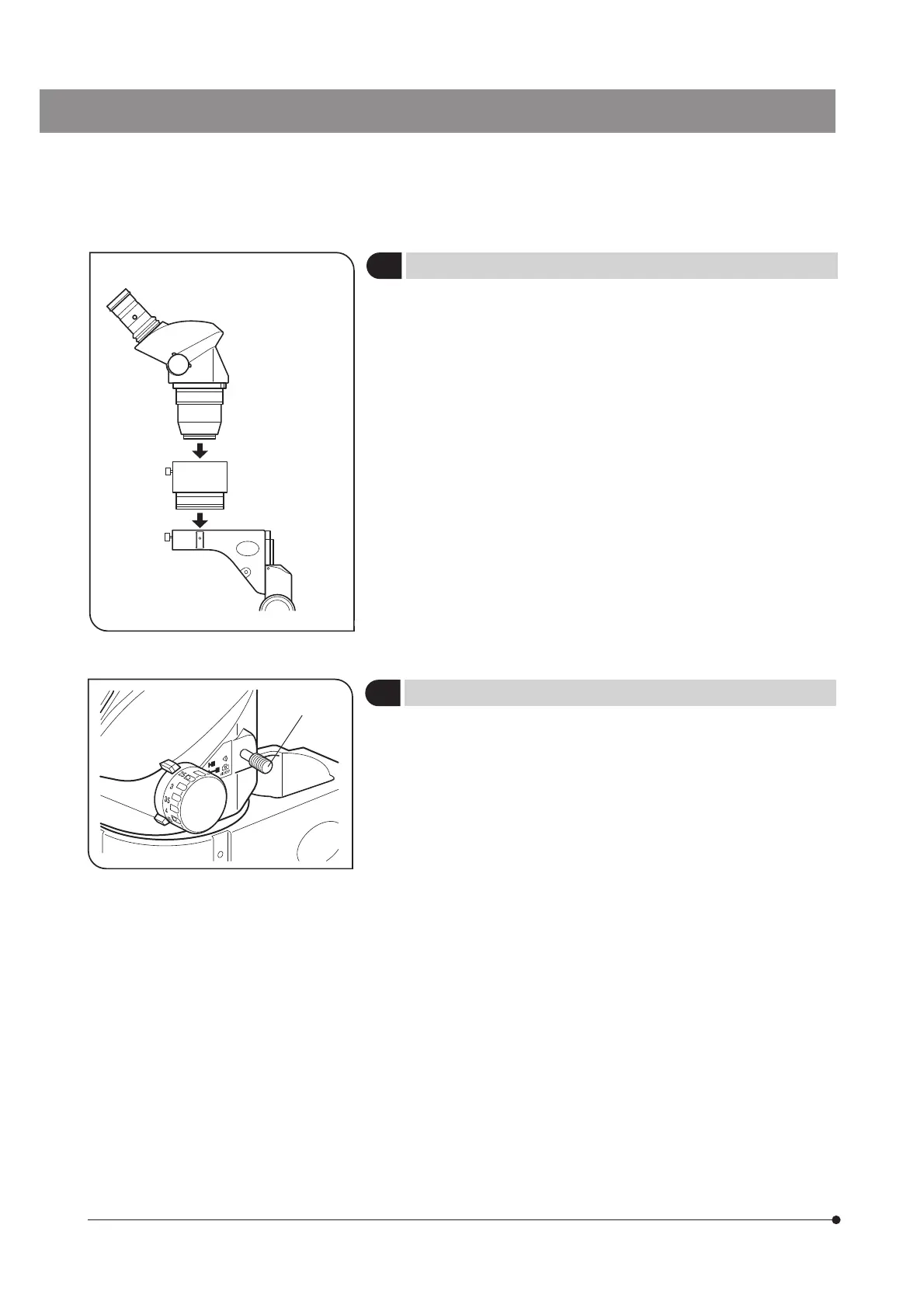

Using the Auxiliary Objectives
(Fig. 10)
Microscope body
Auxiliary sleeve
SZ2-ET
Standard
base
Fig. 10
