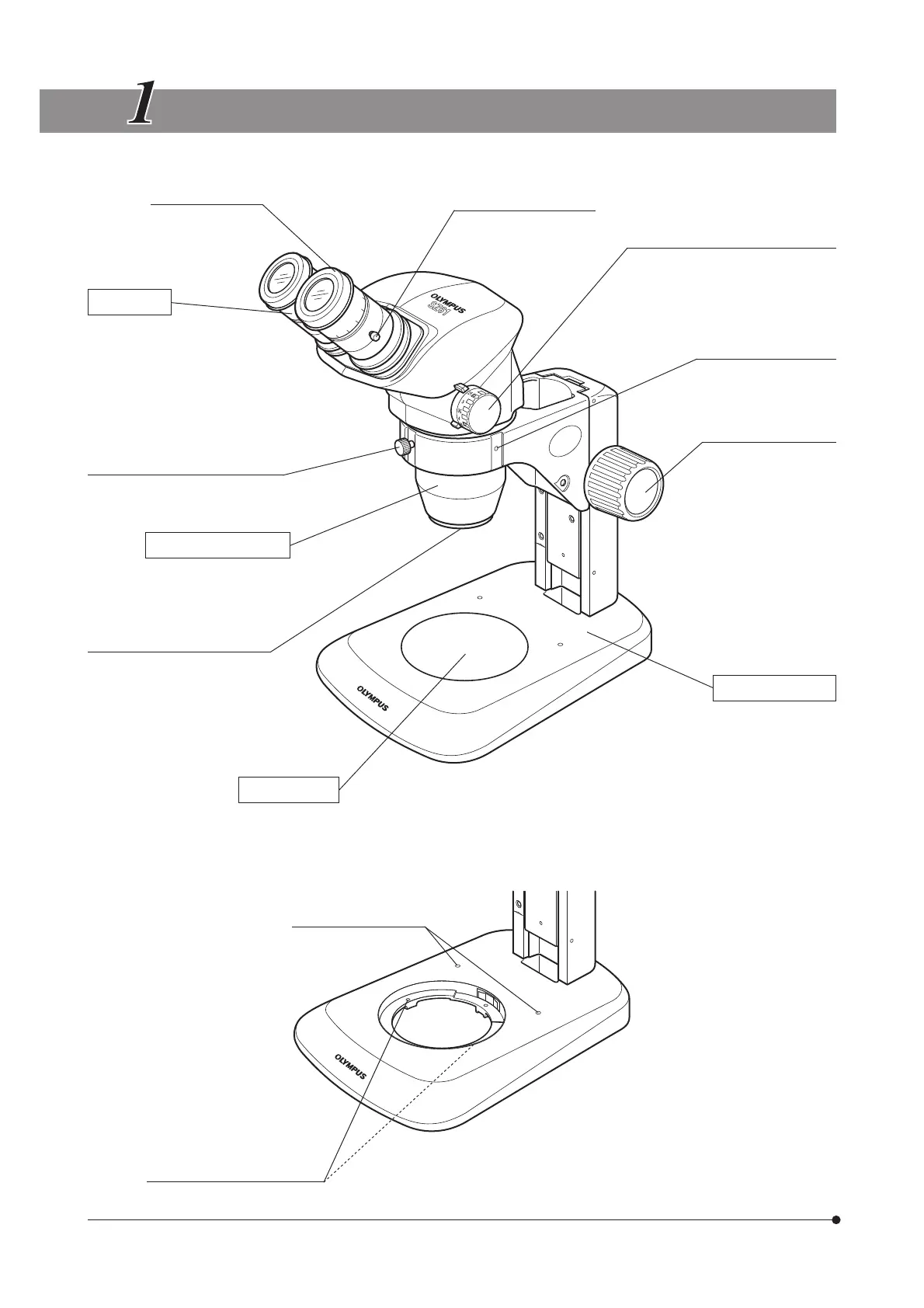

MODULES AND NOMENCLATURE
Eye shade (Page 8)
Eyepiece
· WHSZ10X
· WHSZ10X-H
· WHSZ15X-H
· WHSZ20X
· WHSZ20X-H
· WHSZ30X-H
Body clamping knob
(Threaded for accessory mounting)
Microscope Body
· SZ61 · SZ51
· SZ61-60 · SZ51-60
· SZ61TR
Auxiliary objective mount thread
Optional auxiliary objectives
· 110ALK0.3X · 110AL0.75X-2
· 110ALK0.4X · 110AL1.5X
· 110AL0.5X-2 · 110AL2X-2
· 110AL0.62X
Stage Plate
· SZ2-SPBW
(ESD protection on black surface)
· SP-C
Eyepiece clamping knob
(x 2)
Zoom adjustment knob (Page 6 & 7)
· SZ61/61-60/TR: 0.67X to 4.5X
· SZ51/51-60: 0.8X to 4X
Accessory mount thread
(x 5)
Focus adjustment knob
(Page 6)
Stroke: 120 mm
Standard Base
SZ2-ST
Optional stage mounting holes
M4 screw (x 2)
Accessory mount holes
