Olympus SZ61 - SUMMARY OF OBSERVATION PROCEDURE; 2-2 Observation Procedure

5
......................................................................................................................................
..................................................................................
....................................................................................................................................................................
(Page)
1. Confirm the mounting, particularly that of the microscope body. (P. 14 - 16)
2. Confirm that the eyepieces are positioned correctly with respect to the standard base. (P. 15)
3. Adjust the rotation tension of the focus adjustment knob. (P. 6)
4. Prepare the light source as required.

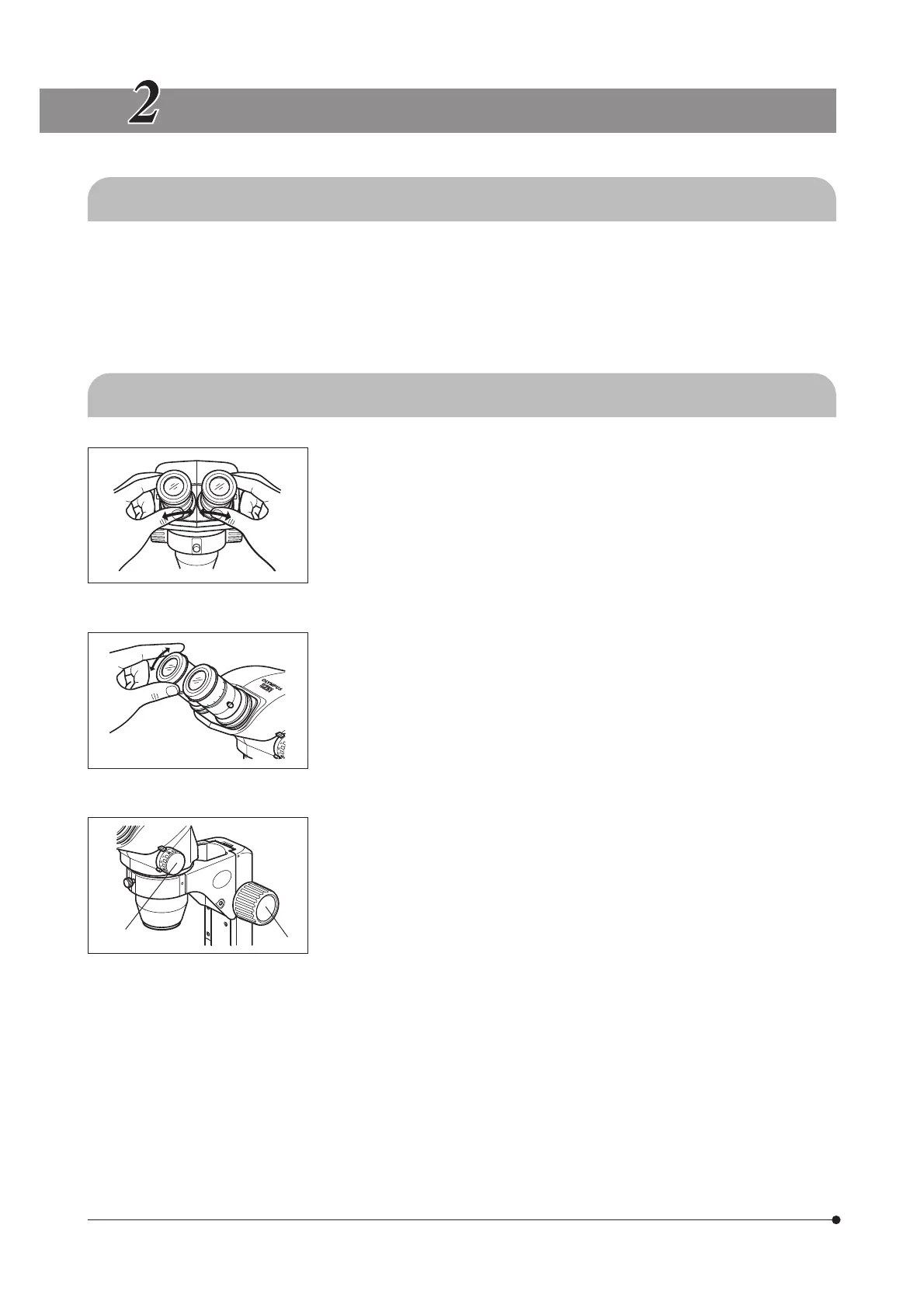

SUMMARY OF OBSERVATION PROCEDURE
2-1 Preparation
2-2 Observation Procedure
1. Place the specimen on the stage plate. (Page 6)
2. Adjust the interpupillary distance. (Page 6)
3. Adjust the eyepiece diopter. (Pages 6 & 7)
(Note) This operation is not possible with the eyepieces without
helicoids (WHSZ10X/20X).
The operation is slightly difference when a micrometer is mounted in
one of the eyepieces with helicoids.
4. Set the zoom adjustment knob @ for the lowest magnification and rotate
the focus adjustment knob ² to bring the specimen into approximate
focus.
5. Rotate the zoom adjustment knob @ to the target magnification and
rotate the focus adjustment knob ² to bring the specimen into accurate
focus.
@
²
