8-2 Stage Adapter Type 1 SZH-STAD1
The SZH-STAD1 is an adapter providing the similar function to the BX stage adapter type 1 (SZX-STAD1). The applicable
stage is the BH2-SH horizontal knob stage.
The installation and polarizer (SZX-PO or SZ-POL-2) mounting methods are identical to those for the SZX-STAD1. Please
read the previous section (page 18).
8-3 Up/Down Moving Stage SZ2-FO

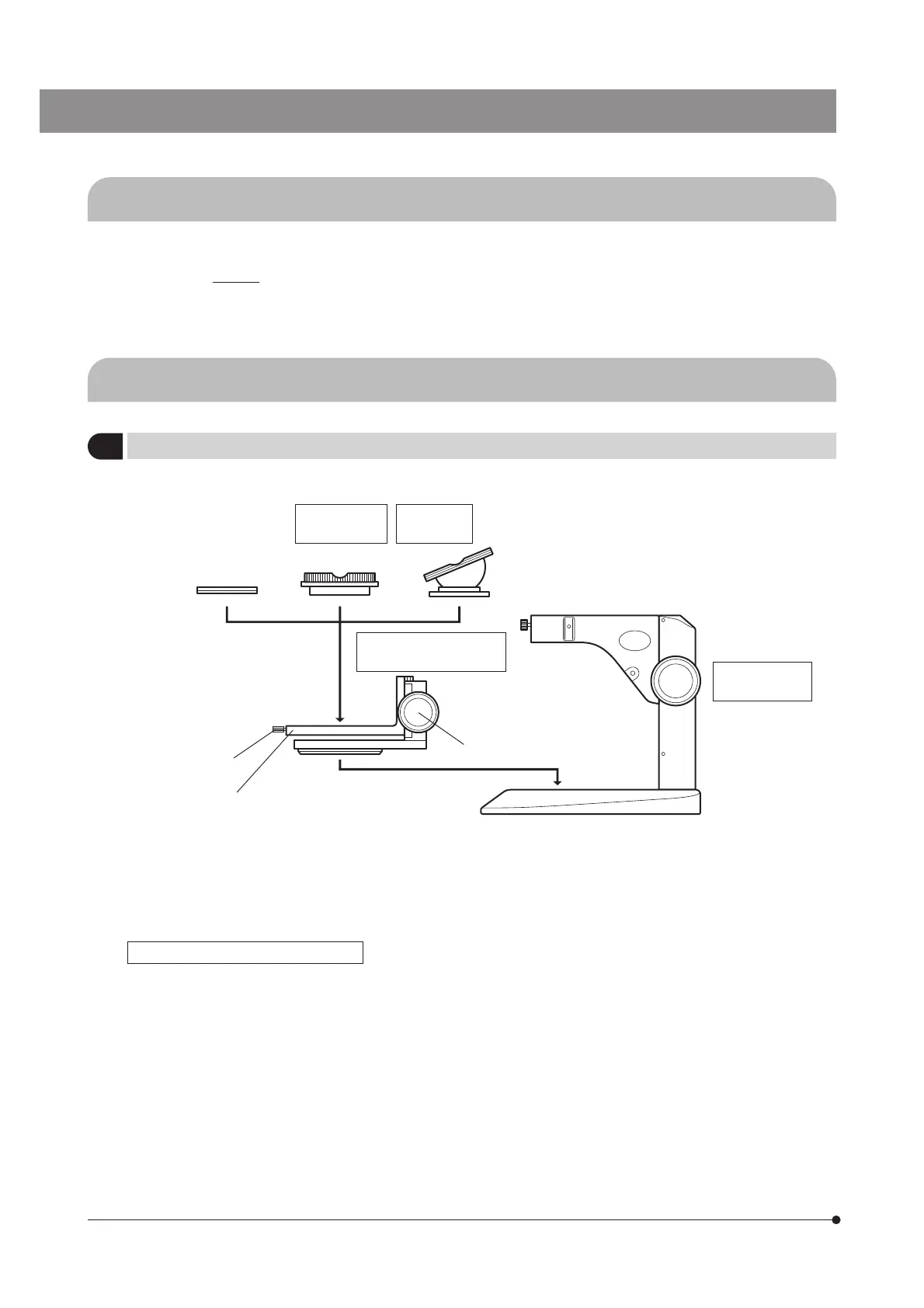

Stage plate
Gliding Stage
SZH-SG
Cup Stage
SZH-SC
Up/Down Moving Stage
SZ2-FO
Clamping knob
Stage
Focus adjustment knob
Standard Base
SZ2-ST, etc.
# When using a filter or simplified polarized light system in combination with the transmitted illumination base,
mount the filter holder or polarizer on the base before installing the up/down moving stage.
# The up/down moving stage can also be mounted so that the focus adjustment knob comes on the side of the
observer (180° opposite to the orientation shown in the above figure).
Modules Mountable on the SZ2-FO
· Stage plate : SZ2-SPBW, SP-C
· Base : SZ2-ST, SZX-ST, SZ-STL, SZX-STL, SZX illumination base series
· Stage : SZX-SC, SZH-SG*
* The front/rear movement is possible only on the front side of the center because the focus adjust-
ment knobs of the SZ2-FO comes in the way.
· Auxiliary objectives : Objectives with 0.5X or less cannot be used due to insufficiency in the focusing stroke.
The 0.5X objective can be used by adding a 400 mm column to the SZX-ST.
