UES-40
ISSUE4 3-7 Disassembly and Reassembly Procedure

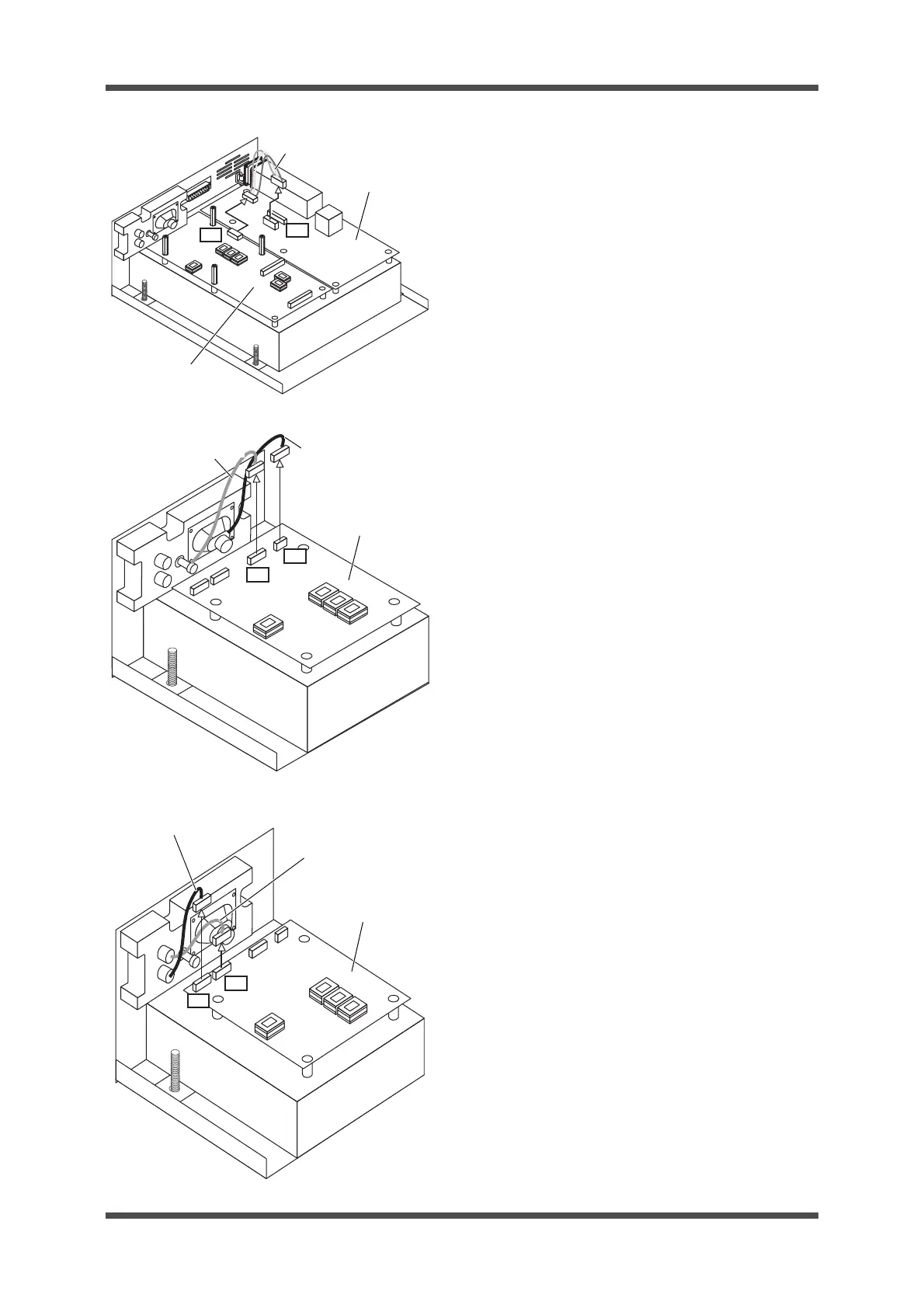

(12) Detach the E12 HARNESS 2 from J6 of
UPHF40SS00U (monitor board) and J3 of
UPHF40OT00U (oscillation board).
(13) Detach the VOLUME HARNESS from J9 of
UPHF40SS00U (monitor board), and detach
the SPEAKER HARNESS from J2 of
UPHF40SS00U (monitor board).
(14) Detach the bottom FSW MONO HARNESS
from J1 of UPHF40SS00U (monitor board)
and the top FSW BI HARNESS from J17 of
UPHF40SS00U (monitor board).
E12 HARNESS 2
UPHF40OT00U (os-
cillation board)
J6
J3
UPHF40SS00U
(monitor board)
SPEAKER HARNESS
UPHF40SS00U
(monitor board)
J9
J2
VOLUME HARNESS
UPHF40SS00U
(monitor board)
J1
J17
FSW MONO HARNESS
FSW BI HARNESS
