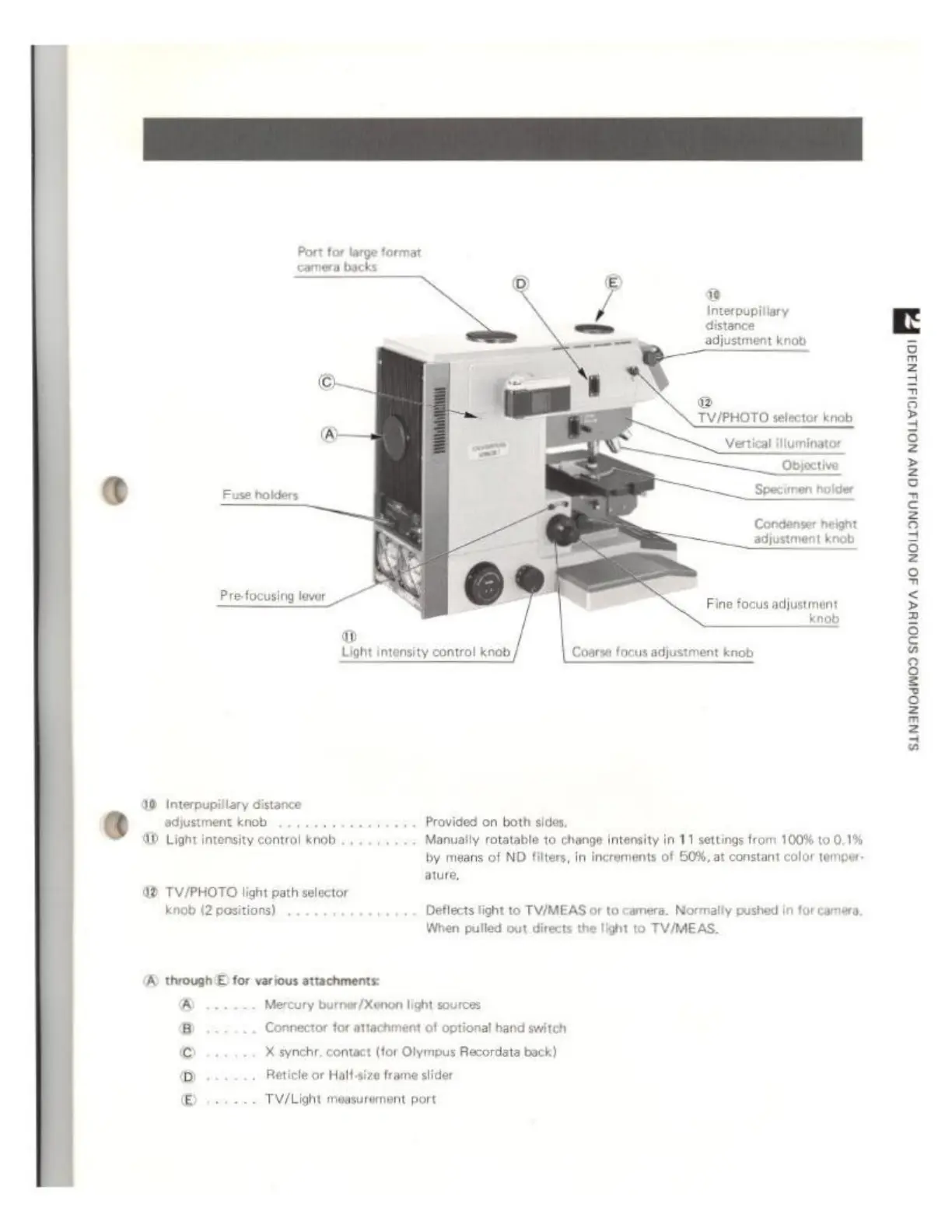

Olympus VANOX-T - Page 7

Port for large format
camera backs
Interpupiliary
distance
adjustment knob
®
TV/PHOTO selector knob
‘Objective
Specimen holder
Condenser height
adjustment knob
Pre-focusing lever —
Fine focus adjustment
knob
n
Light intensity control knob Coarse focus adjustment knob
49 Interpupillary distance
o adjustment knob ye Provided on both sides,
@® Light intonsity contro! knob Manually rotatable to change intensity in 11 settings from 100% to 0,1%
by means of ND filters, in increments of 60%, at constant color temper
ature,
42 TV/PHOTO light path selector
knob (2 positions) Deflects light to TV/MEAS or to camera. Normally pushed in for camera,
When pulled out directs the light to TV/MEAS.
(A) through E for various attachments:
Mercury burner/Xenon light sources
Connector for attachment of optional hand switch
X synchr. contact (for Olympus Recordata back)
Reticle or Half size frame slider
TV/Light measurement port
