IDENTIFICATION
AND
FUNCTION
OF
wscoen
BY

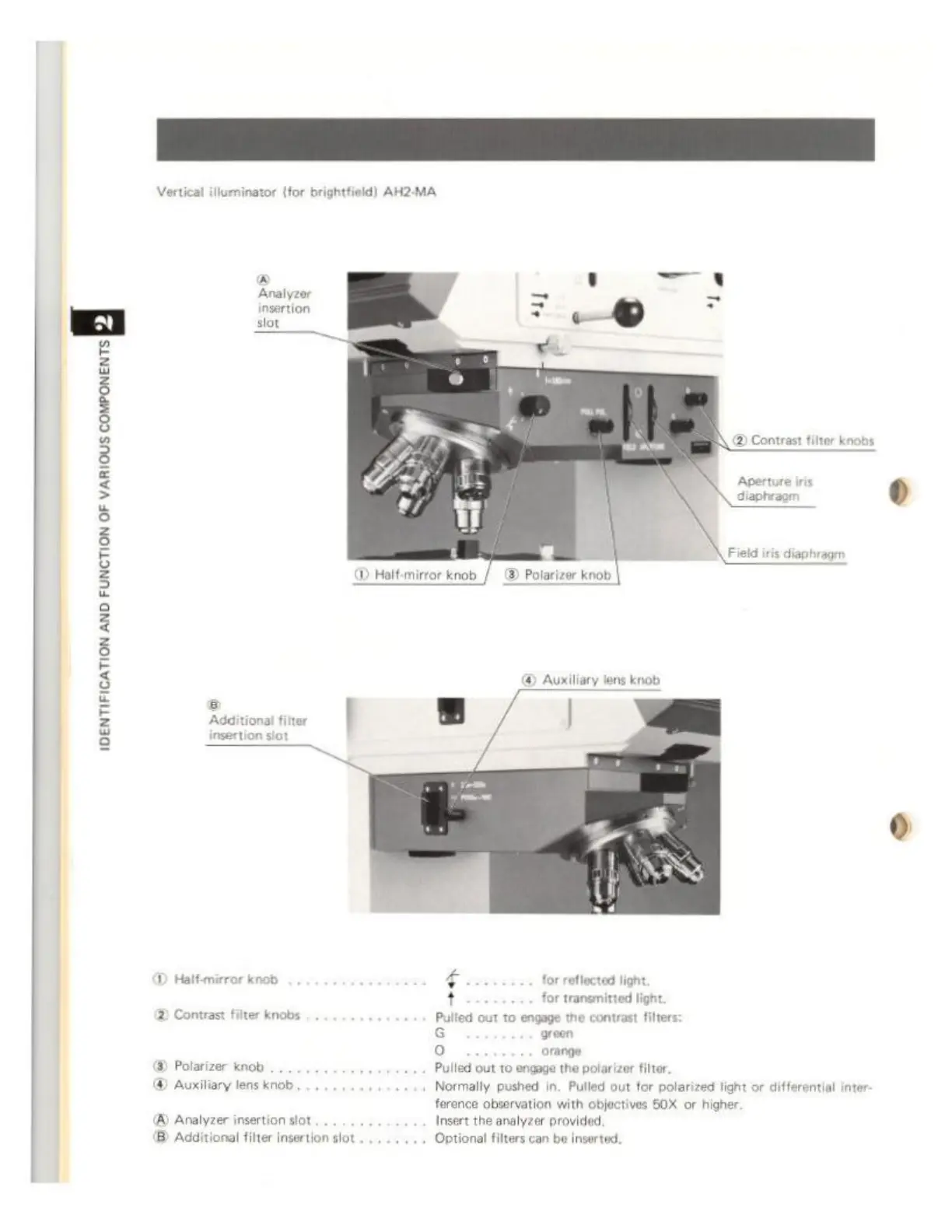

Vertical illuminator (for brighttield) AH2.MA
Analyzer
insertion
slot
® Halt.mirror knob / @ Polarizer knob |
am ||
D Halt-mirror knob
© Contrast filter knobs
© Polarizer knob
© Auxiliary lens knob
® Analyzer insertion slot
® Additional ilter insertion slot
® Contrast filter knobs
Aperture iris
Siaphrago
Field iris diaphragm
@ Auxiliary ens knob
4 for reflected lah
for transmitted lig
Pulled out to engage the contrast filters:
G green
o orange
Pulled out to engage the polarizer filter.
Normally pushed in. Pulled out for polarized light or differential inter
ference observation with objectives 50X or higher.
Insert the analyzer provided,
Optional filters can be inserted,
