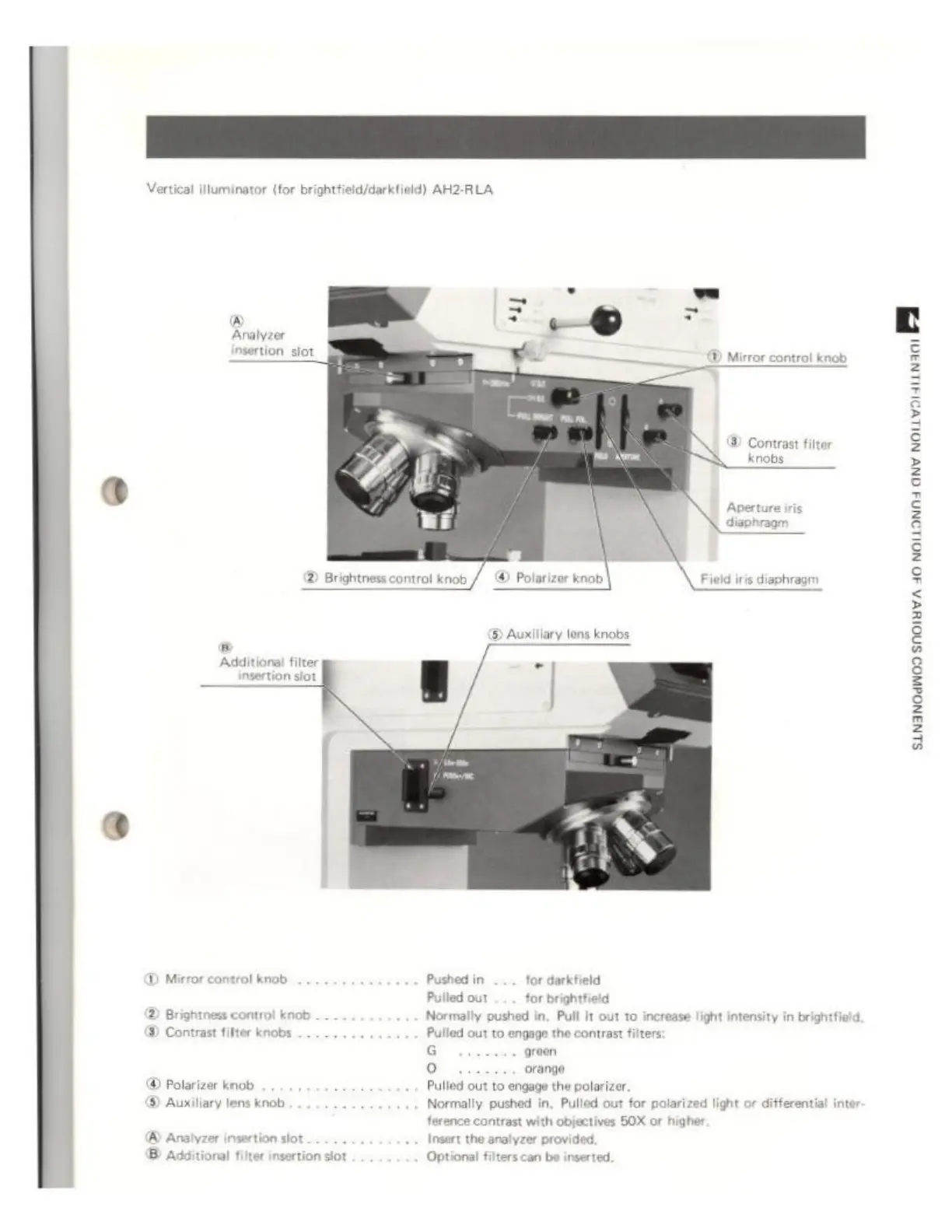

Vertical illuminator (for brightfield/darktield) AH2-RLA
å
«©
insertion
slot
|
©
Mirror
control
knob
© Contrast filter
® Brightness control knob // @ Polarizer knob Field iris diaphragm
© Auxiliary lons knobs
Additional filter
D Mirror control knob Pushed in... for darkfield
Pulled out . .. for brightfield
® Brightness control knob Normally pushed in, Pull it out to increase light intensity in brightficld
@ Contrast fitter knobs Pulled out to engage the contrast filters
G green
o orange
@ Polarizer knob Pulled out to engage the polarizer
©) Auxiliary lens knob Normally pushed in, Pulled out for polarized light or differential inter
ference contrast with objectives 50X or higher
® Analyzer insertion slot .. Insert the analyzer provided.
B Additional f insertion slot Optional filter
inserted,
