Olympus VMF Repair Manual

4X
OB
(ZJ5351 00)

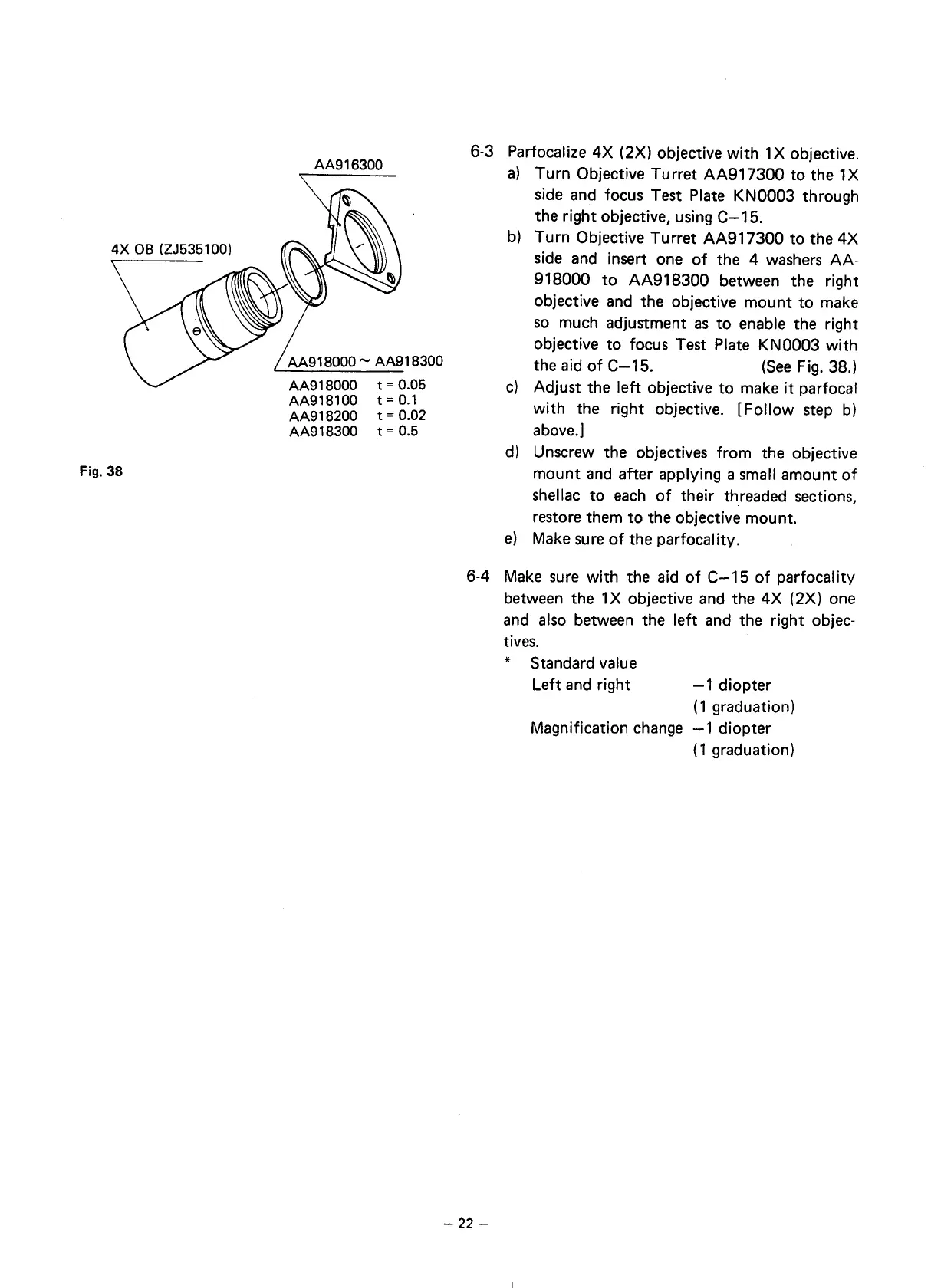

Fig.
38
AA918000
AA918100
AA918200
AA918300
t
=
0.05
t
=
0.1
t
=
0.02
t
=
0.5
6-3
Parfocalize
4X
(2X) objective
with
1 X objective.
a)
Turn Objective Turret
AA917300
to
the 1 X
side
and
focus Test
Plate KN0003 through
the right objective, using
C-15.
b)
Turn Objective Turret
AA917300
to
the
4X
side
and
insert one
of
the 4
washers
AA-
918000
to
AA918300
between the right
objective
and
the objective
mount
to
make
so
much adjustment
as
to
enable
the right
objective
to
focus Test
Plate KN0003
with
the aid
of
C-15.
(See
Fig. 38.)
c)
Adjust the
left
objective
to
make
it
parfocal
with
the right objective.
[Follow
step
b)
above.]
d)
Unscrew the objectives from the objective
mount
and
after applying
a small
amount
of
shellac
to
each
of
their threaded sections,
restore them
to
the objective mount.
e)
Make
sure
of
the parfocality.
6-4 Make
sure
with
the aid
of
C-15
of
parfocal
ity
between the 1 X objective
and
the
4X
(2X) one
and
also
between the
left
and
the right
objec-
tives.
*
Standard value
Left
and
right
Magnification
change
-22-
-1
diopter
( 1 graduation)
-1
diopter
( 1 graduation)
