Strike here.
Fig. 80
Grease
Fig.
81
Adhesive
(Aion Alpha)
AA921400

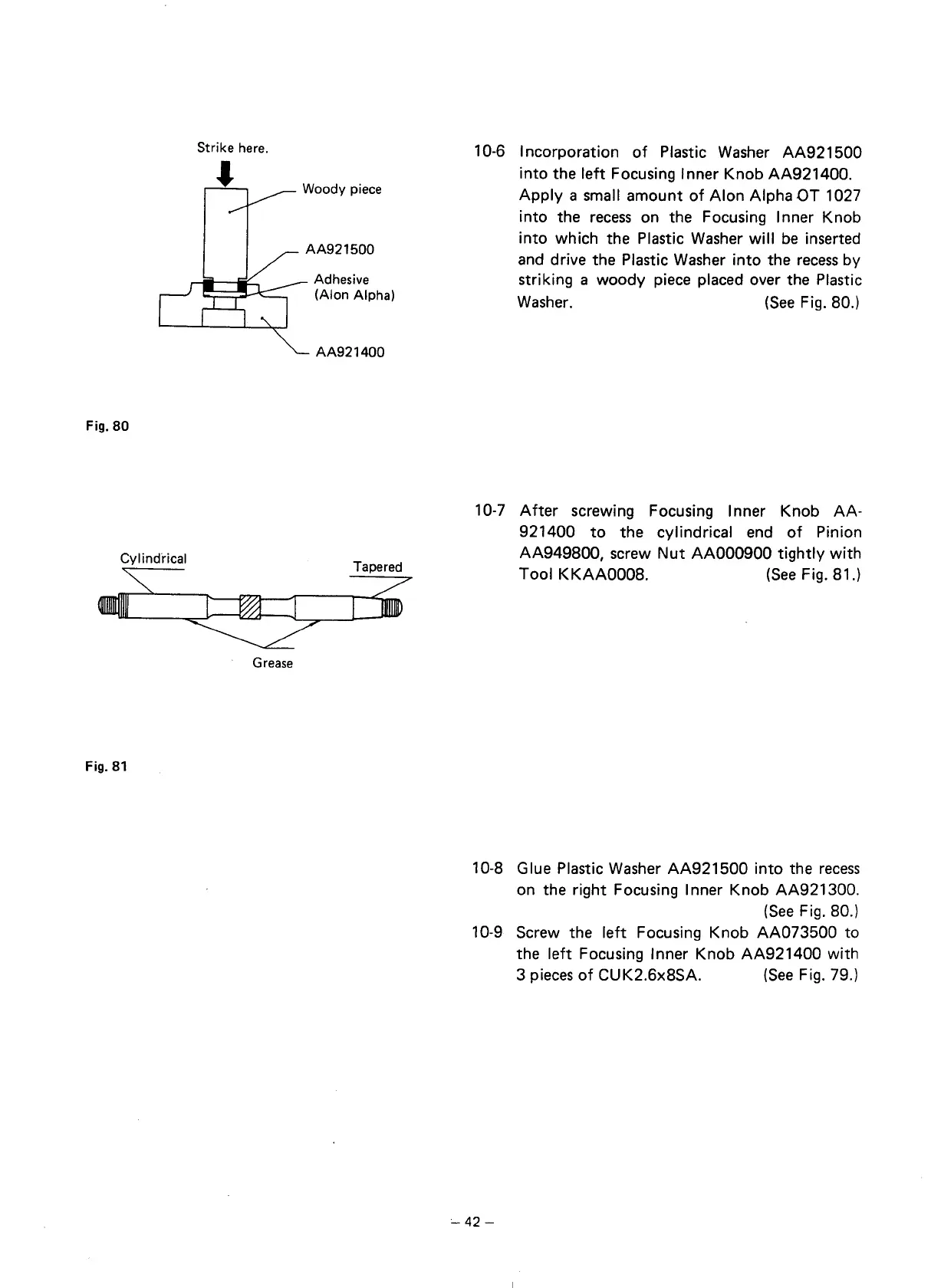

10-6 Incorporation
of
Plastic
Washer
AA921500
into
the
left
Focusing Inner Knob AA921400.
Apply
a small amount
of
A Ion Alpha
OT
1027
into the
recess
on the Focusing Inner Knob
into
which the Plastic
Washer
will
be
inserted
and
drive the Plastic
Washer
into
the
recess
by
striking a woody piece placed over the Plastic
Washer.
(See
Fig. 80.)
10-7
After
screwing Focusing Inner Knob AA-
921400
to
the cylindrical
end
of
Pinion
AA949800, screw
Nut
AA000900
tightly
with
Tool
KKAA0008.
(See
Fig. 81.)
10-8 Glue Plastic
Washer
AA921500
into
the
recess
on the right Focusing Inner Knob AA921300.
(See
Fig. 80.)
10-9 Screw the
left
Focusing Knob AA073500 to
the
left
Focusing Inner Knob AA921400 with
3
pieces
of
CUK2.6x8SA.
(See
Fig. 79.)
