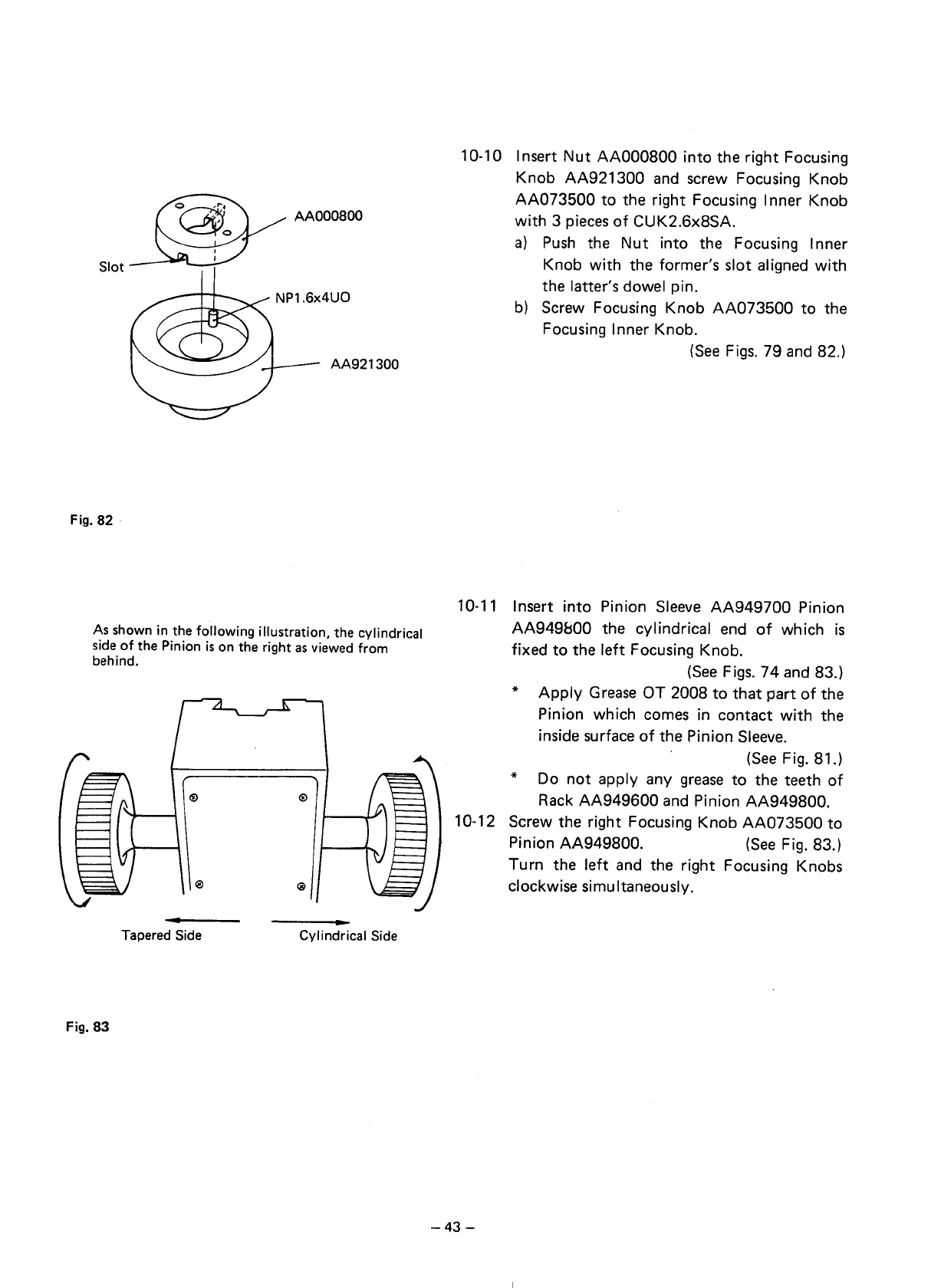

Olympus VMF Repair Manual

AA000800
Slot
AA921300
Fig. 82
As
shown in the
following
illustration,
the
cylindrical
side
of
the Pinion
is
on the right
as
viewed
from
behind.
®
®
®
Tapered Side
Cylindrical
Side
Fig. 83
10-10 Insert
Nut
AA000800
into the right Focusing
Knob AA921300
and
screw Focusing Knob
AA073500
to the right Focusing
Inner
Knob
with
3
pieces
of
CUK2.6x8SA.
a)
Push
the
Nut
into the Focusing
Inner
Knob
with
the former's
slot aligned
with
the
latter's dowel
pin.
b)
Screw
Focusing Knob
AA073500
to
the
Focusing
Inner
Knob.
(See
Figs.
79 and 82.)
10-11
Insert
into Pinion
Sleeve
AA949700
Pinion
AA949~00
the
cylindrical
end
of
which
is
fixed
to
the
left
Focusing Knob.
(See
Figs.
74 and 83.)
*
Apply
Grease
OT
2008
to
that
part
of
the
Pinion which comes in contact
with
the
inside surface
of
the Pinion
Sleeve.
*
(See
Fig. 81.)
Do
not
apply any
grease
to
the teeth
of
Rack
AA949600
and
Pinion AA949800.
10-12 Screw
the right Focusing Knob
AA073500
to
Pinion AA949800.
(See
Fig. 83.)
Turn the
left
and the right Focusing Knobs
clockwise simultaneously.
-43-
