36
5.2 Single Phase Operation
Series Circuit 1,2 (L-L)
Maximum output voltage: 20V
rms
Maximum power: 280VA at 15A
Current range: 1 0 … 50A
rms
If currents 1 and 2 of a CMA 56 are operated in phase opposition (180°), the
output power can be doubled.
In order to maintain a valid overload display in this case, the outputs must be
connected with low resistance.
1'
1’
N'
N’
1 2 3 N
R
R
V
1
V
2
V’
R=100E/5W (recommended)
1
2
N
*

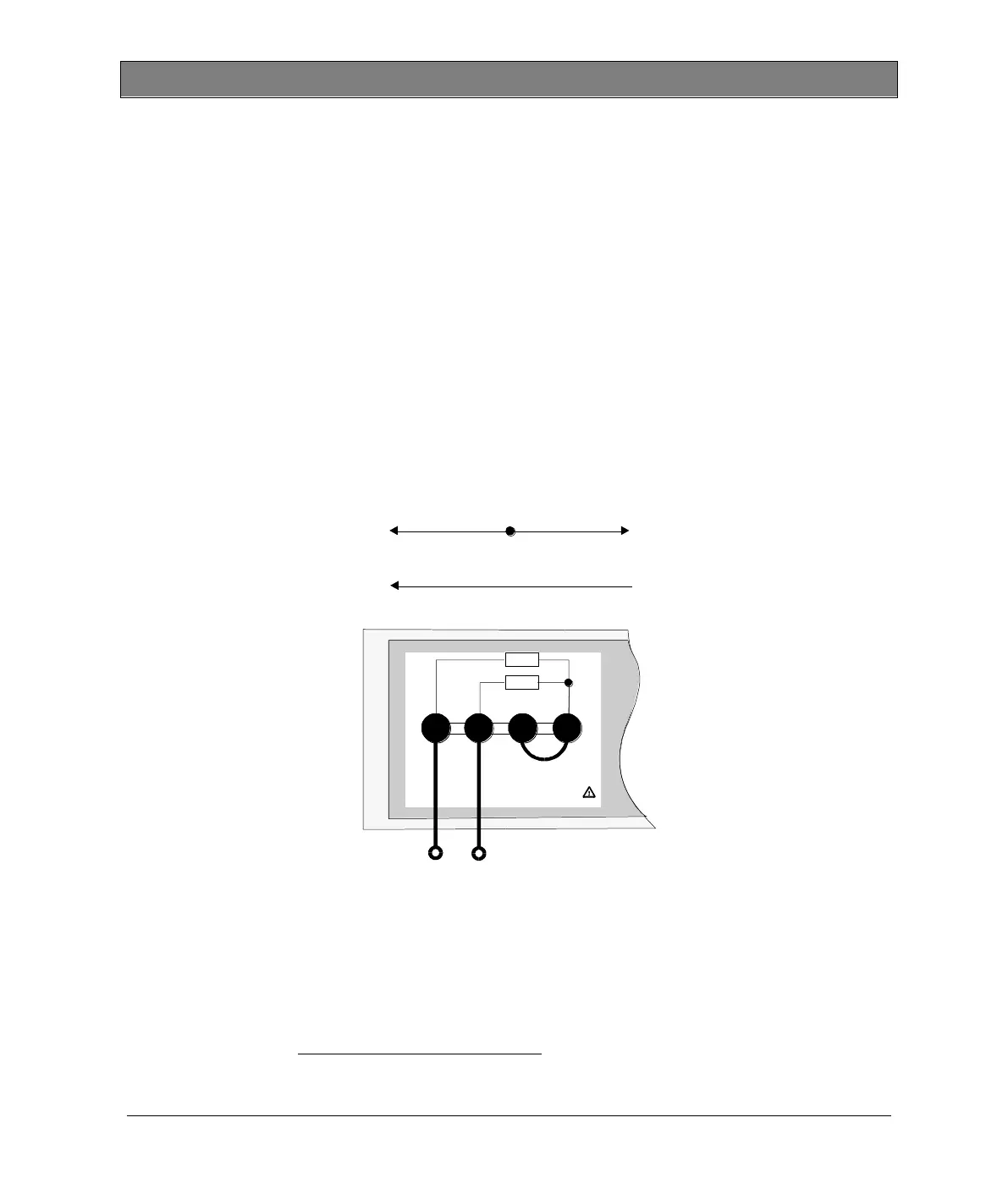

Figure 12 Single phase operation; series circuit (L, L)
See also the power curve in Figure 16.
*
The jumper is only used for suppressing the overload message of phase 3.
