Construction and Functioning
3.3.3 ext. Interf.
The ext. Interf. (Pulse out 1) is the communication interface between the
CMGPS and the CMC test set.

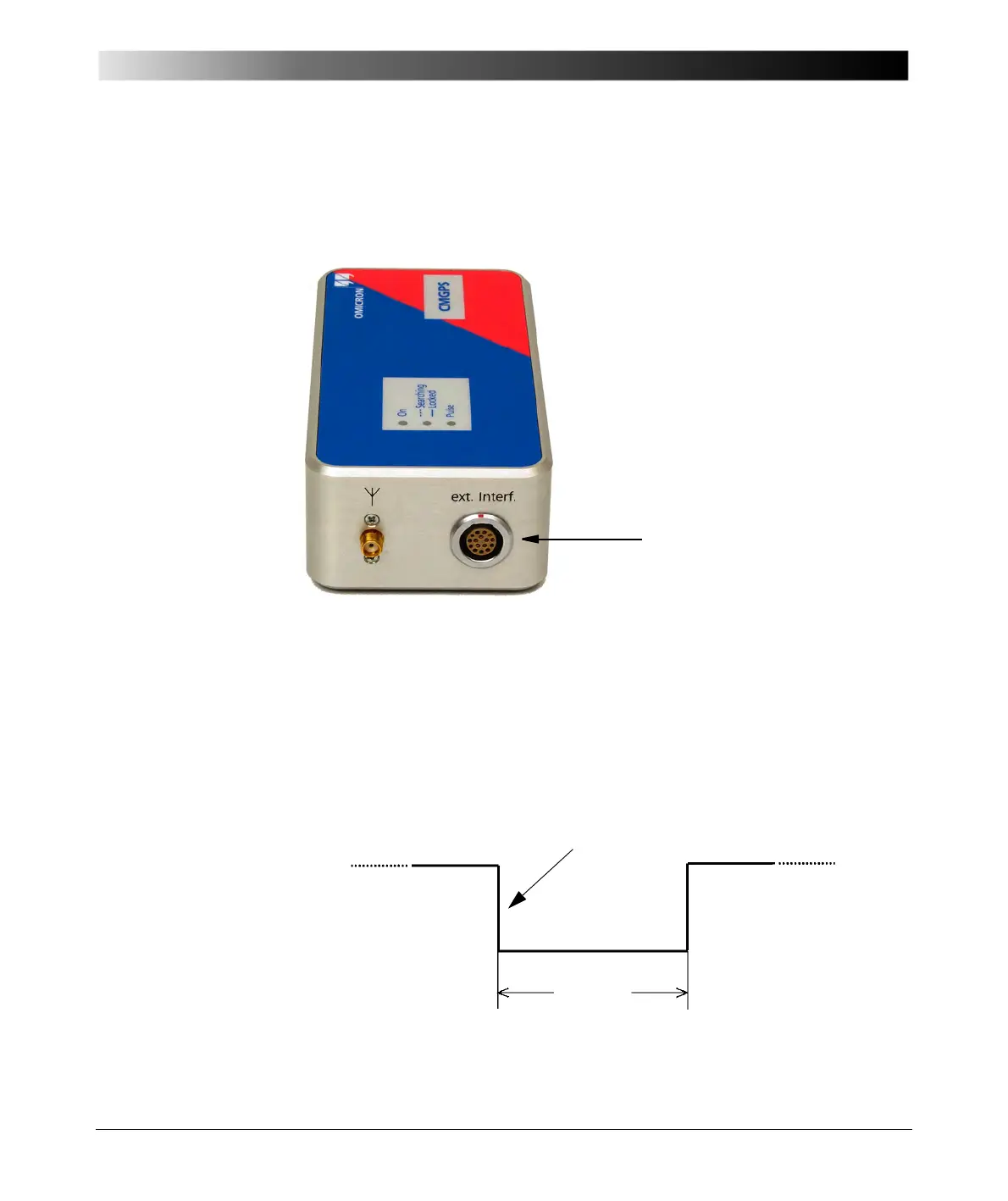

Figure 3-10:
Communication
interface ext. Interf.
At this interface, the CMGPS is connected to the CMC test set by means of the
supplied connection cable (see figure 3-3 on page 14).
This interface serves to
• configure the CMGPS via software (e.g., the synchronization time)
• send the "Pulse out 1" synchronization pulse to the CMC test set.
Standardized factory setting of the synchronization pulse is 200 ms output once
per minute.
Note: This output is only to be used together with an OMICRON CMC test set.
Do not use this output for other devices or other applications.
Communication interface to
connect CMGPS to the CMC
test set’s ext. Interf.
200 ms
The falling edge of this signal represents the synchronization point of time.
