6.6 Pulse Out 2 Interface

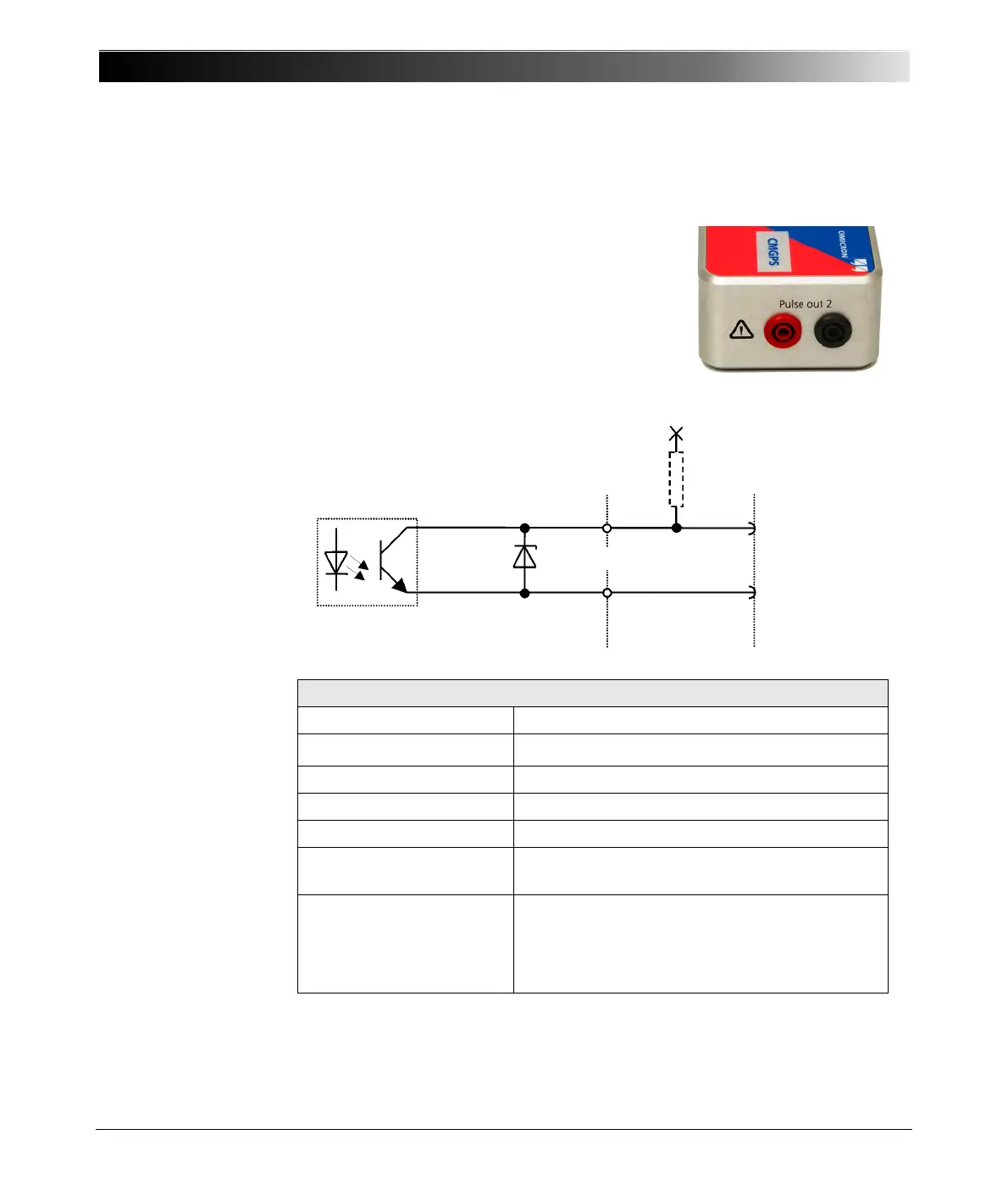

Figure 6-2:
Pulse out 2 interface
Figure 6-3:
Block diagram of the
Pulse out 2 interface
Table 6-6:
Technical specifications
Pulse out 2 interface
The synchronization pulse is only put out if the CMGPS is able to meet the
accuracy configured by the software.
At this interface the synchronization pulse of the
CMGPS can be picked up potential free via an
internal opto-electronic coupler (open collector). At
present, the Test Universe software supports the
configuration of a pulse output only. Therefore,
Pulse out 2 is synchronous to Pulse out 1.
+ U
B
(max. 30 V)
30 V
Pull-up resistor
R
p
(optional)
Pulse out 2
Bin In +
GND
red +
black -
CMGPS CMC test set
Interface Pulse out 2
Type Output by optoelectronic coupler (open collector)
Accuracy
Absolute error < ±5 µs
1
1. Depending on accuracy set in the Test Universe software
Pulse length 200 ms
Pulse rate Configurable in steps of 1 s (1 s … 65535 s)
Polarity of synch. signal Configurable to falling or rising edge
First synchronization point
of time
Programmable
Specifications of the open
collector output transistor:
•I
Cmax
•U
CEmax
5mA
30 V (red socket +, black socket –)
