37
Technical Data
6.5 ext. Interf.

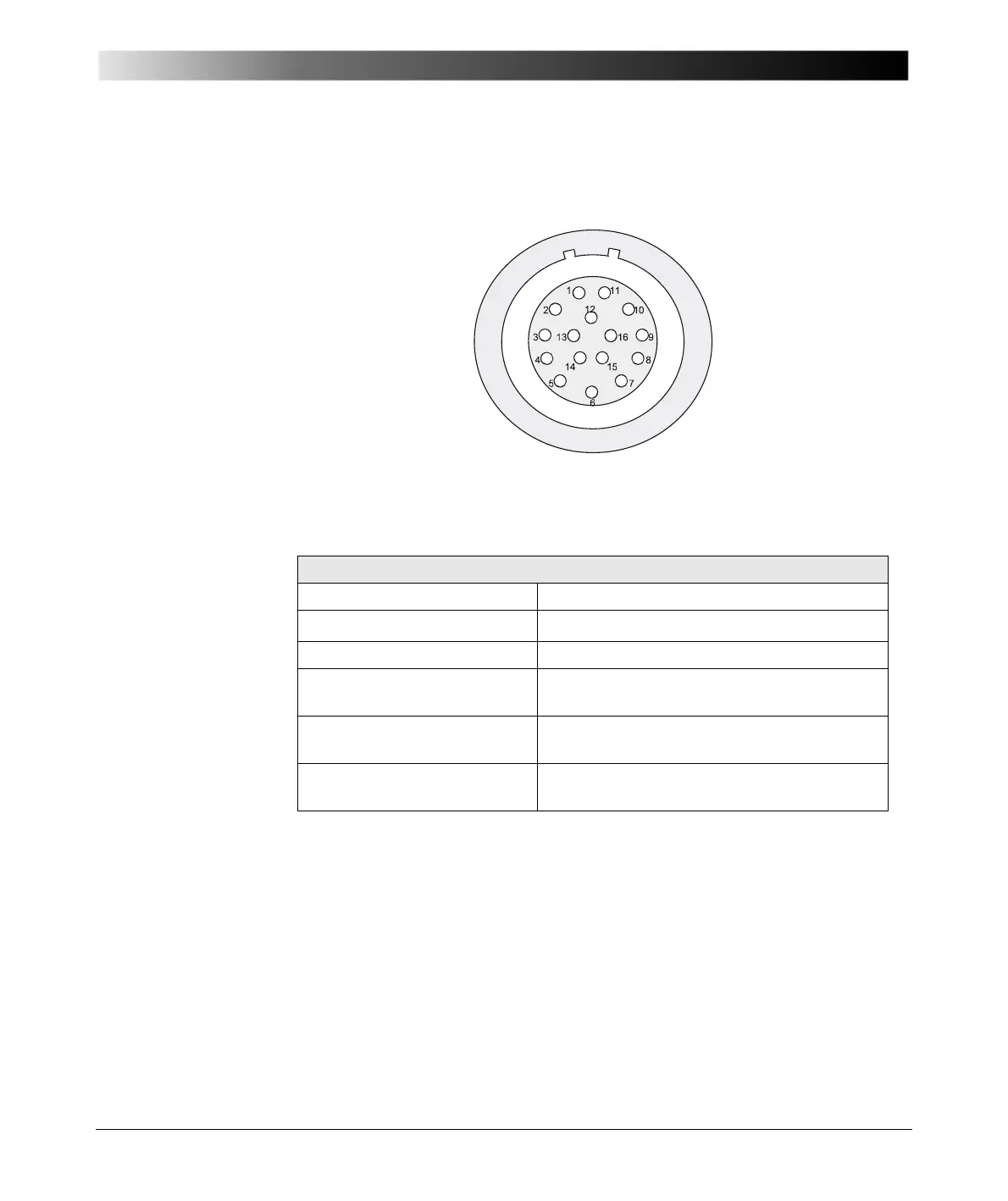

Figure 6-1:
16-pole LEMO™ socket
ext. Interf.
This interface serves to connect the CMGPS to the CMC test set by means of
the supplied connection cable VEHK0003 (see figure 3-3 on page 14).
Table 6-5:
Technical data
ext. Interf. (output
Pulse out 1)
The synchronization pulse is only put out if the CMGPS is able to meet the
accuracy configured by the software.
ext. Interf. (output Pulse out 1)
Type CMOS output
Accuracy
Absolute error < ± 1 µs
1
1. Accuracy of CMGPS. The synchronization of test sets depends on the accuracy set in the Test
Universe software. Also refer to chapters 5.1 ”Standard Accuracy Mode” and 5.2 ”Enhanced
Accuracy Mode”
Pulse length 200 ms
Pulse rate Configurable in steps of 1 second
(1 s … 65535 s)
Polarity of synchronization
signal
Configurable to descending or ascending
edge
First synchronization point of
time
Programmable
