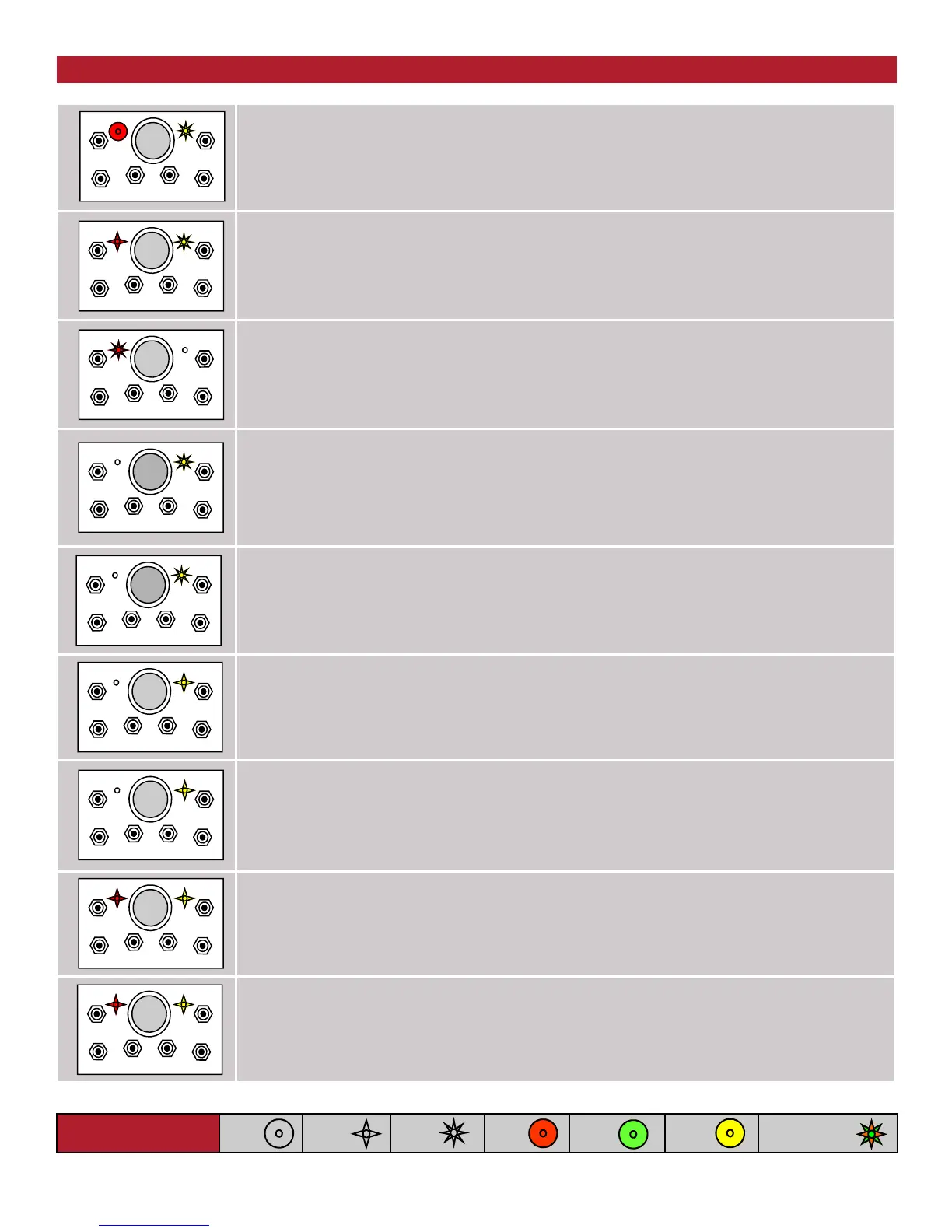

Diagnostics—T150 Transmitter
Light Legend
Solid
Slow
Flash
Fast
Flash
Red
Light
Green
Light
Alternating Red
& Green Light
Yellow
Light
Tether connection detected
Low battery. Unit will run approximately 10 hours after Battery light starts flashing.
Flashing rapidly for 10 seconds indicates a transmitter failure.
Normal Operation
The Active light will flash several times per second, indicating that the transmitter is sending
signals to the receiver. The Active light will remain on momentarily whenever a function
changes
On Power Up
Release the E-Stop button within 10 seconds to power up the transmitter, or the unit will
power down.
Normal Operation
The transmitter is in Download Mode.
On Power Up
Press and release the E-Stop button within 10 seconds to power up the transmitter, or the
unit will power down.
Stuck switch detected. Ensure that all switches are in a centered position. The transmitter
will not power up when a function is ON.
On Power Down
Unit is still powered. Check for stuck switches, as the transmitter will not power down when a
function is ON. Alternating flash means that the transmitter is in Calibration Mode.
