The ORIGA T150 / R160 is a portable, long range, programmable radio remote control system. Designed as a compact
and easy-to-use product, this member of the ORIGA family puts complete control of your crane where it’s needed most,
with the operator. It’s robust, easy to install and has complete self-diagnostics. This system can be a simple cable re-
placement or add intelligence to make it a total crane control package. It’s a radio, a PLC and a valve driver all in one.
The ORIGA T150 / R160 system uses Frequency Hopping Spread Spectrum (FHSS) technology. FHSS devices con-
centrate their full power into a very narrow signal that randomly hops from frequency to frequency within a designated
band. This transmission pattern, along with CRC-16 error-checking techniques, enables signals to overcome interfer-
ence that commonly affects licensed radios.
The R160 receiver is designed to be powered from a 12VDC or 24VDC system. It features 19 solid state, high-side
driver input / output controls and a reliable E-Stop control.
The T150 transmitter comes with 4 to 7 switches and an optional proportional trigger control. It uses standard, long
lasting AA batteries. Each T150 transmitter uses a unique ID code to ensure that no two systems will conflict at a job
site.
Features
• FCC, ISC, CE approved
• License free
• 1200 foot range @ 900 MHz (900 ft. @ 2.4 GHz)
• Hand held / weatherproof / ergonomic
• Simple “wire-and-use” installation
• Resilient to impact and shock
• Available in both 900 MHz and 2.4 GHz
• Available with optional trigger for proportional control
• Available with E-Stop for ensured operator safety
• Available with an optional tether cable
• Factory configurable for all custom applications.

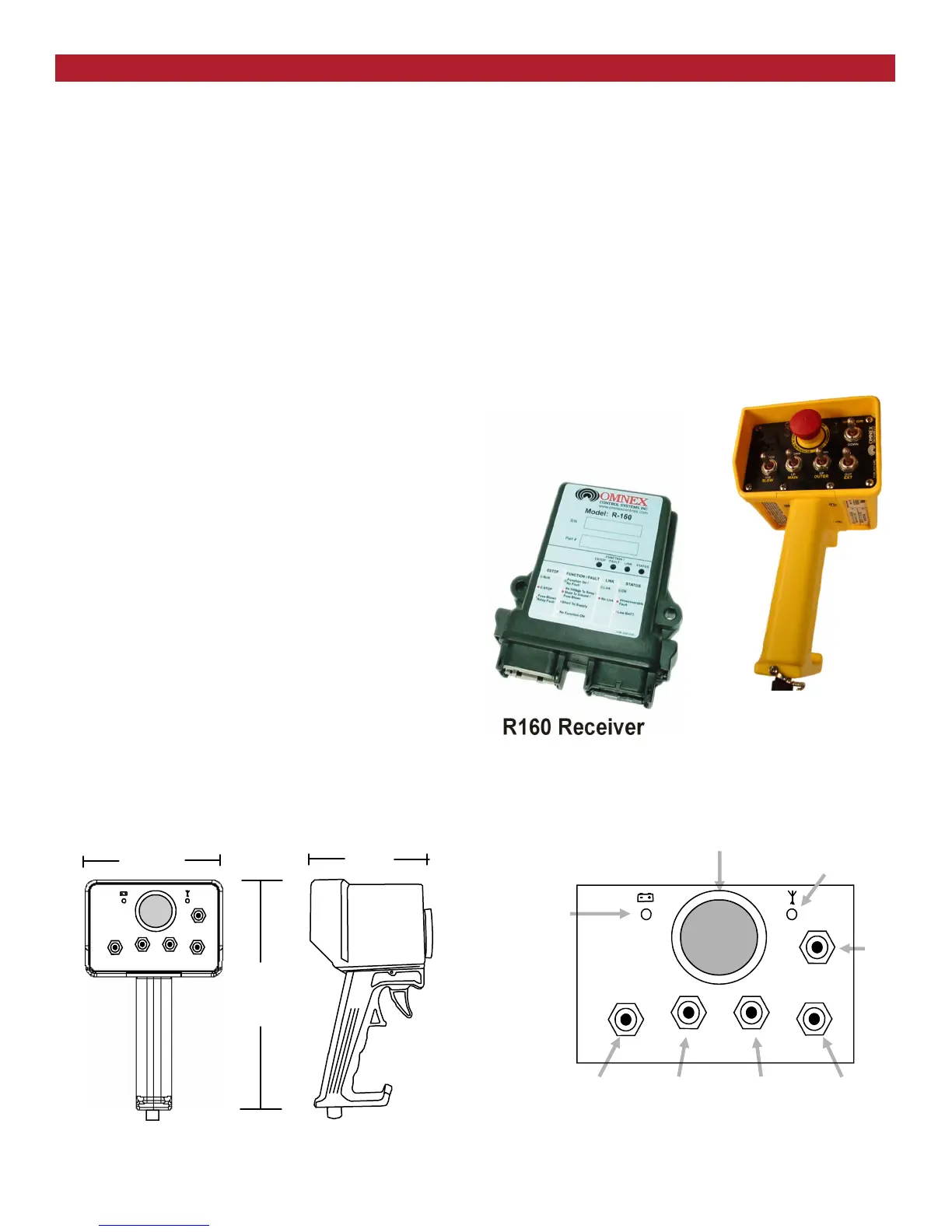

T150 Dimensions and Controls
System Overview
Battery Low
LED
Active LED
E-Stop Button
SW - 5 SW - 1 SW - 2 SW - 3
SW - 4
T150 Transmitter
7.87”
4.13”
4.92”
