Analog
There are 4 controls in the Analog Output Level group:
The Analog Output Level Master controls the
output level of both the left & right channel analog
XLR jacks simultaneously.
Right Trim controls the level of the right channel
only over a limited + or – 3dB range to correct
left/right balance issues in the following equipment.
This is normally set to “0.0 dB”.
De-Emphasis controls whether the analog XLR
outputs (when set to FM) are de-emphasized (ON)
or not (OFF).
Output Selection selects the processing channel
assigned to the analog output XLR jacks: FM, HD
or DJ.

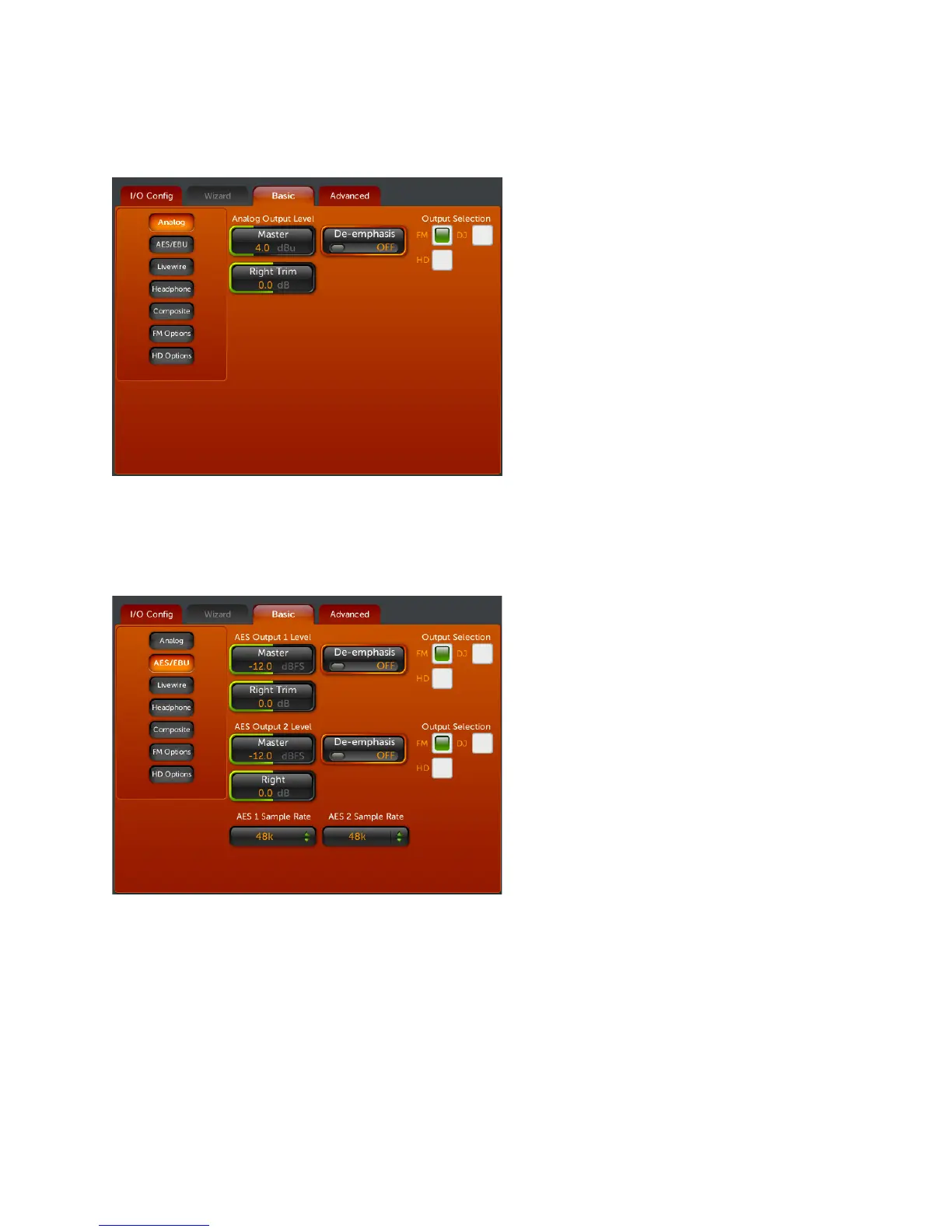

Analog Output Submenu (Basic Tab)
AES/EBU
There are 4 similar controls in each of the AES Output 1 Level and AES Output 2 Level groups:
Master controls the AES/EBU digital output level
of both the left & right channels simultaneously.
Note: The Master control in the “AES Output 1
Level” group controls the output from the AES out
1 XLR jack only. Similarly, the Master control in
the “AES Output 2 Level” group controls the
output from the AES out 2 XLR jack only
Right Trim controls the level of the right channel
only over a limited + or – 3dB range to correct
left/right balance issues in the following equipment.
This is normally set to “0.0 dB”.
AES/EBU Output Submenu (Basic Tab)
De-Emphasis controls whether the appropriate AES OUT XLR output (when set to FM) is de-emphasized (ON) or
not (OFF).
Output Selection selects the processing channel assigned to that output: FM, HD or DJ.
AES 1 Sample Rate: These drop-down controls select the sample rate for each of the 2 AES/EBU XLR outputs.
Possible settings are 48k (internal 48 kHz clock), Input (syncs to the sample rate on the AES/EBU input jack) or
External (syncs to the sample rate of an AES/EBU signal applied to the External Sync XLR input jack on the rear
panel).
