AES 2 Sample Rate: These drop-down controls select the sample rate for each of the 2 AES/EBU XLR outputs.
Possible settings are 44.1k (internal 44.1 kHz clock), 48k (internal 48 kHz clock) or External (syncs to the sample
rate of an AES/EBU signal applied to the External Sync XLR input jack on the rear panel). Sync to Input is not
available for AES 2. If you have AES 1 synced to Input and you also need AES 2 synced to the same source, you
will need to bridge the AES 1 output into the External Sync input and set AES 2 Sample Rate to External.
Livewire
There are 4 similar controls each in the Livewire 1 and Livewire 2 groups:
Master controls the Livewire digital output level of
both the left & right channels simultaneously. Note:
The Master control in the “Livewire 1 Level” group
controls the output level sent to the Livewire 1
channel configured in the Livewire Setup screen.
Similarly, the Master control in the “Livewire 2
Level” group controls the output level sent to the
Livewire 2 channel configured in the Livewire Setup
screen.
Right Trim controls the level of the right channel
only over a limited + or – 3dB range to correct
left/right balance issues in the following equipment.
This is normally set to “0.0 dB”.

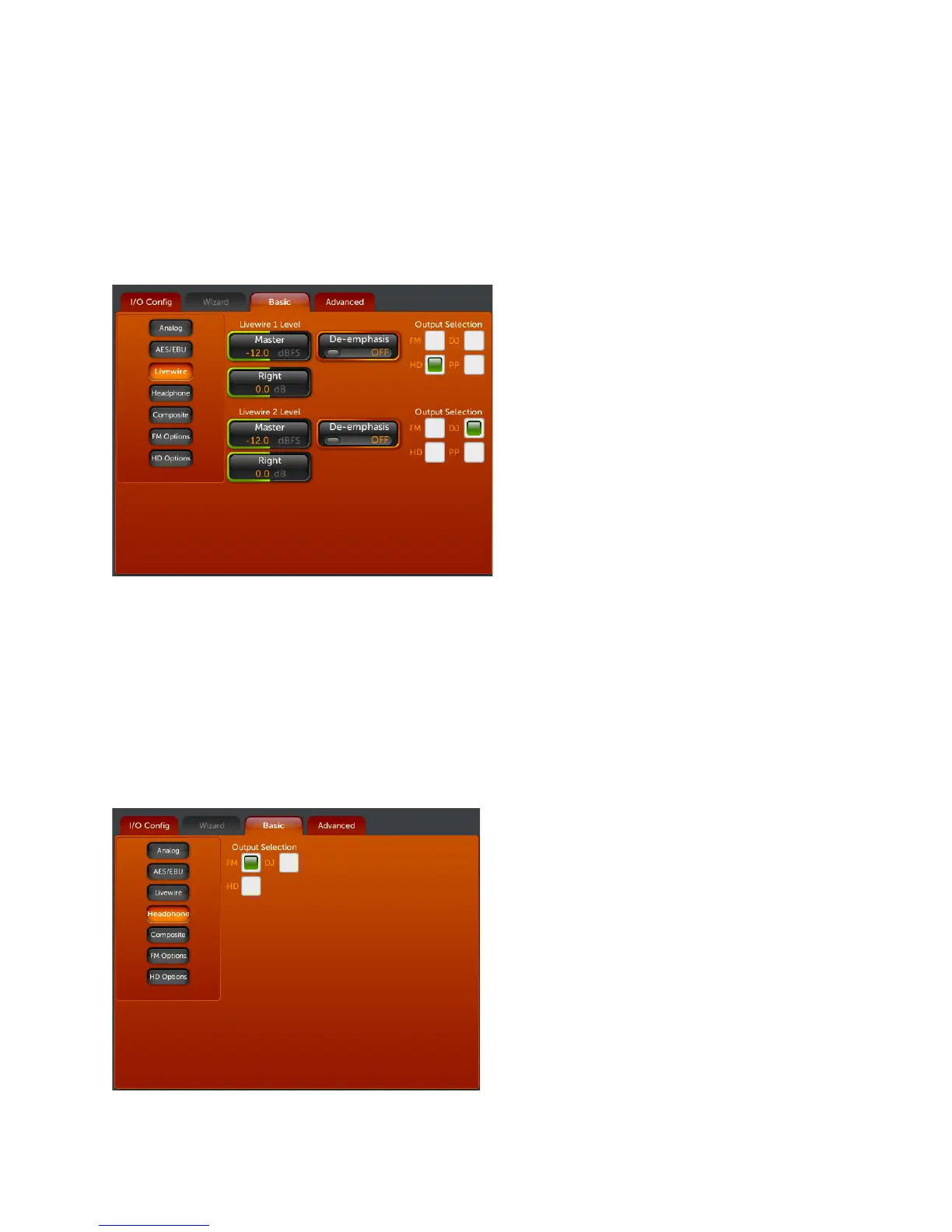

Livewire Output Submenu (Basic Tab)
De-Emphasis controls whether the appropriate Livewire output (when set to FM) is de-emphasized (ON) or not
(OFF).
Output Selection selects the processing channel assigned to that output: FM, HD, DJ or PP (Patch Point – this will
be the output of the 5-Band AGC section).
Headphone
There is but a single control available here: Output Selection selects the processing channel assigned to the front
panel headphone jack: FM, HD or DJ.
Headphone Output Submenu (Basic Tab)
