Open the protective cover of the connector as shown in Fig.14. Plug the AC connectors
of the AC End Cable into the micro-inverter as shown in Fig.15. Make sure the
protective cover of the unused AC connector to be closed.

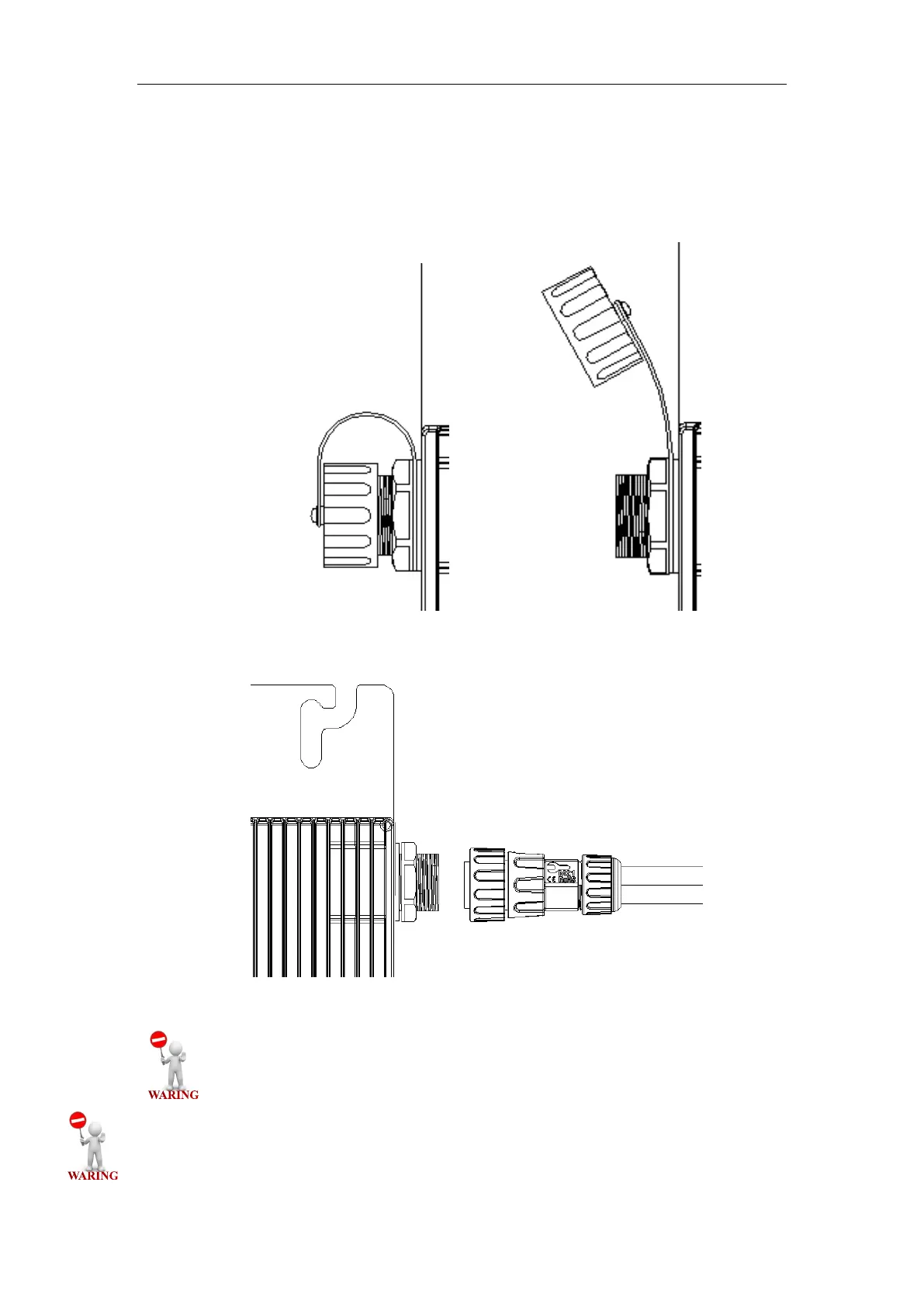

Fig.14. Open the protective cover of the connector
Fig.15. Connect AC Cable of Micro-inverter
To prevent electrical hazards, all the connection operations must be
carried out with the equipment disconnected from the grid.
Pay special attention and ensure not to reverse the phase with the neutral!
