19

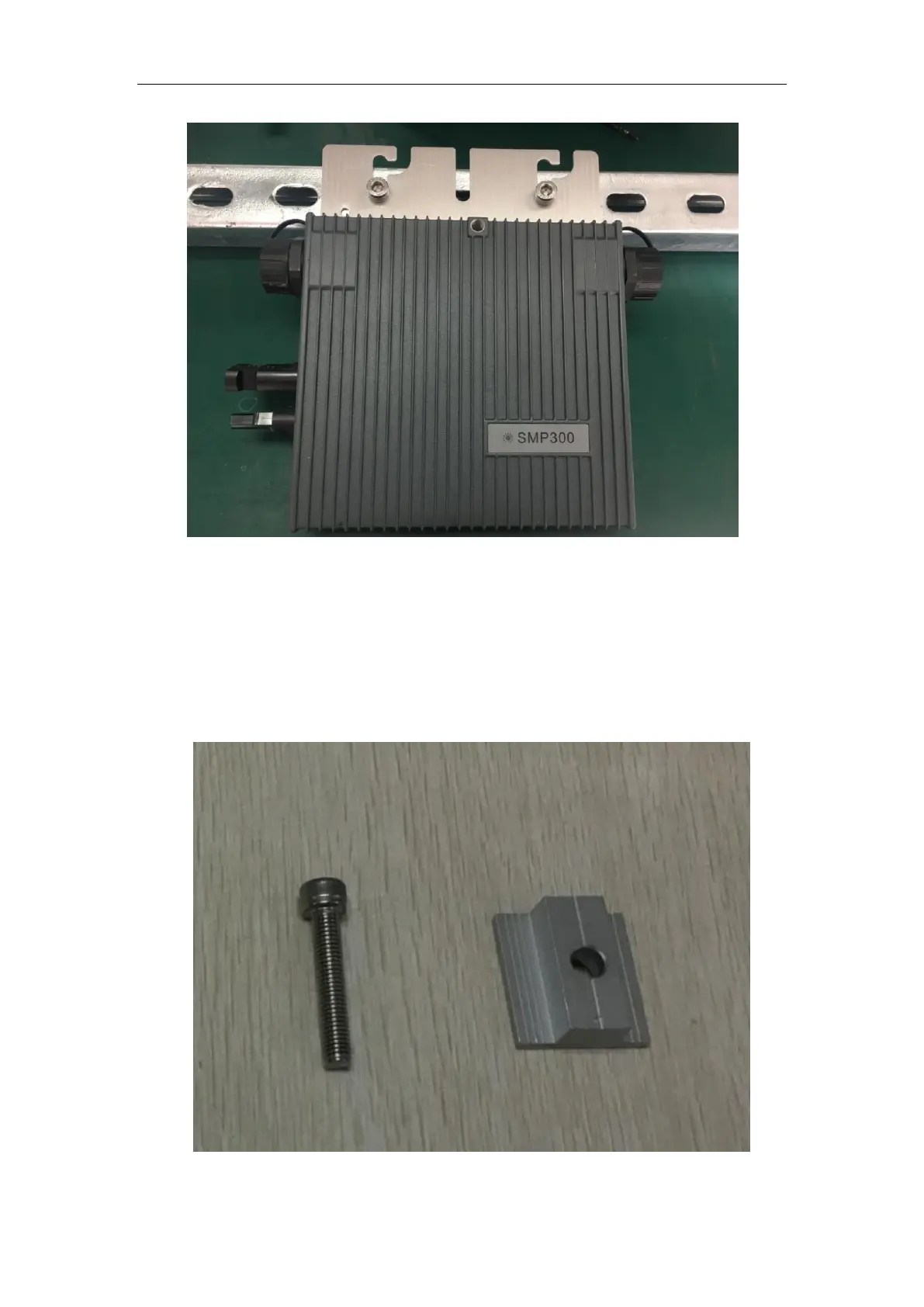

Fig.20. Installation Example (Wall Bracket Hole)
Second Type of Installation (Quick install hole):
There is a quick install hole in each Micro-inverter as shown in Fig.1 and Fig.2.
We provide a screw and a metal accessory as shown in Fig.21.Put them on the bracket
as shown in Fig.22.
Fig.21. Screw and Accessory
