23

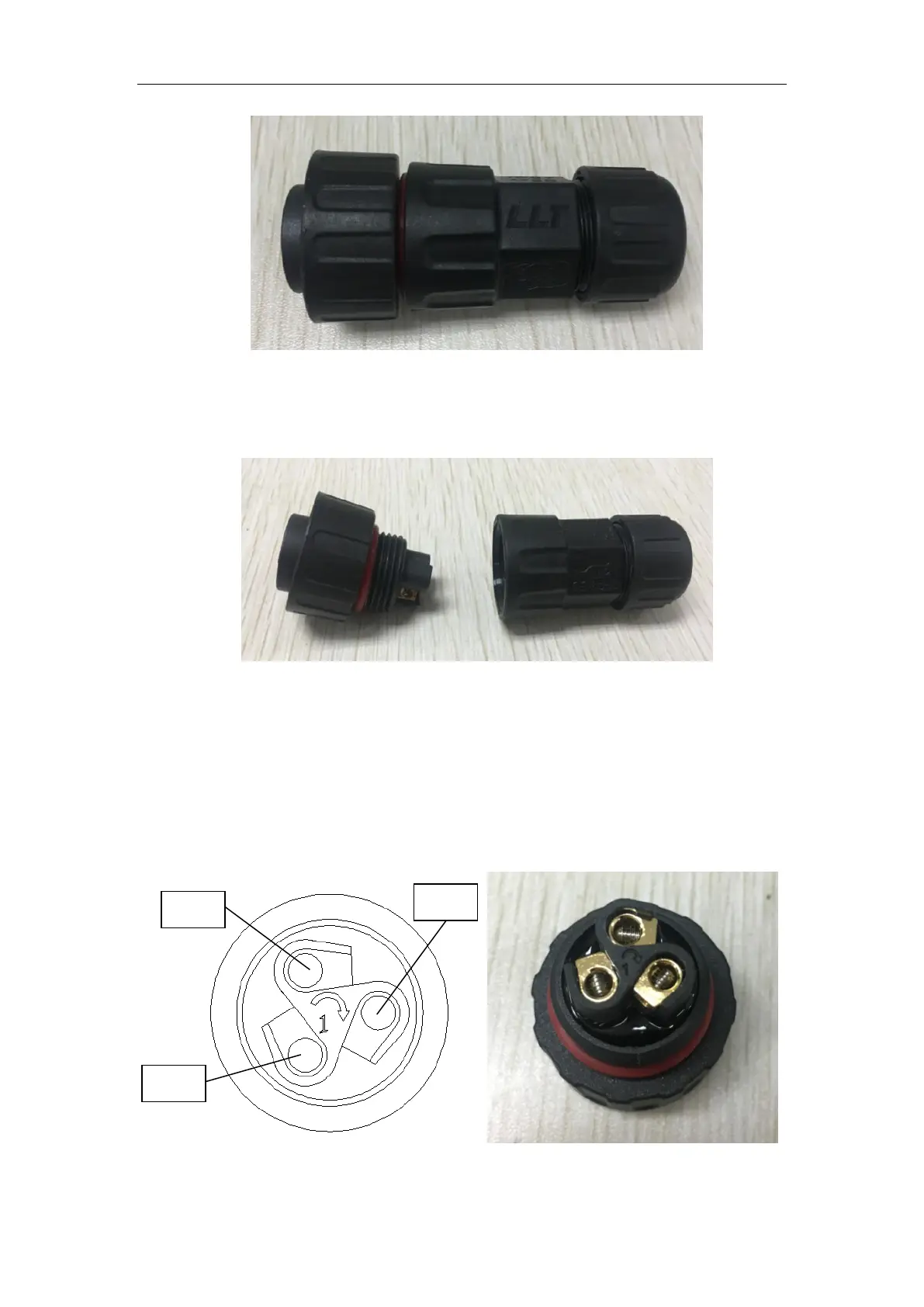

Fig.28. AC Connecter
Separate the AC connecter as shown in Fig.29.
Fig.29. Separate the AC connecter
Use 12 AWG (4mm
2
) copper wire for AC end cables. Use only solid wire or stranded
wire.
The defination of the AC connecter is shown in Fig.30.
Port 1(Brown/Red): Live
Port 2(Yellow-Green): Ground
Port 3(Blue/Black): Neutral
Fig.30. Definition of the AC connecter
Port 1
Port 3
Port 2
