Step 3. Connect AC Cable of Micro-inverter
Open the protective cover of the connector as shown in Fig.26. Plug the AC connectors
of the AC Cable into two connectors of different micro-inverters to form a continuous
AC branch circuit as shown in Fig.27. Make sure the protective cover of the unused
AC connector to be closed. (Especially the last micro-inverter)

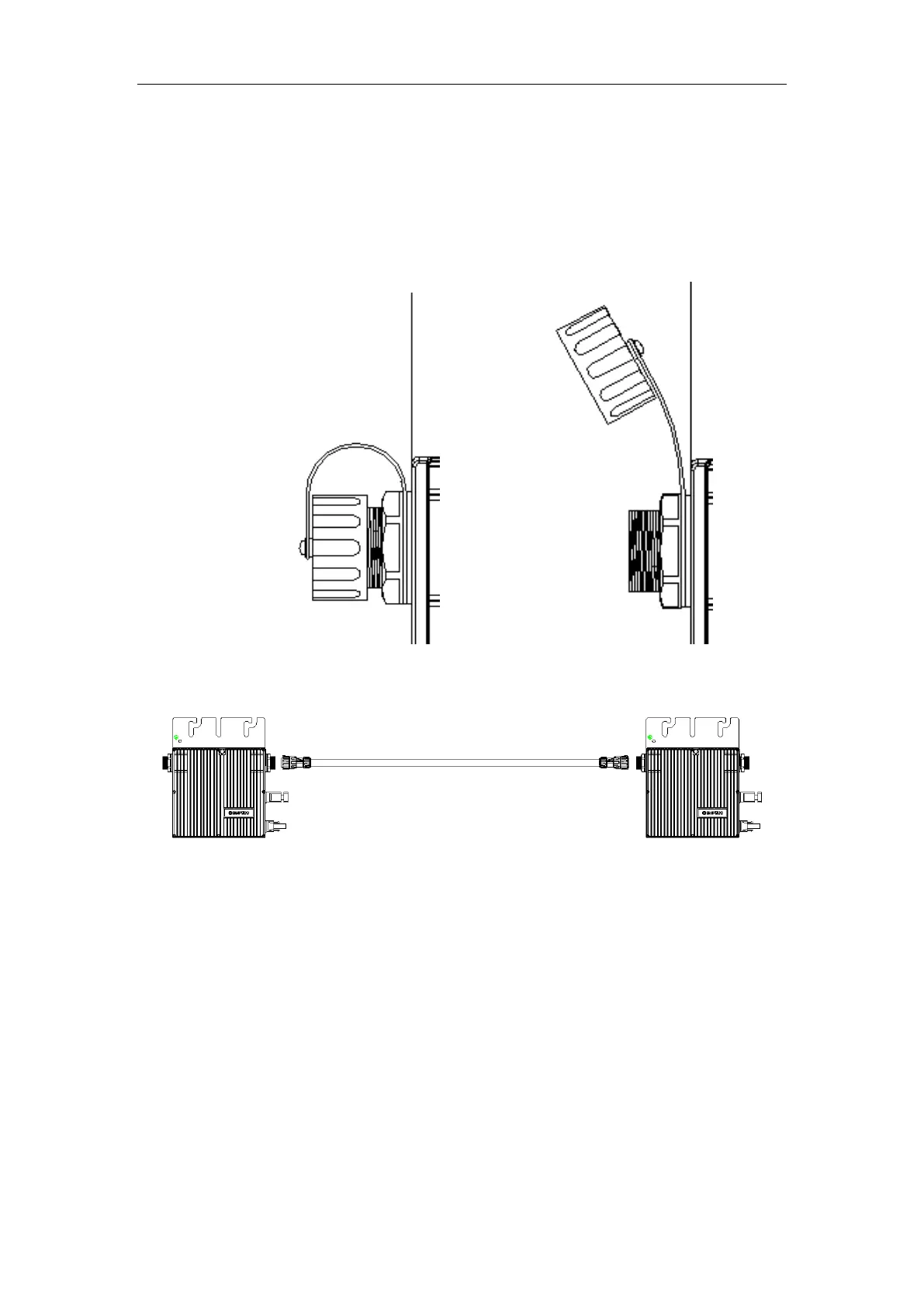

Fig.26. Open the protective cover of the connector
Fig.27. Connect AC Cable of Micro-inverter
Step 4. Connecting AC End Cables to Junction Box
Connect the AC end cables coming from each cable section to the junction box.
We provide an AC connecter with each micro-inverter as shown in Fig.28.
