10050025_V_1_2.DOC
19/28
Never use solvents or aggressive detergents in order to clean the device! Rather use a soft and damp cloth.
P
lease use the original packaging if the device is to be transported.
Never remove the serial barcode from the device as this would make the guarantee void.
Please consider that unauthorized modifications on the speaker-system are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, hearing loss etc.
3.1 Features
Powered combo mixer
• Low noise 6 channel Mic/Line-mixer
• 6/8 mono inputs with XLR-sockets, +48V Phantom-power and balanced line inputs
• Integrated echo
• 2-band EQ for all inputs
• Peak-LED per mono input
• Aux-Send per channel for controlling external effectors
• Aux-Return with balanced ¼" jack socket
• Separate Main Mix and headphones outputs
• Tape inputs and outputs
• 7-band-equalizer for fine-tuned sound
• Precise 5-LED meter
• Output power 2 x 200 W/4 Ohms
4. INSTALLATION
Install the device on a solid, plane, anti-slip, vibration-free, oscilation-free and fire-resistant surface.
Make sure that the power switch is set to OFF. Before you connect the devices, all units have to be switched
off.
4.1 Inputs
A good cable run improves the sound quality remarkably. Input cables should be short and direct, since high
frequencies will mostly be absorbed if the cables are unnecessarily long. Besides that a longer cable may
lead to humming and noise trouble. If long cable runs are unavoidable, you should use balanced cables.
In order to obtain highest sound quality, only use high-quality cables for connecting the devices. Make sure
that the cables are properly fixed.

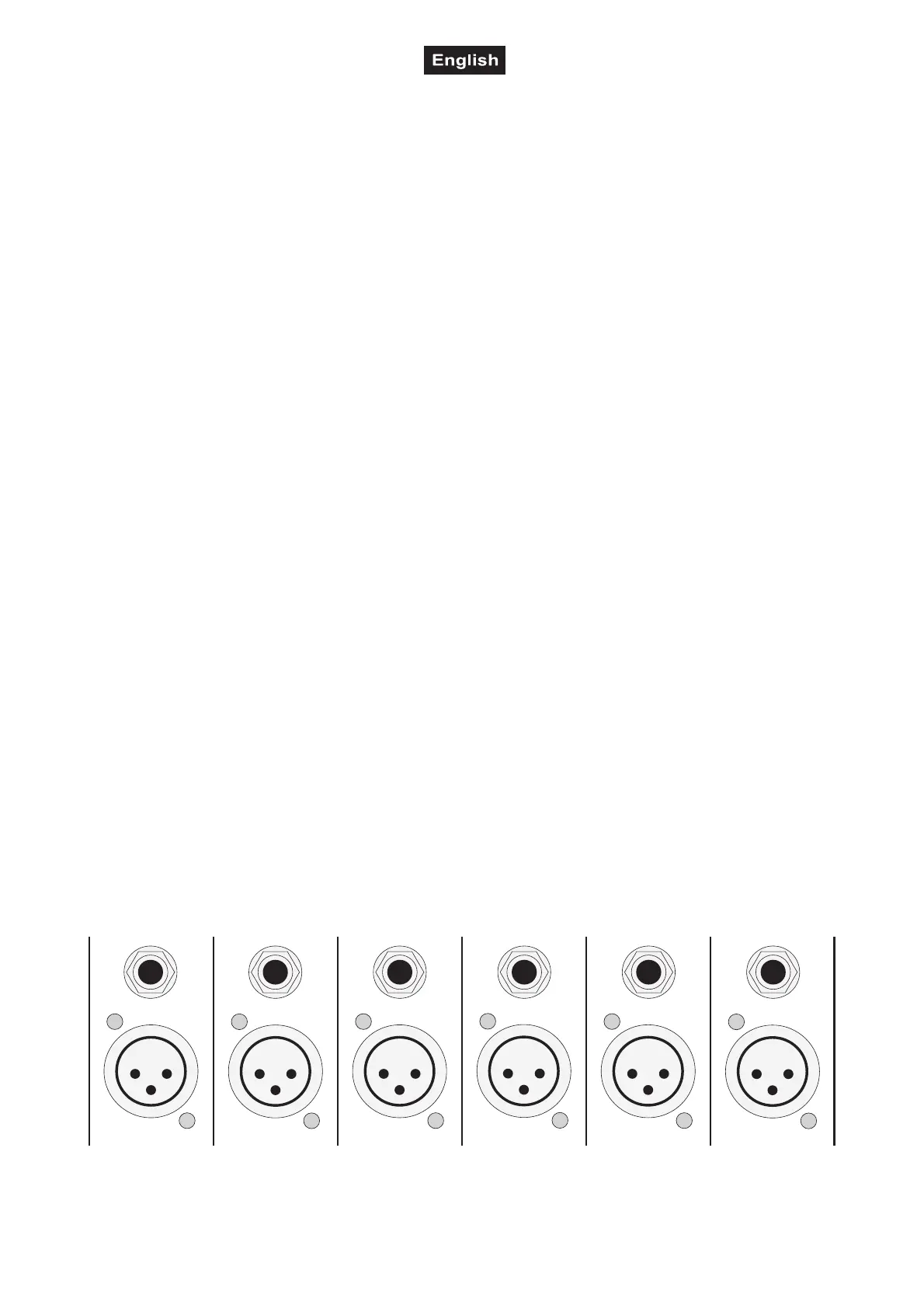

MIC
MIC MIC MIC MIC MIC
LINE
LINE LINE LINE LINE LINE
At the mono input channels, the microphone signals are connected via the XLR-sockets, the line-signals via
the jack sockets.
Please note: you must only connect one kind of signal to a mono channel – either mic or line.
