OMPHOBBY M4 MAX - 2-5 Landing Gear and FC Mount Assembly

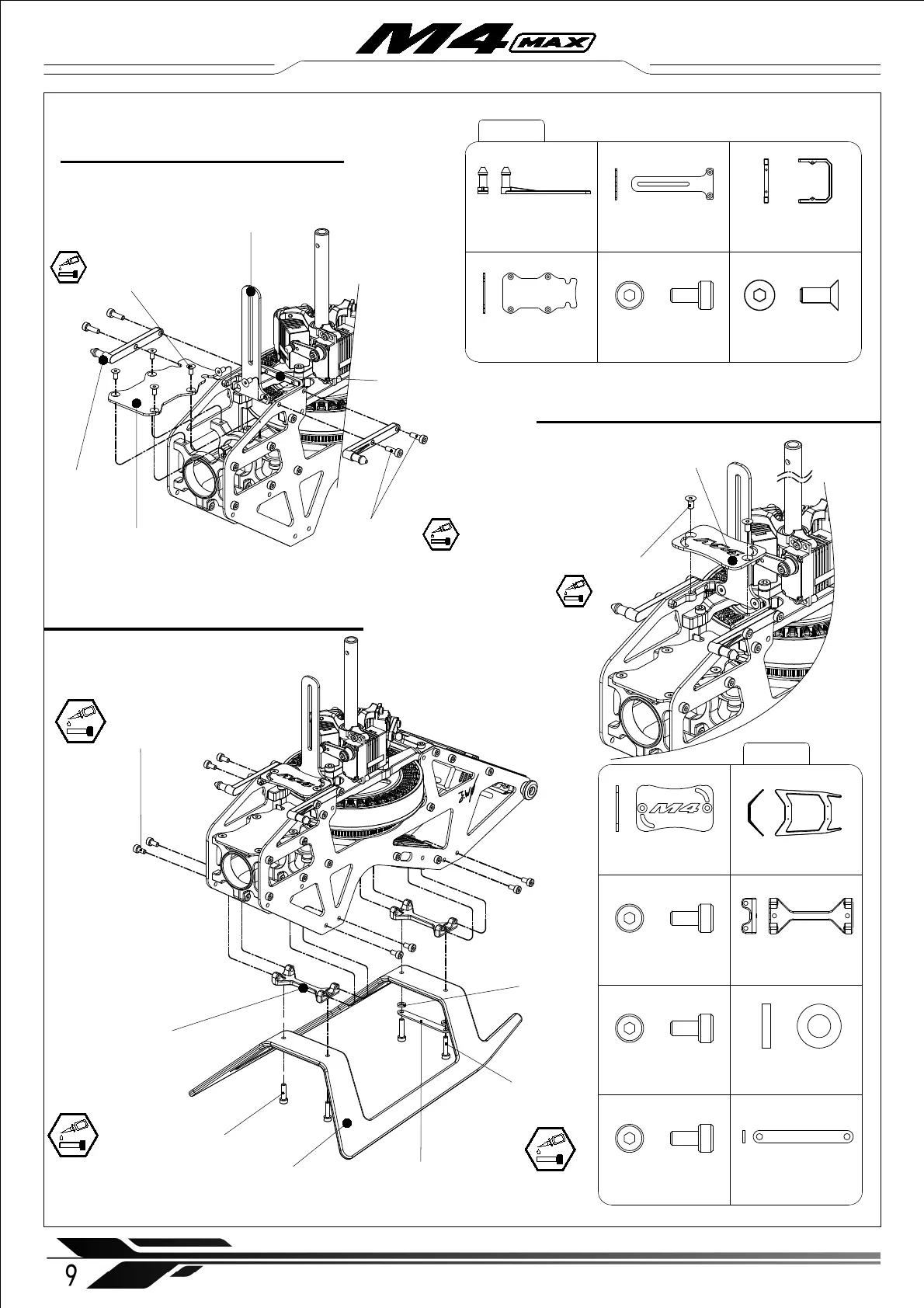

2-5 Landing gear and flight controller
mount assembly
Swashplate Guidance
Mount ( × 1)
Flight Control Mounting
Plate (×1)
Swashplate Guidance
Plate (×1)
Countersunk head
hexagon socket screw
M2.5x5mm ( × 6)
Canopy Mounting
Post (× 2 )
Socket cap screw
M2.5x8mm ( × 4)
Socket cap screw
M2.5x10mm ( × 2)
Socket cap screw
M2.5x12mm ( × 2)
Landing Skid
Mount set ( × 2)
Canopy support
brace ( × 1)
Put note that heat shrink is preinstalled
X Landing gear ( × 1)
※ Attach the landing skid
mount to the side frame
before installing the landing
gear.
Countersunk head
hexagon socket screw
M2.5x5mm ( × 2)
Receiver Mounting
Plate (×1)
Socket cap screw
M2.5x5mm ( × 8)
M4X-205
M4X-205
9
WWW.OMPHOBBY.COM
Installation steps 安装步骤
X Landing gear ( × 1)
Receiver Mounting Plate (×1)
Landing Skid
Mount set ( × 2)
Canopy support ( × 1)
Socket cap screw
M2.5x10mm ( × 2)
Socket cap screw
M2.5x5mm ( × 8)
Socket cap screw
M2.5x12mm ( × 2)
Swashplate Guidance Plate (×1)
Flight Control Mounting Plate (×1)
countersunk head
hexagon socket screw
M2.5x5mm ( × 8)
Swashplate Guidance Mount ( × 1)
Canopy Mounting Post (× 2 )
Socket cap screw
M2.5x8mm ( × 4)
Shim
∅ 2.6x ∅ 5x1mm ( × 2)
Shim
∅ 2.6x ∅ 5x1mm ( × 2)
