M2 Nylon locknut (× 1)
Socket cap screw
M2x4mm ( × 2)
Ball Joint Screw - L4.65 (× 1)
Tail servo mount set (× 2)

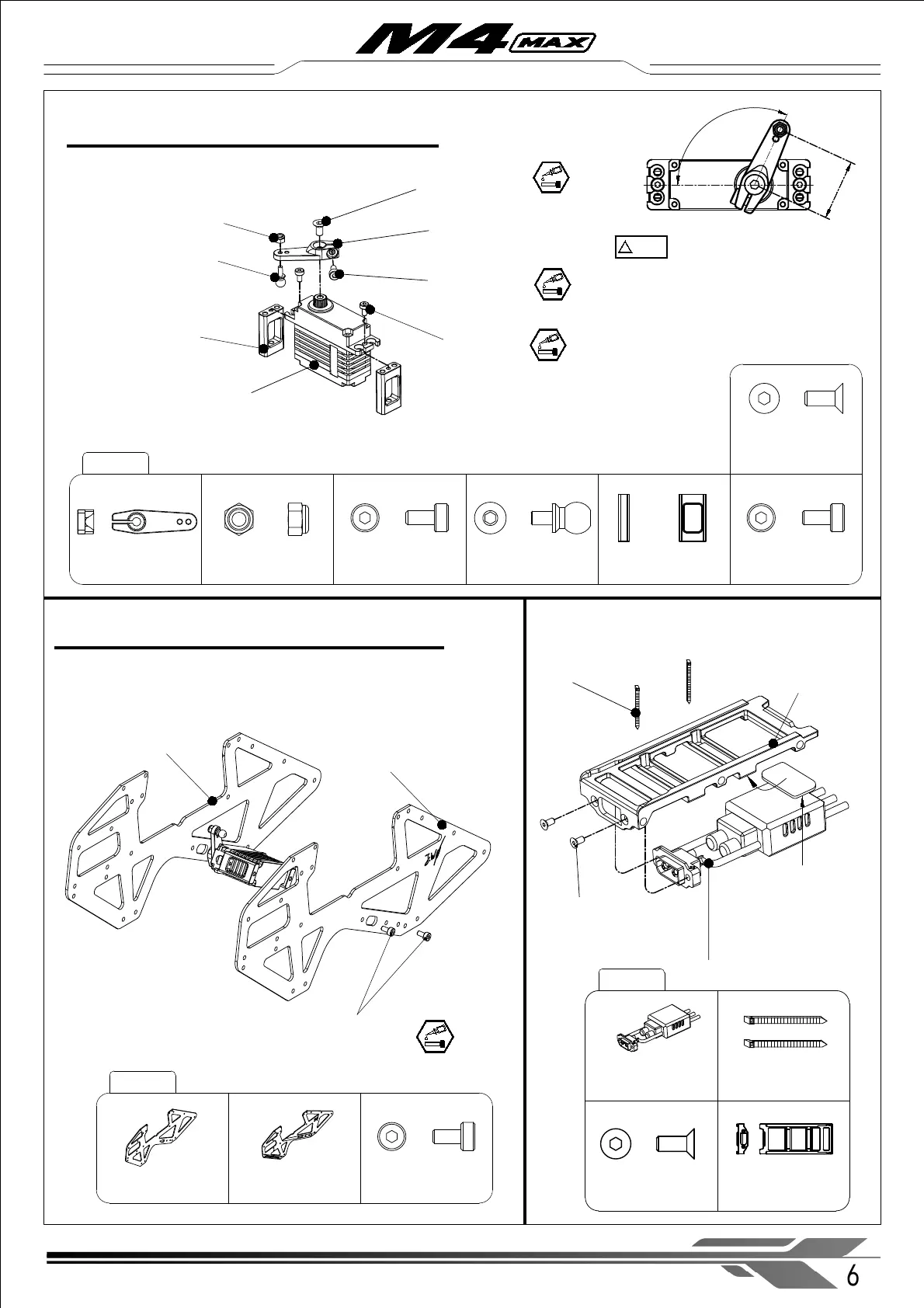

2-1 Main frame tail servo assembly
M2 Nylon locknut (× 1)
X Tail servo (× 1)
Tail servo mount set (× 2)
Socket cap screw
M2x4mm ( × 2)
Ball Joint Screw - L4.65 (× 1)
Socket cap screw
M2.5x5mm ( × 2)
X Main Frame (left) (× 1 )
M4-201
!
注意
CAUTION
※ The maximum height of the tail servo, including
servo arm, must be less than 40. 0mm. When the tail
servo arm is in the middle position, the angle relative
to the tail servo should be 115 °, as shown above.
6
WWW.OMPHOBBY.COM
X Main Frame (right) (× 1 )
Installation steps 安装步骤
X Main Frame
(left) (× 1 )
Socket cap screw
M2.5x5mm ( × 2)
X Main Frame
(right) (× 1 )
85A ESC (× 1)
Strap (× 2)
M4-202
Battery mounting
rail (× 1 )
2-2 Main frame set assembly
Strap (× 2)
Countersunk head
hexagon socket screw
M2 .5 x6mm ( × 2)
Battery mounting rail (× 1 )
Countersunk head
hexagon socket screw
M2 .5 x6mm ( × 2)
※ The ball head screw should be installed in the outer hole of the servo arm.
Socket cap screw
M2.5x5mm ( × 1)
Countersunk head
hexagon socket screw
M3x6mm ( × 1)
18mm
Mid servo metal
arm ( × 1)
M4X-103
Mid servo metal arm ( × 1)
Socket cap screw
M2.5x5mm ( × 1)
Countersunk head
hexagon socket screw
M3x6mm ( × 1)
85A ESC (× 1)
1-3 Tail servo (Mini servo ) assembly
115°
Installing the ESC, the 3M adhesive
should be adhered to the end half
of the ESC and bonded with the
bottom surface of the rail at this
point.
To Next Page
