Tail Slider Sleeve ( × 1)
Bearing
∅ 6x ∅ 10x3mm (× 2)
Tail Slider Ring ( × 1)
Tail Slider Bridge (× 1)
4.5mm Tail Slider
Joint ( × 2)
Shim
∅ 6x ∅ 7x1mm ( × 1 )
Socket cap screw
M2x6mm ( × 2)
Tail Slider Joint
Bushing ( × 2)
※ Note that the raised
face of the tail slider yoke
must face the bearing.
※ The tail slider comes pre-assembled
with thread locker from the factory, there
is no need to disassemble it again.
X Tail bellcrank Arm ( × 1)
Tail Bellcrank Base ( × 1)
Ball Joint Screw - L3 (× 1)
Socket cap screw
M2x4mm ( × 2)
Tail Bellcrank Base ( × 1)
X Tail bellcrank Arm ( × 1)
Tail Bellcrank ( × 1)
Socket cap screw
M2x4mm ( × 2)
Socket cap screw
M2x6mm ( × 2)
Ball Joint Screw - L3 (× 1)
Flanged Bearing
∅ 2x ∅ 6x3mm ( × 2)
Apply thread-lock into threaded holes
to avoid contamination of bearing.
(Already installed with retaining compound)
(Already installed with retaining compound)
(Already installed with retaining compound)
Tail Slider Ring Set (× 1)

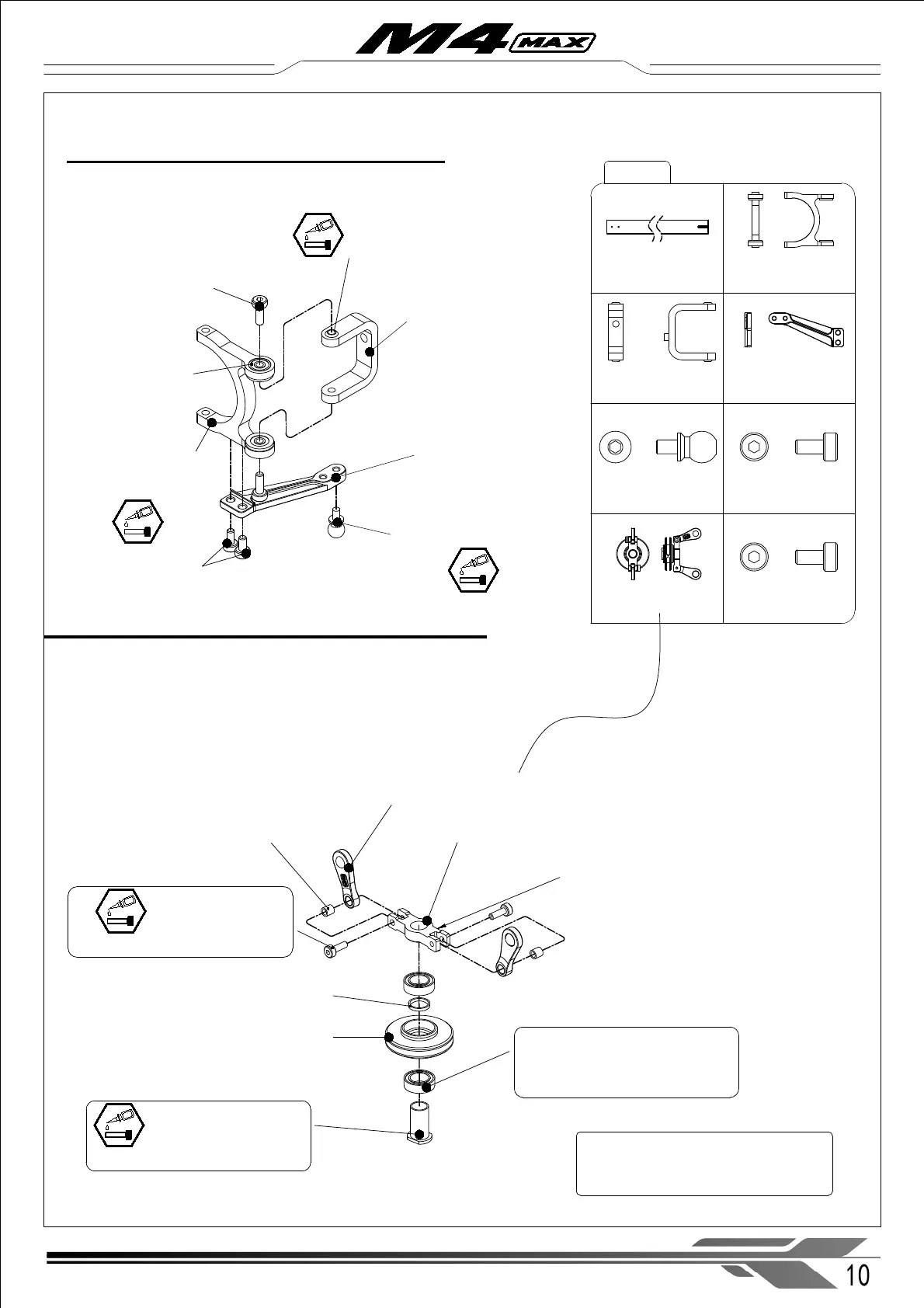

3-1 Tail Thrust Component Installation
Socket cap screw
M2x6mm ( × 2)
X Tail boom (× 1)
1 0
WWW.OMPHOBBY.COM
M4X-301
Installation steps 安装步骤
Tail Bellcrank ( × 1)
Flanged Bearing
∅ 2x ∅ 6x3mm ( × 2)
To Next Page
