OMPHOBBY M4 MAX - Tail Gearbox and Thrust Set Installation

Tail Slider Ring Set (× 1)
X Tail Fin (× 1)
X Tail boom (× 1)
X Tail Rotor Shaft ( × 1)
Flanged Bearing
∅ 5x ∅ 13x4mm (× 2)
Tail Belt 1280mm ( × 1)
X Tail Pulley Set ( × 1)

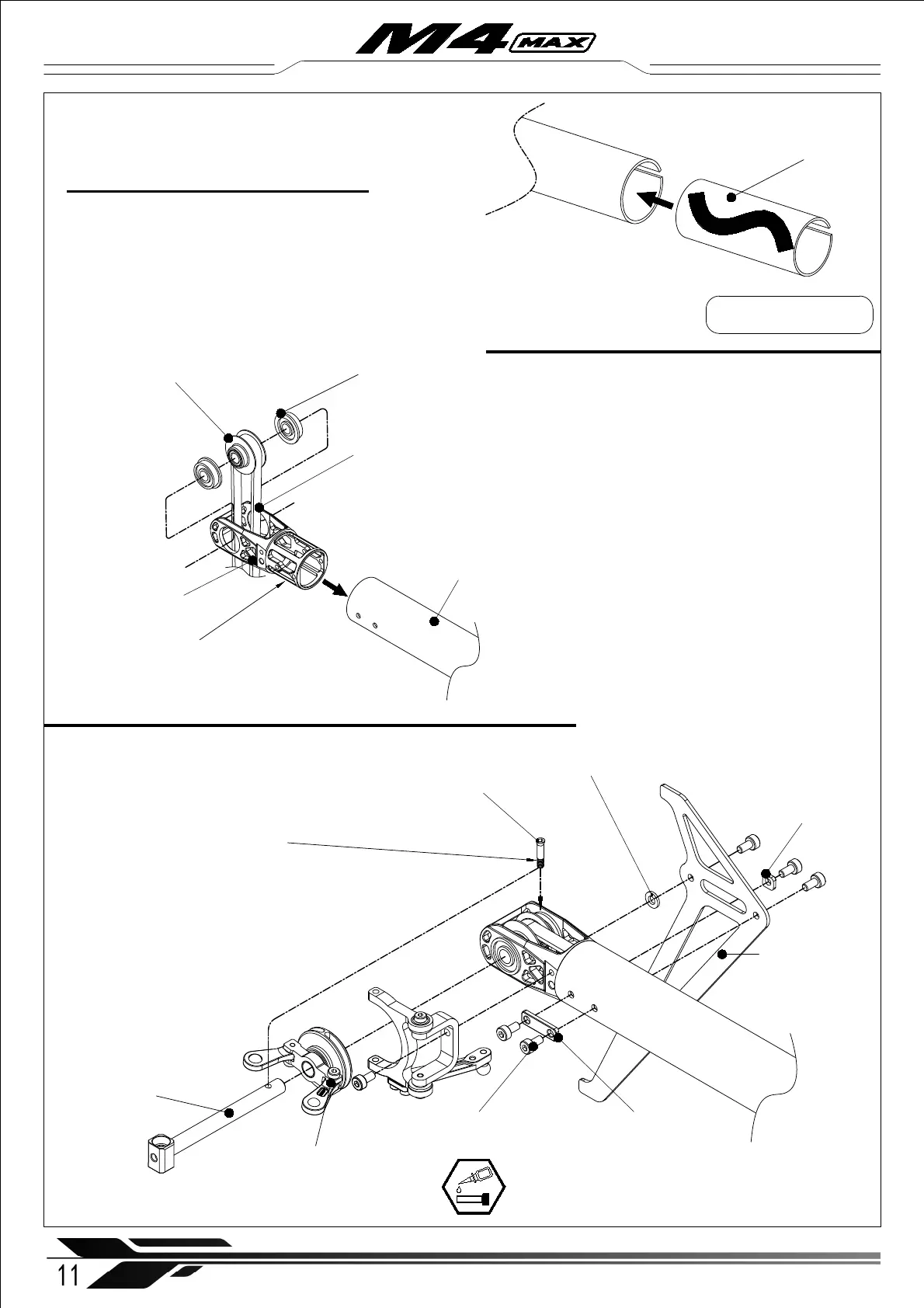

3-1 Installation of Tail Gearbox and
Tail Thrust set
11
WWW.OMPHOBBY.COM
Installation steps 安装步骤
Socket cap screw
M2.5x5mm ( × 6)
X tail boom long
washer ( × 1)
X tail pipe short
washer ( × 1)
※ Thread the timing belt and the Tail Case
through the end, aligning the four threaded holes
with the tail boom.
※ The tail shaft passes through the
tail pulley, then insert the blade screw
to secure it
X Carbon Tube Liner (× 1)
Shim
∅ 2.6x ∅ 5x0.7mm ( × 1 )
※ Apply glue to the X Carbon Tube
Liner, align it with the slot, and insert
the X Carbon Tube Liner into the tail
boom
（ Assembled and glued at the factory ）
Screw M2x10.5mm ( × 1)
Tail Case (× 1)
