OMPHOBBY M4 MAX - Tail Rotor Assembly

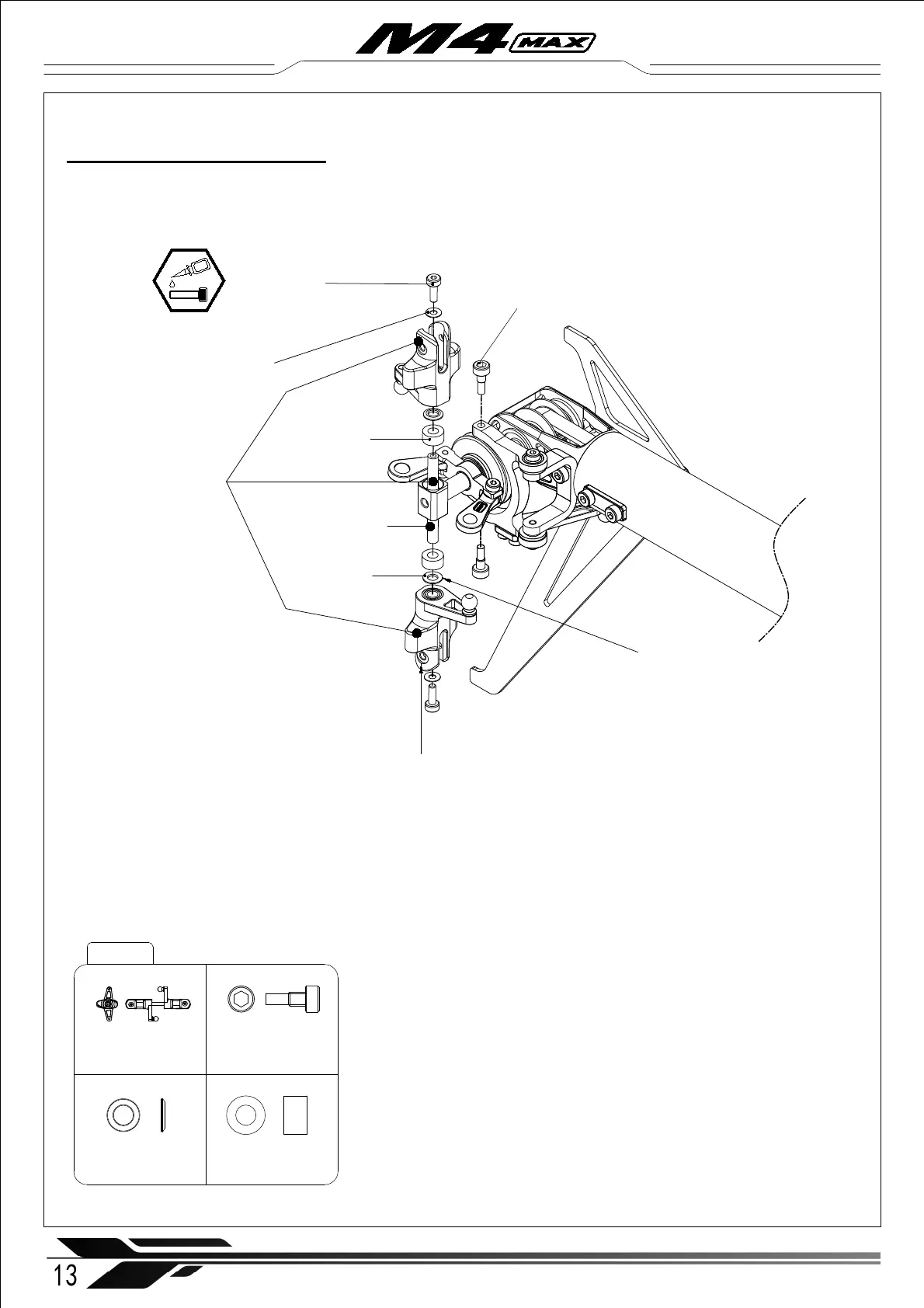

3-2 Tail rotor assembly
Tail Blade Grip Set (× 1)
Tail Bellcrank Pin ( × 2)
Tail Blade Grip
Set (× 1)
Tail Bellcrank Pin ( × 2)
Shim
∅ 2x ∅ 4.5x0.2mm ( × 2 )
Socket cap screw
M2x6mm (× 2)
※ Note: The round screw head
seat must face outward
Tail Rotor Hub
(× 1)
Tail Rubber
Damper
Shore ( × 2)
Tail Damper
Shim ( × 2)
※ The stepped side of the shim faces
outwards toward the blade grip.
Tail Rubber Damper Shore
Φ3xΦ6x3mm ( × 2)
Tail Damper Shim
Φ3xΦ5.5x0.6mm ( × 2)
M4X-302
13
WWW.OMPHOBBY.COM
Installation steps 安装步骤
