Omron 3G3JX Quick Start Guide

8 JX Quick Start Guide
INSTALLATION

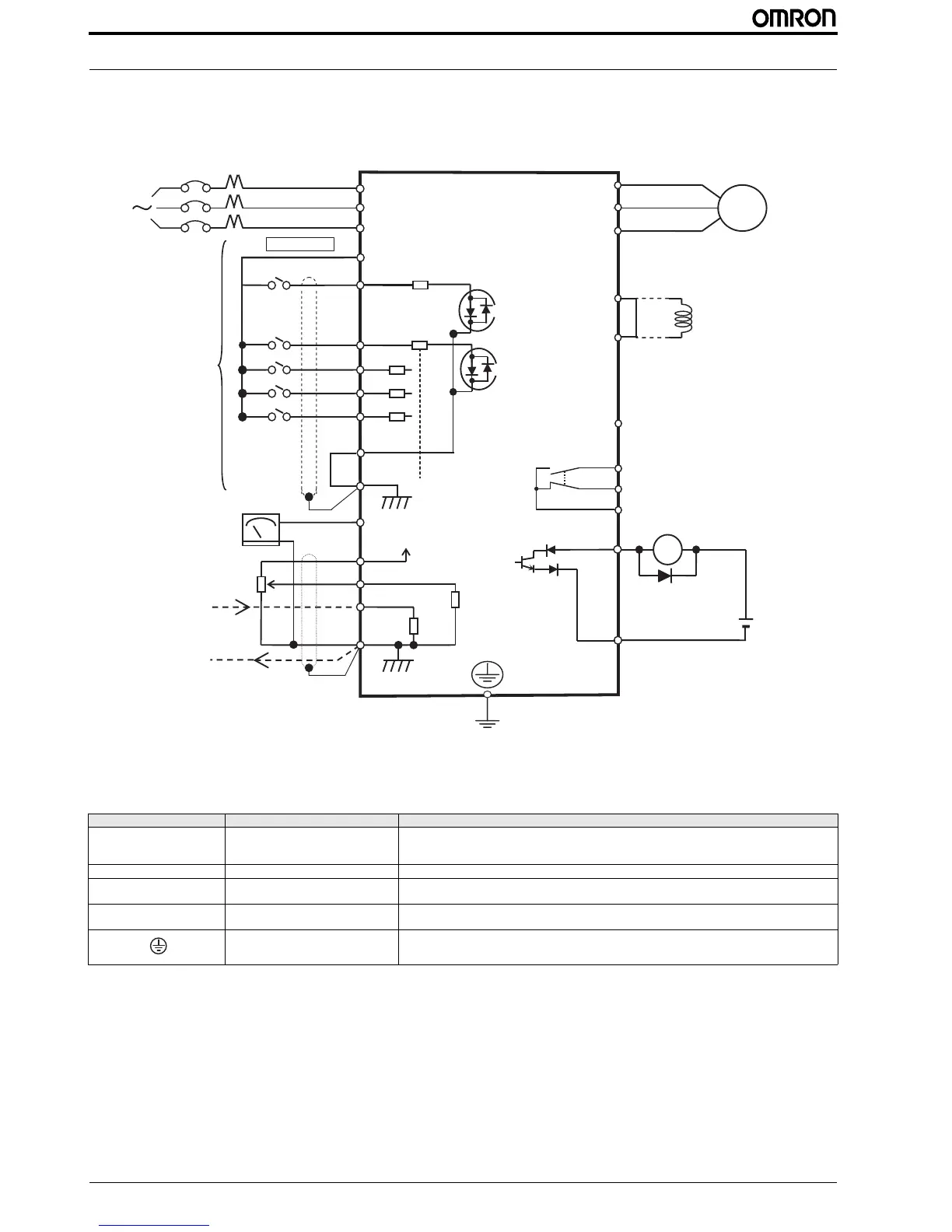

2.4 Wiring overview
2.5 Power wiring
Ter m i nal nam e Purpose Details
R/L1, S/L2, T/N/L3 Main circuit power supply unit
Used to connect line power to the drive
Drives with single-phase 200 V input power use only terminals R/L1 and N (T/L3), terminal S/L2 is not
available for these units
U/T1, V/T2, W/T3 Inverter output Used to connect the motor
PD/+1, P/+ External DC reactor terminal
Normally connected by the short-circuit bar. Remove the short-circuit bar between +1 and P/+2 when a
DC reactor is connected
P/+, N/-
Regenerative braking unit connection
terminal
Connect optional regenerative braking units (if a braking torque is required)
Grounding For grounding (grounding should conform to the local grounding code)
Inverter
R (L1)
S (L2)
T/N (L3)
PCS
P24
U/T1
V/T2
W/T3
Motor
Note:
To connect the DC reactor,
remove the short-circuit bar.
For Source logic
5
4
4.7 k
Ω
3
2
1
L
PD/+1
DC reactor
P/+
N/-
11
24 VDC
CM2
10 k Ω
250 Ω
10 VDC
L
OI
O
H
AM
Frequency
meter
Frequency
setting unit
1 to 2 k
Ω
Power supply input
4 to 20 mA DC
Relay output
Common
AL1
AL2
AL0
RY
3-phase 200 VAC
1-phase 200 VAC
3-phase 400 VAC

Omron 3G3JX Specifications

General

Model	3G3JX
Category	Inverter
Control Method	V/f control
Input Frequency	50/60 Hz
Communication Interface	RS-485 (optional)
Operating Temperature	-10 to 50°C
Humidity	20 to 90% RH (non-condensing)
Enclosure Rating	IP20
Input Voltage	200 to 240 V AC
Output Voltage	Three-phase 200 to 240 V AC
Output Frequency	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Braking Unit	Built-in
Power Range	0.1 to 15 kW
Cooling Method	Fan-cooled
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000 m
