Omron 3G3MX2 Series Connection Guide

7. Connection Procedure
2
After turning ON the power
supply, the panel displays as
shown on the right.

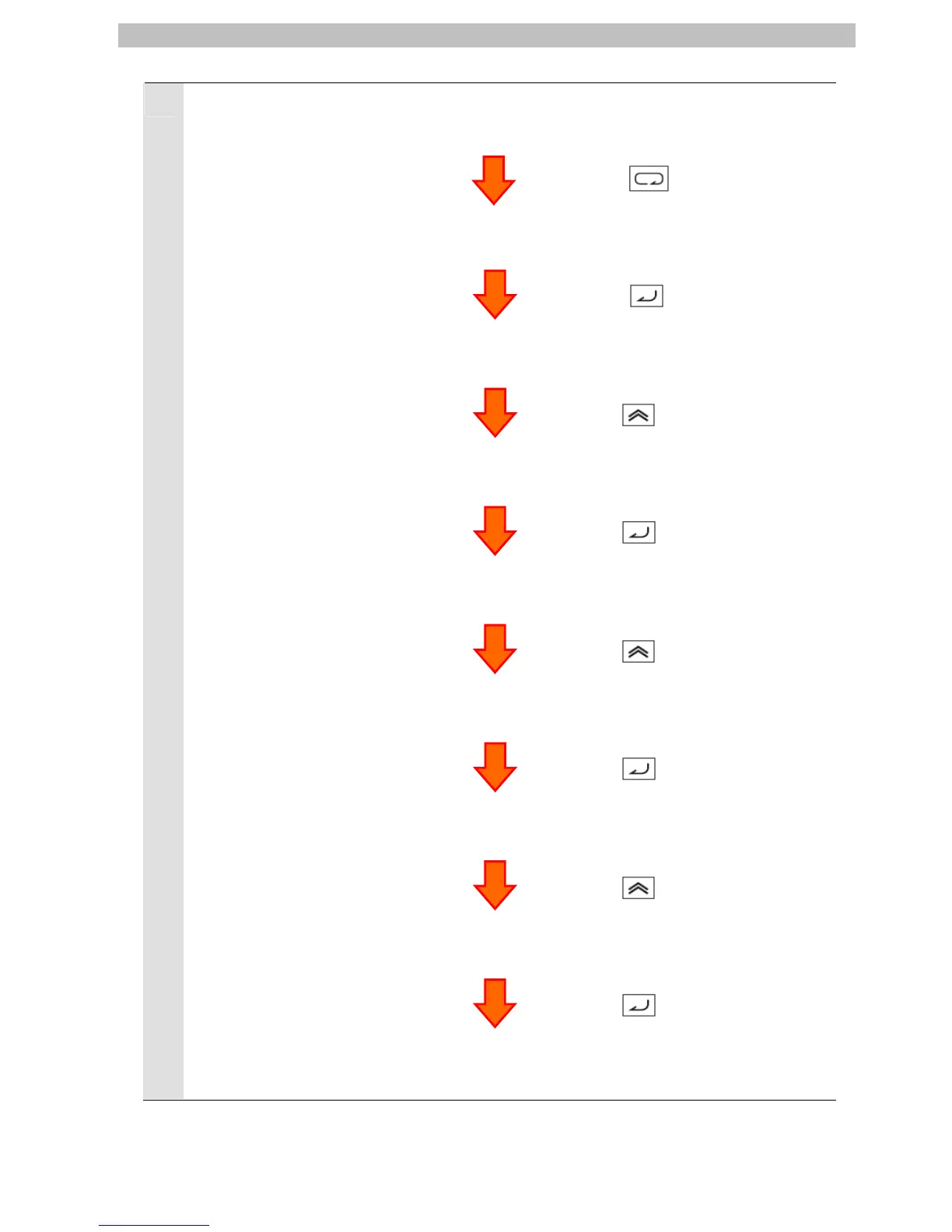

Use the procedure on the right
to set the parameter.
[A001] Frequency Reference
Selection 1: 04
[A002] RUN Command
Selection 1: 04
*Set "04" (optional board).
*When the power supply is
turned ON, the data of d001
(Output frequency monitor) is
displayed.
(In the case of factory default
value)
00.00
a001
a002
04
a001
a002
02
a004
a002
Press the
Increment Key two times.
Press the Enter Key.
Press the Increment Key once.
A
002 parameter is displayed.
The p
aramete
r is displayed again.
Press the Enter Key.
Change the data to "04".
The initial data is displayed.
The paramete
r is displayed again.
Press the Enter Key.
Change the data to "04".
Press the Increment Key twice.
The initial data is displayed.
Press the Enter Key.
A
001 parameter is displayed.
Press the
Mode Key 3 times.
A
fter turning ON the power
supply, the panel displays as
shown on the left.
13

Omron 3G3MX2 Series Specifications

General

Frequency Range	0.1 to 400 Hz
Control Method	V/f Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Safety Standard	CE, UL, cUL
IP Rating	IP20
Output Voltage	3-phase 200-240V AC
Output Frequency	0.1 to 400 Hz
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault, Short circuit
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Braking Unit	Built-in
Communication	Modbus RTU
Communication Interface	RS-485
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload
