Omron 3G3MX2 Series Connection Guide

7. Connection Procedure
4
Use the procedure on the right
to set the parameter.
[C102] Reset selection: 03.
*Set "03" (Trip reset only).
b037
c001
c102
00
03
c102

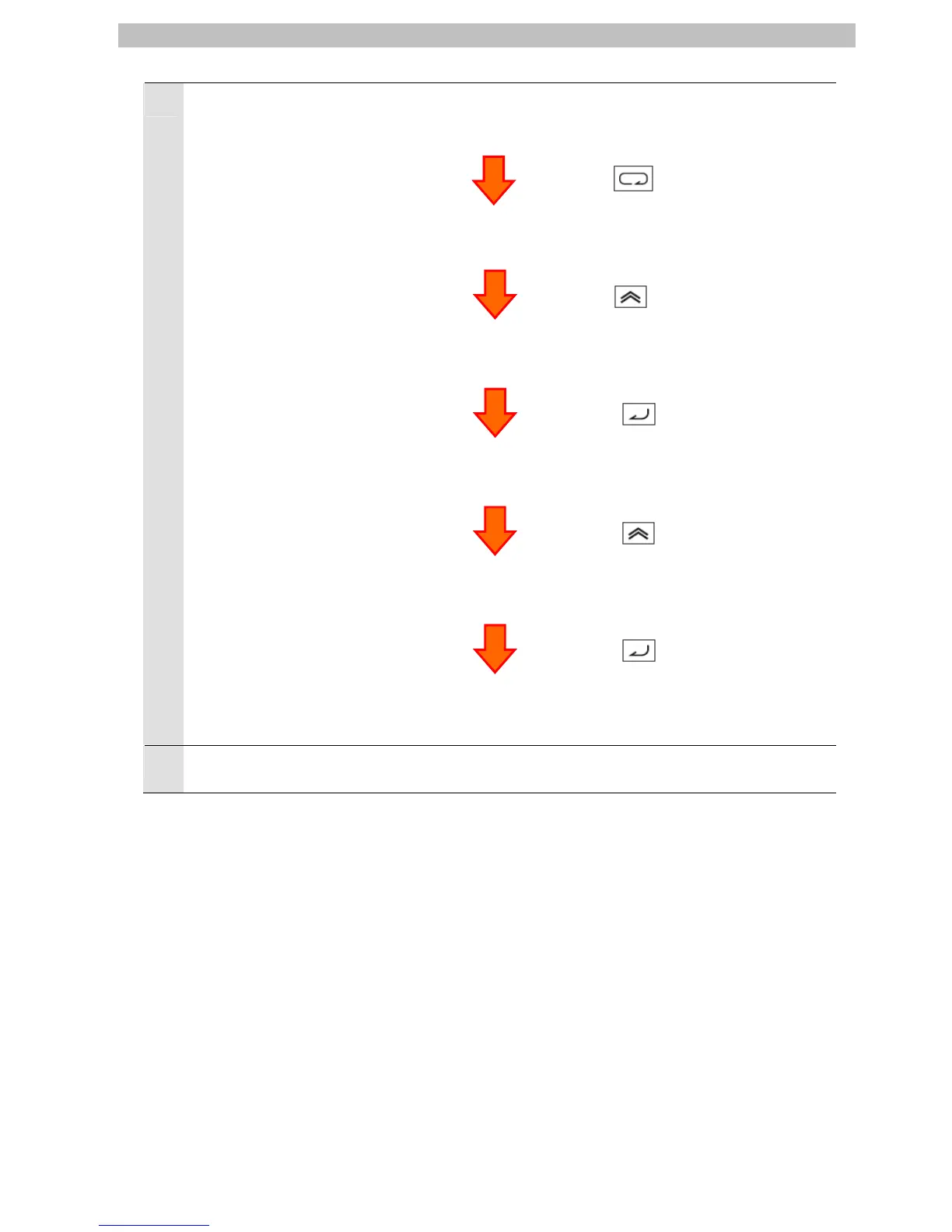

The parameter is displayed.
Press the
Mode Key once.
C001 parameter is displayed.
Press the Increment Key to
move to C102.
C102 parameter is displayed.
Press the Enter Key.
The initial data is displayed.
Press the Increment Key three
times.
Change the data to "03".
Press the Enter
Key.
The parameter is displayed again.
5
Cycle the power supply to the
Inverter.
15

Omron 3G3MX2 Series Specifications

General

Frequency Range	0.1 to 400 Hz
Control Method	V/f Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Safety Standard	CE, UL, cUL
IP Rating	IP20
Output Voltage	3-phase 200-240V AC
Output Frequency	0.1 to 400 Hz
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault, Short circuit
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Braking Unit	Built-in
Communication	Modbus RTU
Communication Interface	RS-485
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload
