Omron 3G3MX2 Series Connection Guide

7. Connection Procedure
9

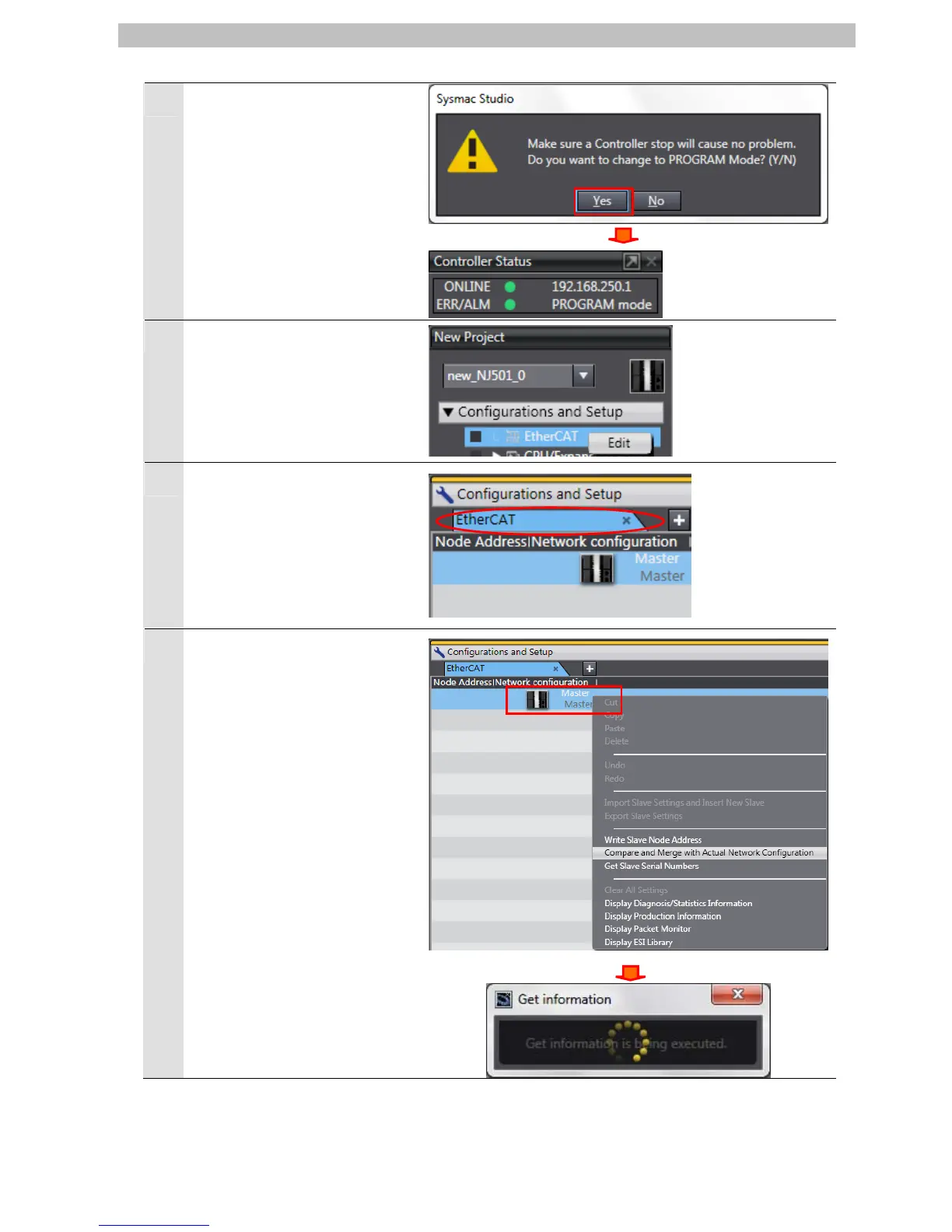

A confirmation dialog is
displayed. Click the Yes Button.
Check that the controller status
on the Toolbox was changed to
the PROGRAM mode.
10
Double-click EtherCAT under
Configurations and Setup in the
Multiview Explorer.
Or, right-click EtherCAT under
Configurations and Setup and
select Edit.
11
The EtherCAT Tab Page is
displayed in the Edit Pane.
12
Right-click the Master Icon and
select Compare and Merge
with Actual Network
Configuration.
A screen is displayed stating
"Get information is being
executed".
18

Omron 3G3MX2 Series Specifications

General

Frequency Range	0.1 to 400 Hz
Control Method	V/f Control, Sensorless Vector Control
Overload Capacity	150% for 60 seconds
Safety Standard	CE, UL, cUL
IP Rating	IP20
Output Voltage	3-phase 200-240V AC
Output Frequency	0.1 to 400 Hz
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground fault, Short circuit
Ambient Temperature	-10 to 50°C
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 65°C
Humidity	5% to 95% RH (non-condensing)
Altitude	Up to 1000 m
Braking Unit	Built-in
Communication	Modbus RTU
Communication Interface	RS-485
Cooling Method	Forced air cooling
Enclosure Rating	IP20
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload
