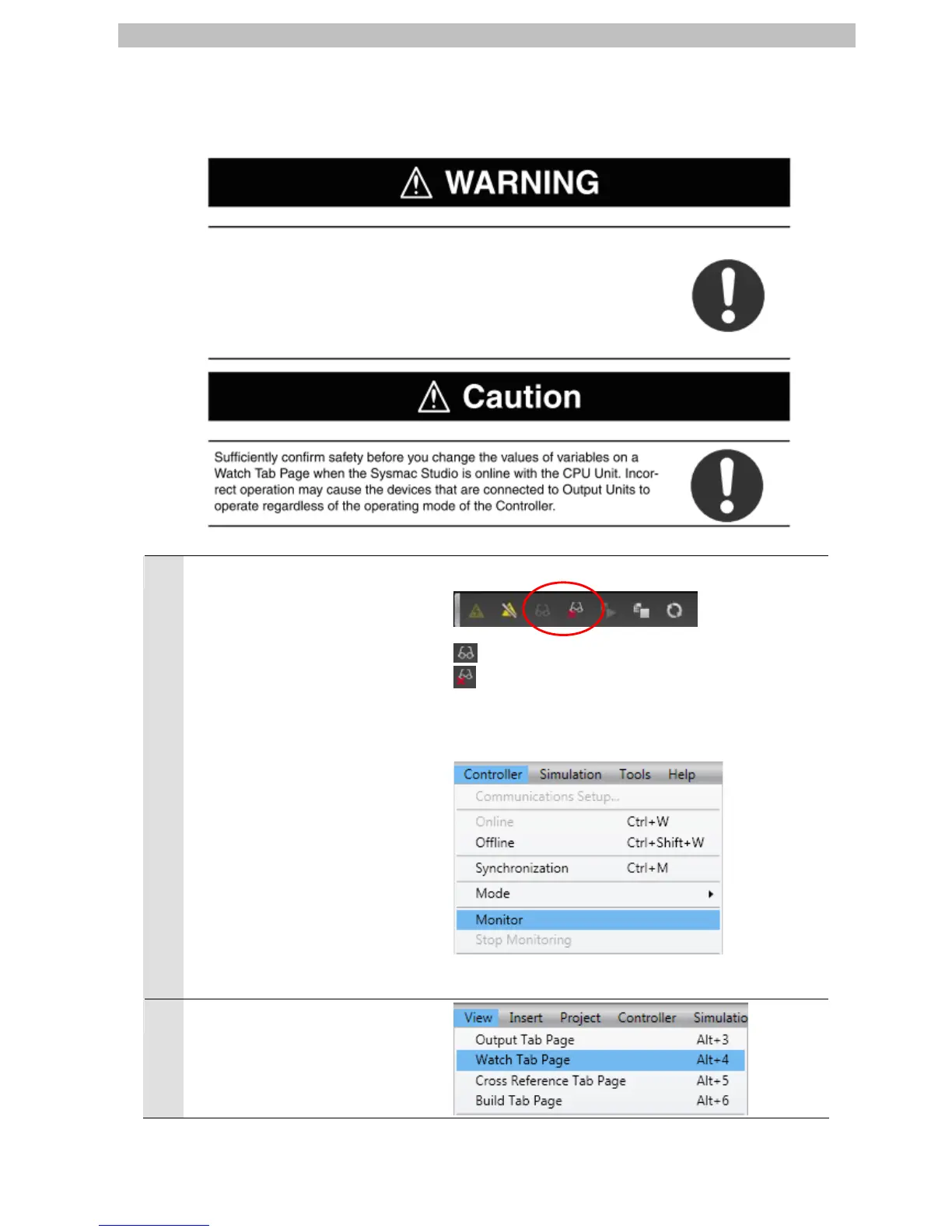

7. Connection Procedure
7.4.2. Checking Data That Are Sent and Received
Check that the correct data are sent and received.
1
The Inverter will start the operation if you perform the following
procedure. Confirm safety before you perform the procedure. If you
cannot confirm the safety, complete the check procedure in Section
7.4.1 and do not perform the procedure in this section.
When you perform the check procedure in this section, make sure to
complete all the steps and to place the operation in the safe state.
Check the Monitor Button and Stop
Monitoring Button on the toolbar of
the Sysmac Studio to see if the
Controller is in monitor status.
Check that the Monitor Button is
selected and is not selectable and
that the Stop Monitoring Button is
selectable (monitor status) as
shown in the right figure.
*If the Controller is not in monitor
status, select Monitor from the
Controller Menu of the Sysmac
Studio.
*If the Sysmac Studio is offline, go
online by following steps 1 to 4 of
7.3.2.
Monitor
Stop Monitoring
2
Select Watch Tab Page from the
View Menu.
26
