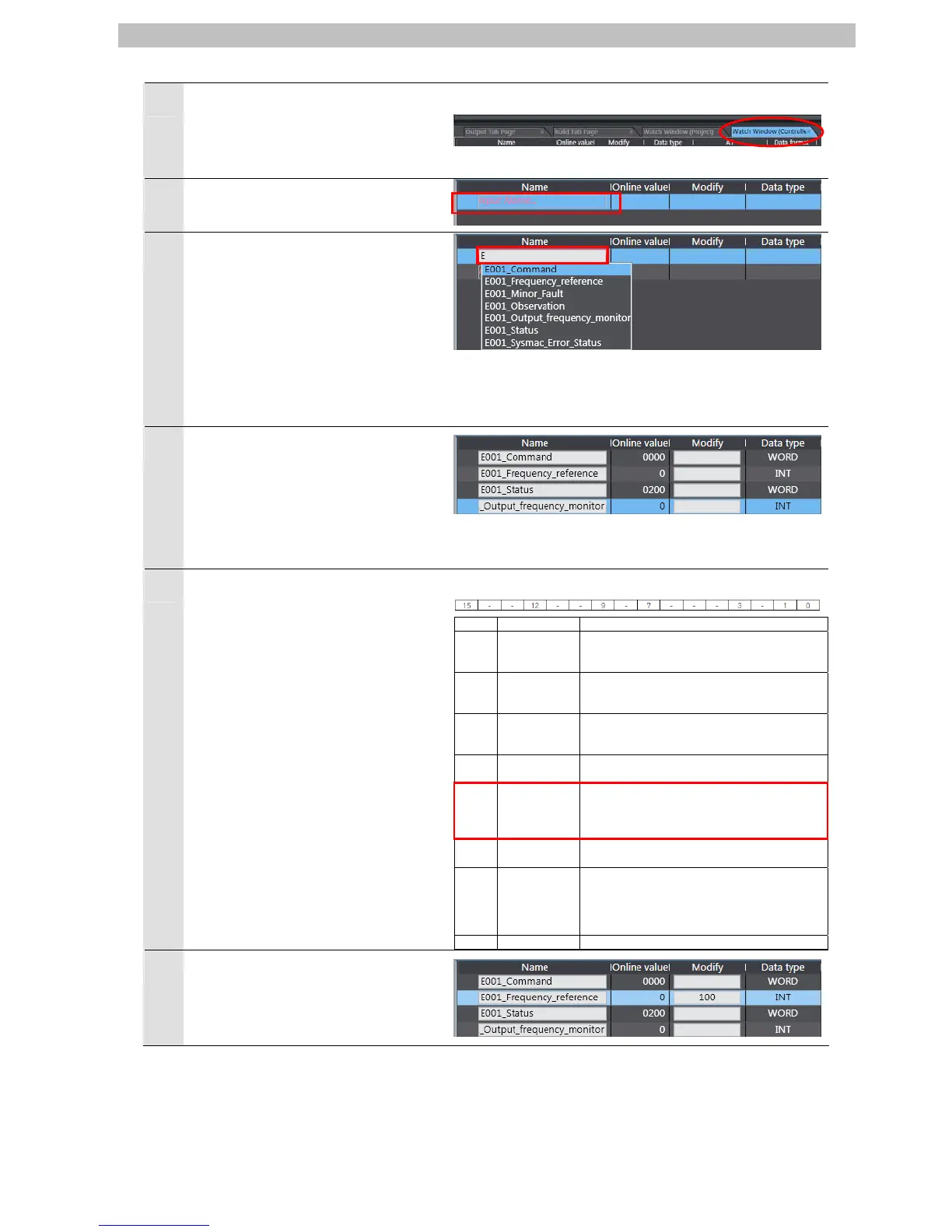

7. Connection Procedure
3
The Watch Tab Page is displayed in
the lower section of the Edit Pane.
4
Click the cell that states Input Name
at the bottom of the Watch Tab
Page.
27
5
Now, characters can be entered.
Enter the device variable name.
Enter Operation command to
Inverter: E001_Command.
Type the first character E. A list of
device variables starting with E is
displayed. Scroll the list and select
E001_Command.
Double-click E001_Command.
E001_Command is entered in the
Name Column.
6
In the same way, enter the following
variables.
Output frequency:
E001_Frequency_reference
Status: E001_Status
Output frequency monitor:
E001_Output_frequency_monitor
7
Check that the online value of
Status:E001_Status is 0200 (bit 9:
Remote is 1).
*Status bit 9: Remote
0:Local: (Operations from
EtherCAT are disabled)
1:Remote: (Operations from
EtherCAT are enabled)
Status (Status)
Bit Name Meaning
0
Forward
operation in
progress
0:Stopped/during reverse operation
1:During forward operation
1
Reverse
Operation in
progress
0:Stopped/during forward operation
1:During reverse operation
3 Fault
0:No error or trip occurred for the unit or
Inverter
1:Error or trip occurred for the unit or Inverter
7 Warning
0:No warning occurred for the unit or Inverter
1:Warning occurred for the unit or Inverter
9 Remote
0:Local (Operations from EtherCAT are
disabled)
1:Remote (Operations from EtherCAT are
enabled)
12
Frequency
matching
0:During acceleration/deceleration
1:Frequency matching
15
Connection
error between
the Optional
Unit and
Inverter
0:Normal
1:Error (Cannot update data for the Inverter. To
restore, turn the power OFF and then ON
again.)
- (Reserved) The reserved area.
8
Enter “100” in Output frequency:
E001_Frequency_reference.
